Grammer MSG 90.6PG - Page 385

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

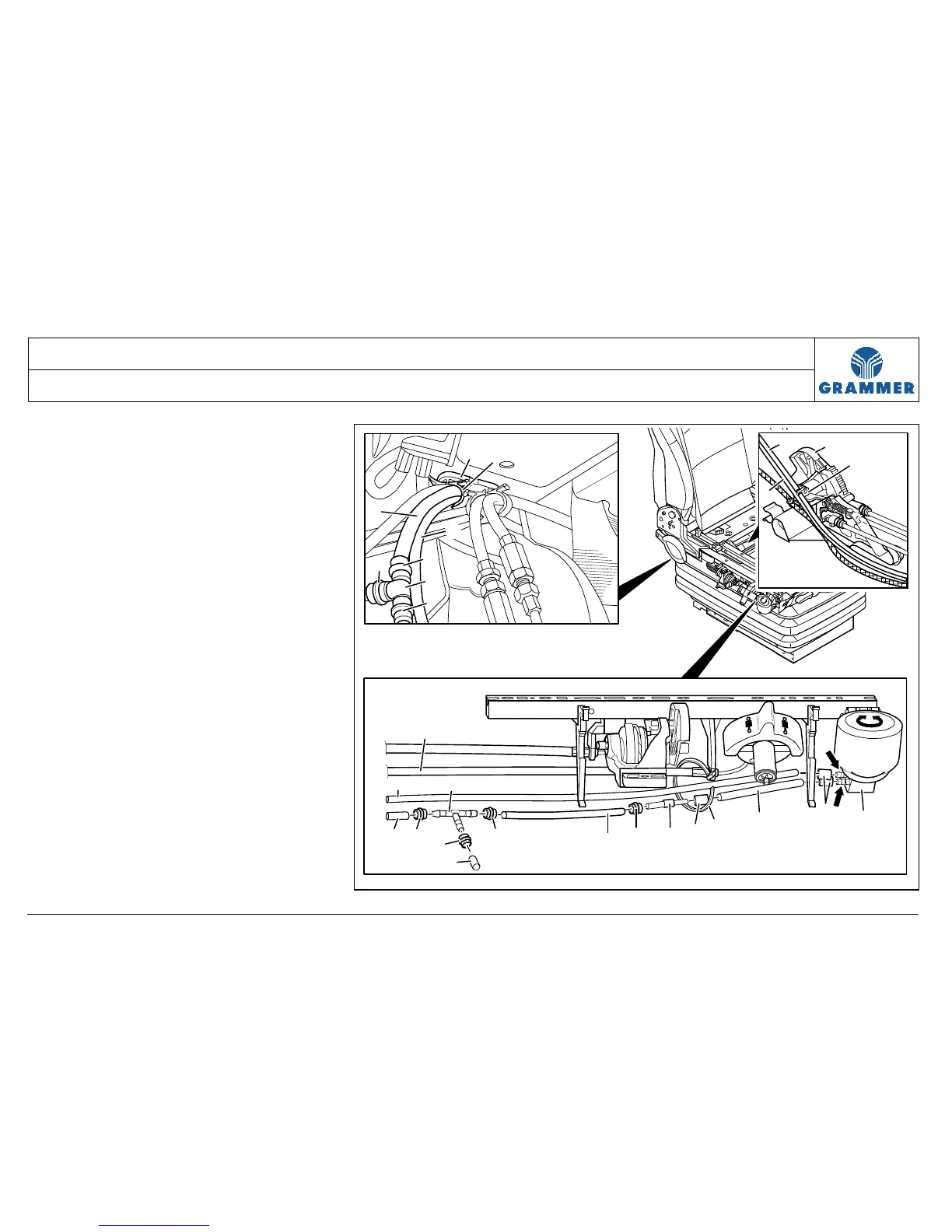

3.47.4 Air hose set for swivel – removal and installation
Page 1 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Valve (for swivel)
(2) Hose nozzle
(3) Cable tie
(4) Hose connector (reducer)
(5) Hose nozzle
(6) Air hose (short)
(7) Air hose (long)
(8) Air hose (to the cylinder)
(9) Air hose (for lumbar support, lateral
support adjustment and swivel)
(10) Air hose (for lumbar support and
lateral support adjustment)
(11) Hose connector
(12) Bowden pull wire for vertical shock
absorber adjustment
(13) Z-section
(14) Clip
9
16
15
8
5
10
12
11
8
5
59
7
4
5
6
1
2
3
13
14
8
5
5
5
11
9
2
