Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

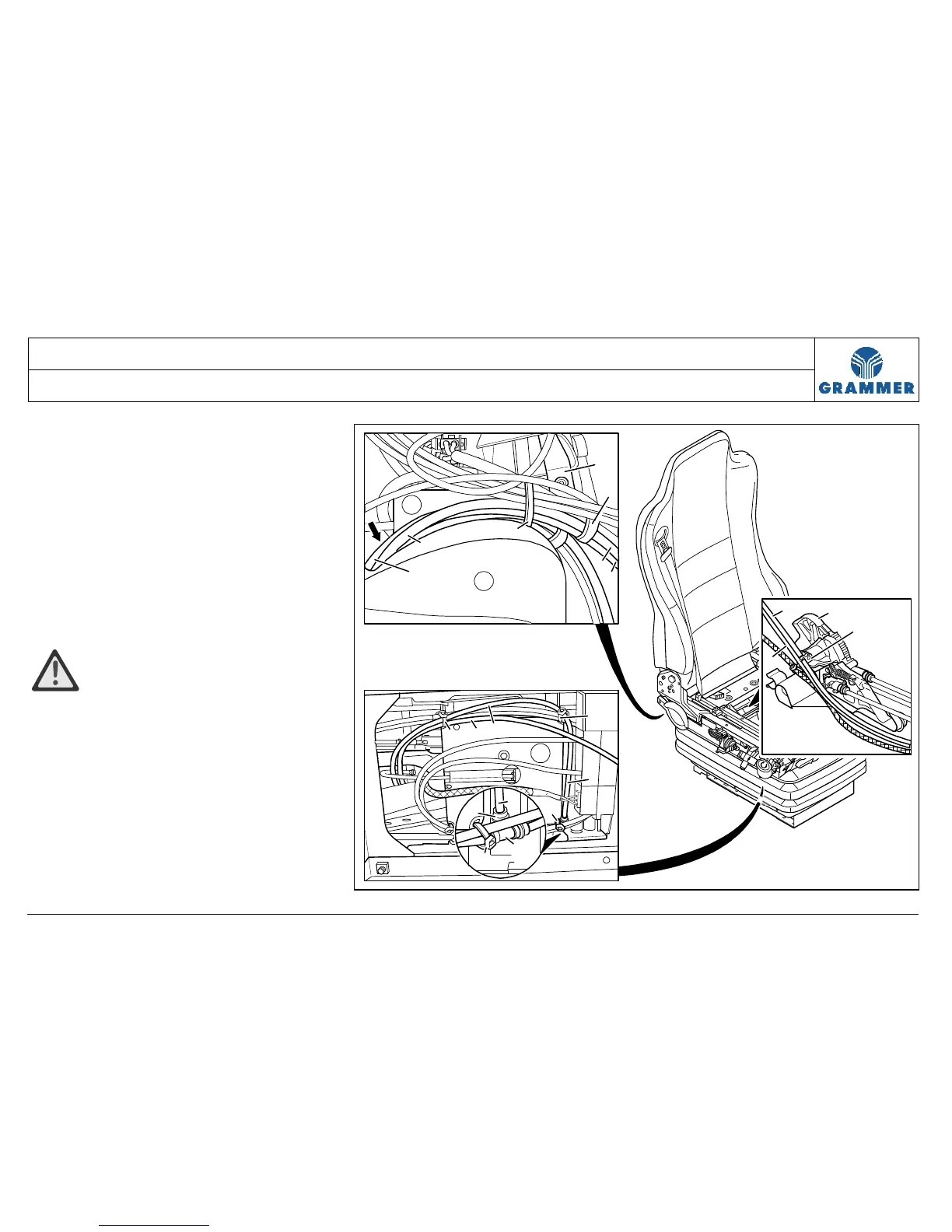

3.47.4 Air hose set for swivel – removal and installation
Page 2 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
(15) Retainer
(16) Level control
(17) Cable tie
(18) Bellows
(19) Cable tie
(20) Air spring support
WARNING Hydrostatic test!
The hydraulic test of the seat should be
performed upon installation of the air
hoses (6, 7, 8, 9, 10). To do this, apply
60 kg load to the seat for 24 hours. The
lowering within this time must not exceed
15 mm.
19
20
18
18
19
19
8
9
9
9
11
19
5
9
9
14
13
8
8
17
2264
9
16
15
8
