Grammer MSG 90.6PG - Page 387

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

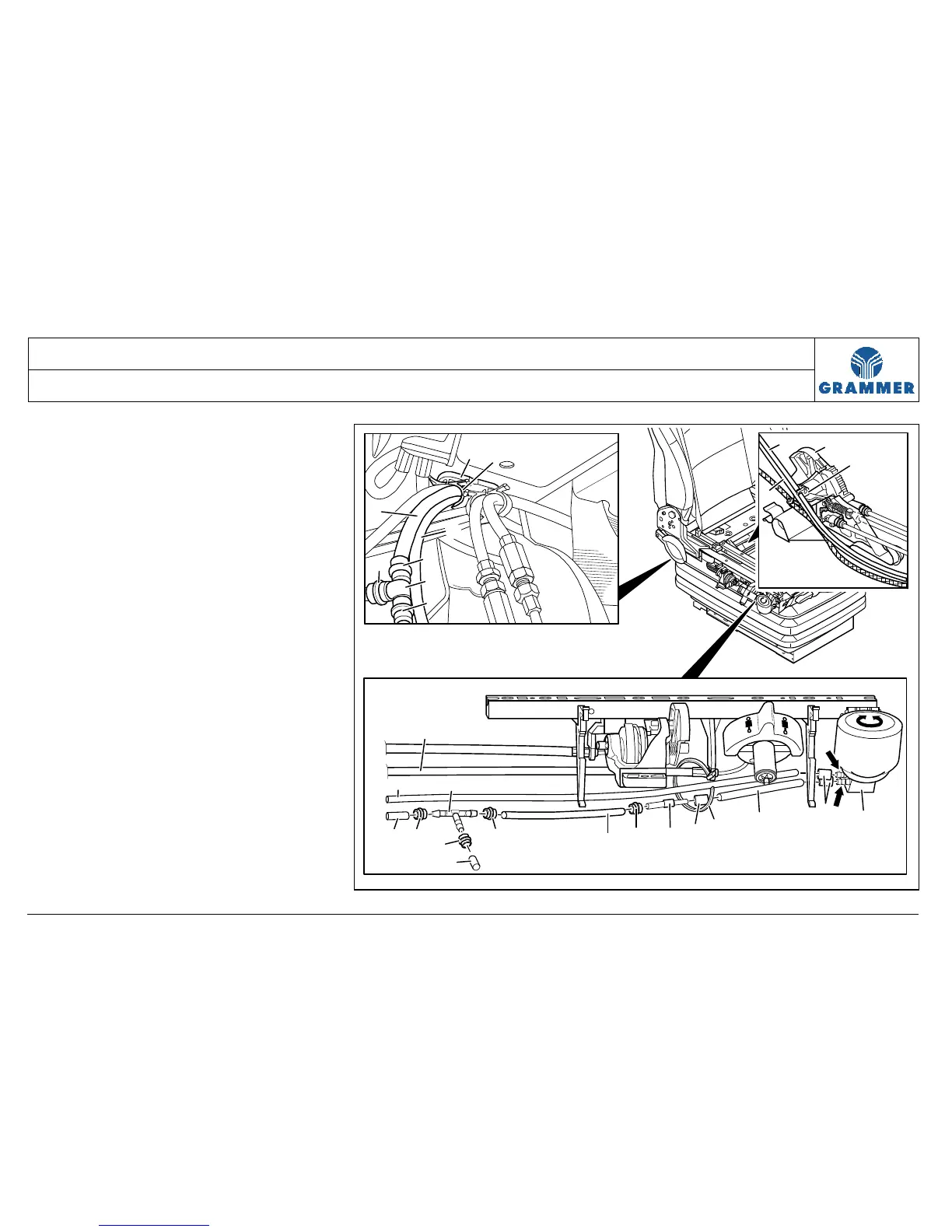

3.47.4 Air hose set for swivel – removal and installation
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the right covering in position
for repair (Chapter 3.4).
3 Carefully detach the rear covering at
the left covering (see Chapter 3.5).
4 Detach the bellows at the supports
(see Chapter 3.6).
5 Remove the swivel (see
Chapter 3.47.1).
Note:
Do not remove the supporting
structure and the fore/aft adjustment at
the swivel.
6 Remove the air hose to the cylinder at
the cylinder (see Chapter 3.47.2).
9
16
15
8
5
10
12
11
8
5
59
7
4
5
6
1
2
3
13
14
8
5
5
5
11
9
2
