Grammer MSG 90.6PG - Page 388

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

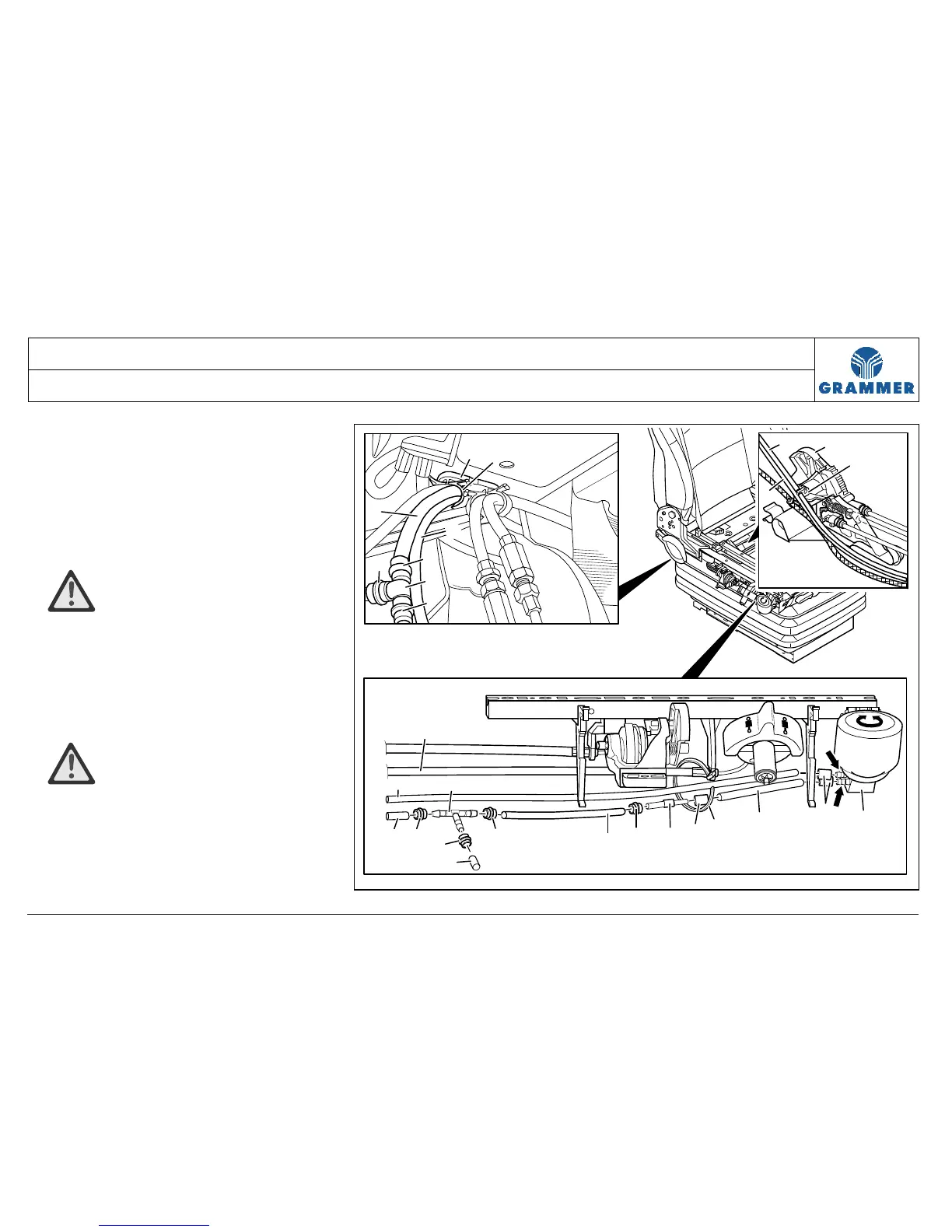

3.47.4 Air hose set for swivel – removal and installation
Page 4 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
7 Remove the air hose for lumbar
support and lateral support adjustment
at the valve for lateral support
adjustment (see Chapter 3.23).
Removal and installation
8 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.
9 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the air hoses (6, 7, 8,
9, 10).
9
16
15
8
5
10
12
11
8
5
59
7
4
5
6
1
2
3
13
14
8
5
5
5
11
9
2
