Grammer MSG 90.6PG - Page 389

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

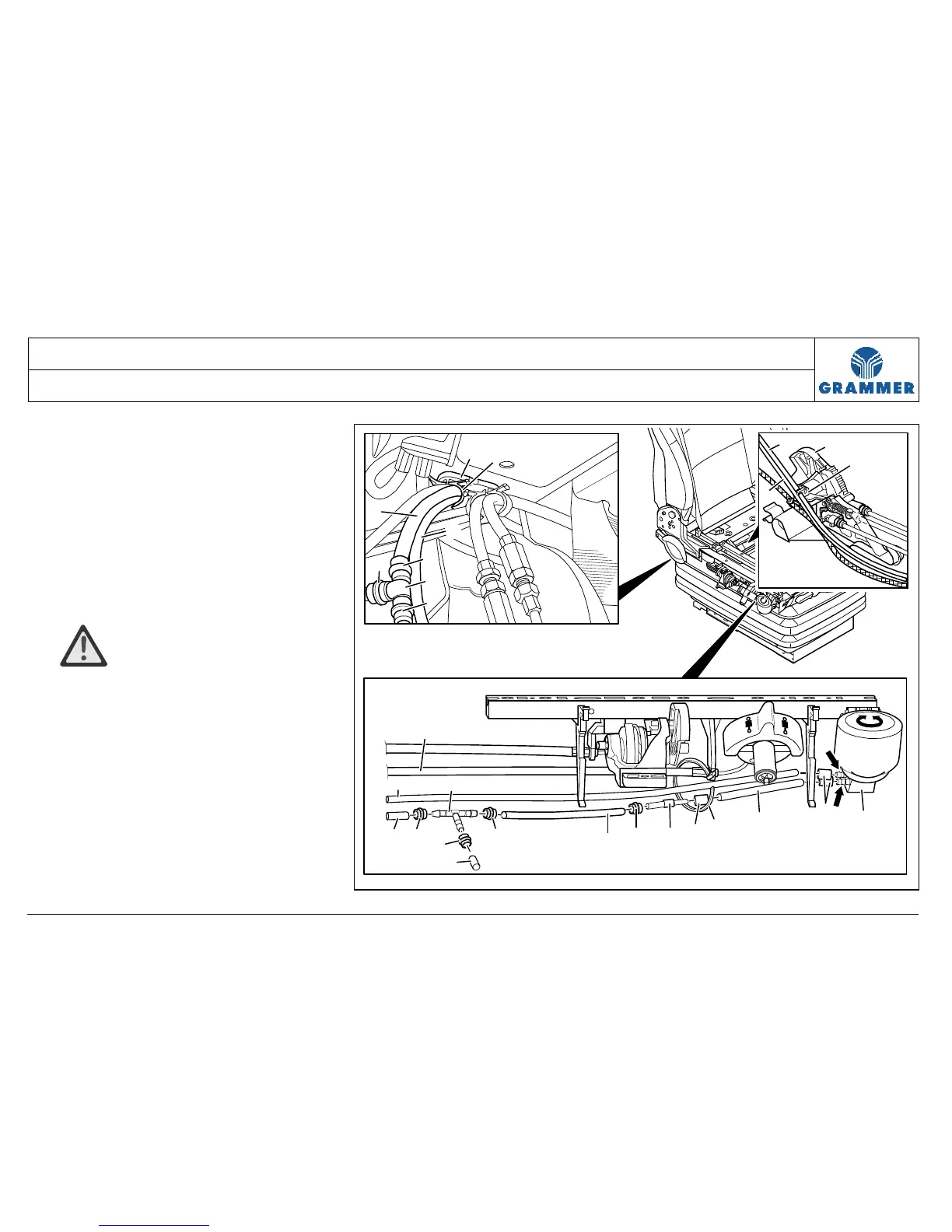

3.47.4 Air hose set for swivel – removal and installation
Page 5 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
10 Mark the point where the air hose (8)
and the connection piece (4) are
fastened to the Bowden pull wire (12)
for vertical shock absorber
adjustment by means of cable tie (3)
and remove the cable tie (3).
11 Pull off the hose nozzles (2, 5) and
push them backwards over the air
hoses (6, 7, 8, 9, 10).
12 WARNING Damage!
Take care not to damage the
connections (mandrel profiles) at the
valve (1) and the connection pieces
(4, 11).
Pull off the air hoses (6, 7, 8, 9, 10)
at the connections (arrows) and
connection pieces (4, 11).
9
16
15
8
5
10
12
11
8
5
59
7
4
5
6
1
2
3
13
14
8
5
5
5
11
9
2
