Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.47.4 Air hose set for swivel – removal and installation
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
Notes:
• For easier removal, carefully
slit the
air hoses (6, 7, 8, 9, 10) by means of
a sharp knife.
• Do not use a screwdriver or similar
tools to lift off the air hoses (6, 7, 8,
9, 10) at the connections (arrows)
and connection pieces (4, 11).
Installation note:
Push the air hoses (6, 7, 8, 9, 10)
completely onto the connections
(arrows) and connection pieces
(4, 11) by exerting pressure.

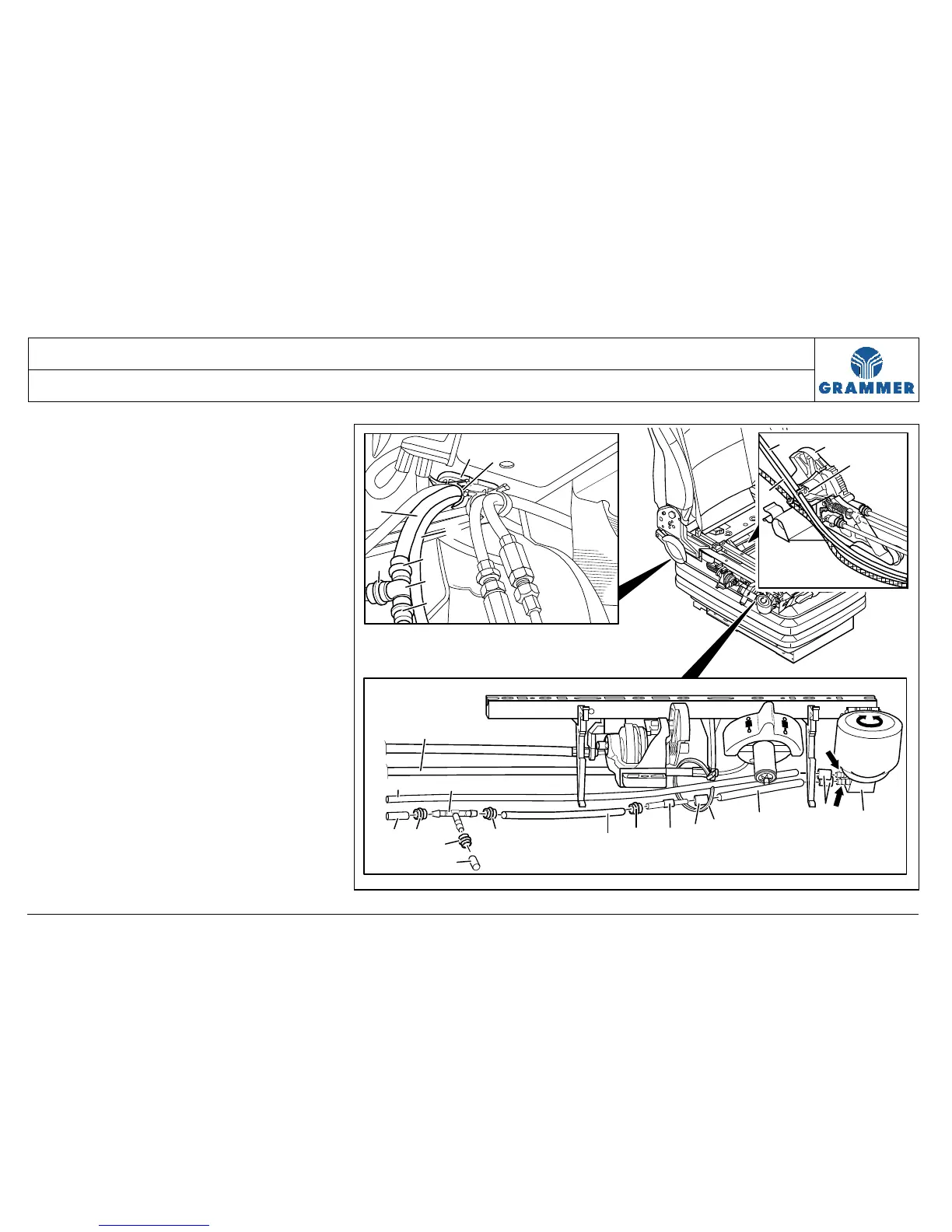

13 Remove the air hoses (6, 7, 10).
14 Pull off the hose nozzles (2, 5) at the
air hoses (6, 7, 8, 9, 10).
15 Pull out the clip (14) at the Z-section
(13) and detach the air hoses (8, 9)
at the clip (14).
9
16
15
8
5
10
12
11
8
5
59
7
4
5
6
1
2
3
13
14
8
5
5
5
11
9
2
