3.48 Bowden pull wire and bearing for optional backrest adjustment –
removal and installation (delivery option)
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
ATTENTION Noise!
When driving out the blind rivets, make
sure that the residues of the blind rivets
do not fall into the seat.

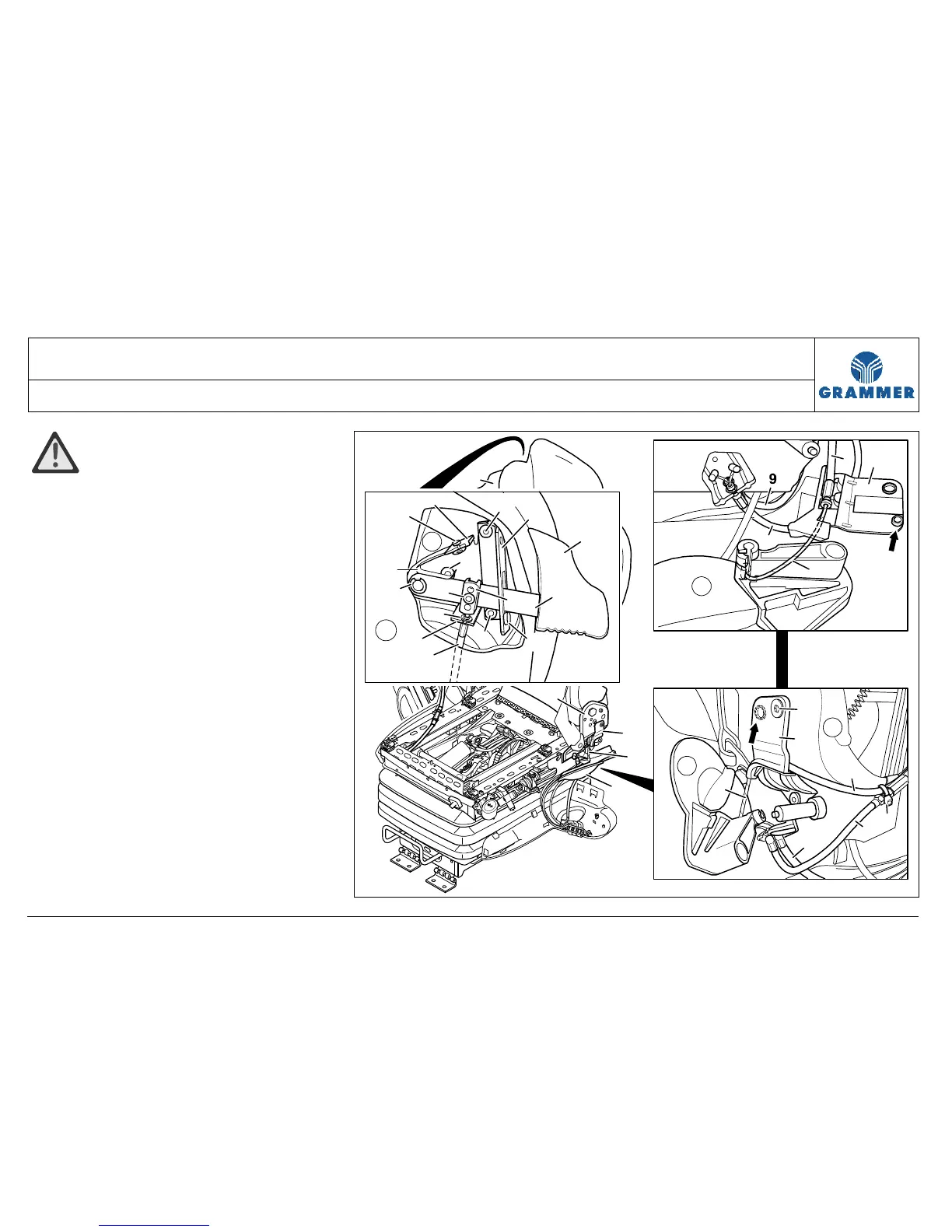

1 Remove the backrest cover (see
Chapter 3.26).
2 Lift off the seat cushion in position for
repair (Chapter 3.1).
3
Remove the left covering in position for
repair (Chapter 3.4).
4 Carefully detach the rear covering at
the right covering (see Chapter 3.5).
2
4
1
3
15
14
16
13
18
1
10
21
11
17
19
20
5
22
13
23
10
12
15
1
1
8
9
7
1
1
2
8
3
3
4
2
6
