Grammer MSG 90.6PG - Page 398

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.48 Bowden pull wire and bearing for optional backrest adjustment –
removal and installation (delivery option)
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

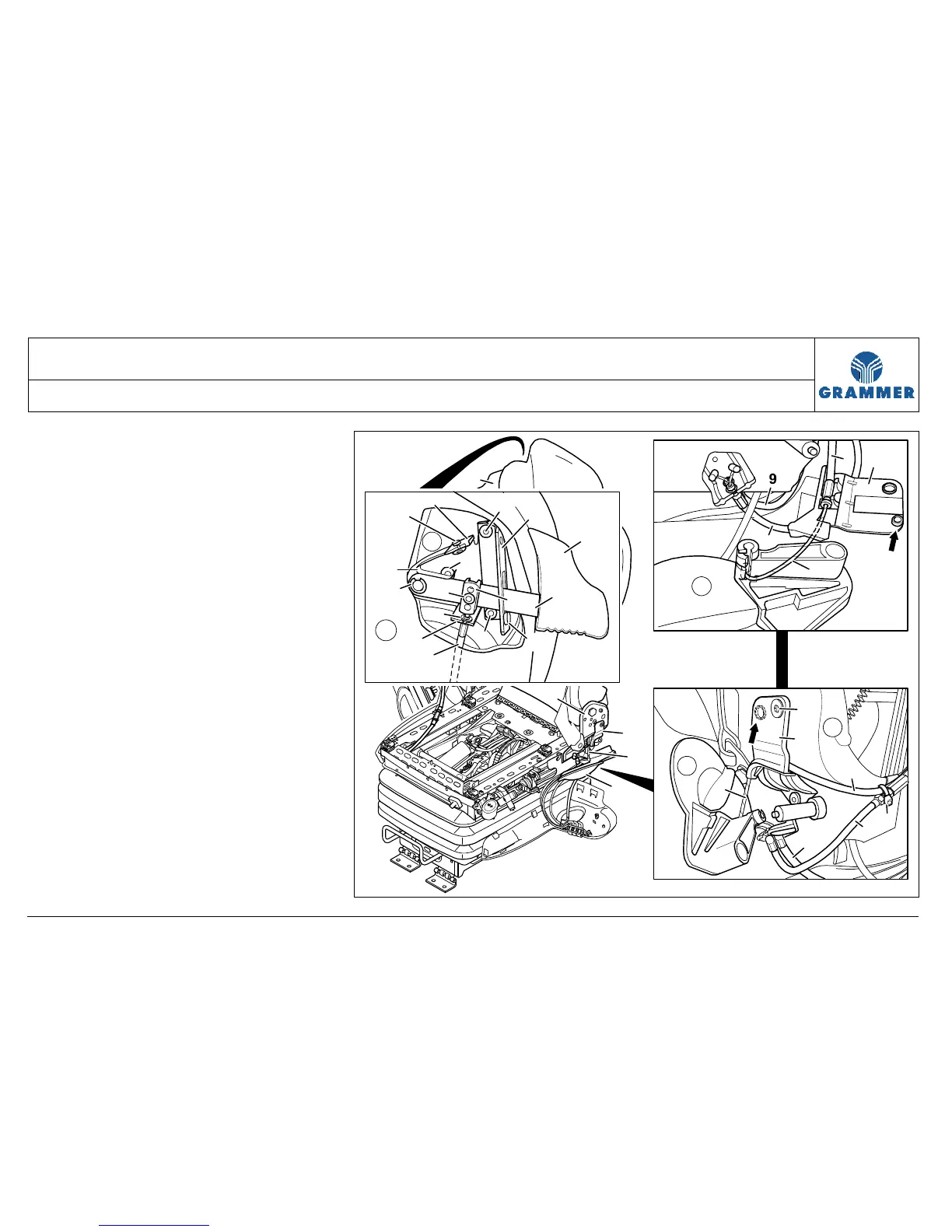

11 Loosen the lock washer (21) at the
Bowden pull wire for optional
backrest adjustment (1).
12 Detach the Bowden pull wire for
optional backrest adjustment (1) at
the bearing (10).
13 Bore off the rivet head and drive out
the blind rivet (18) at the holder (16).
14 Detach the Bowden pull wire for
optional backrest adjustment (1) at
the holder (16) and remove the
holder (16).
