Grammer MSG 90.6PG - Page 397

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.48 Bowden pull wire and bearing for optional backrest adjustment –
removal and installation (delivery option)
Page 5 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

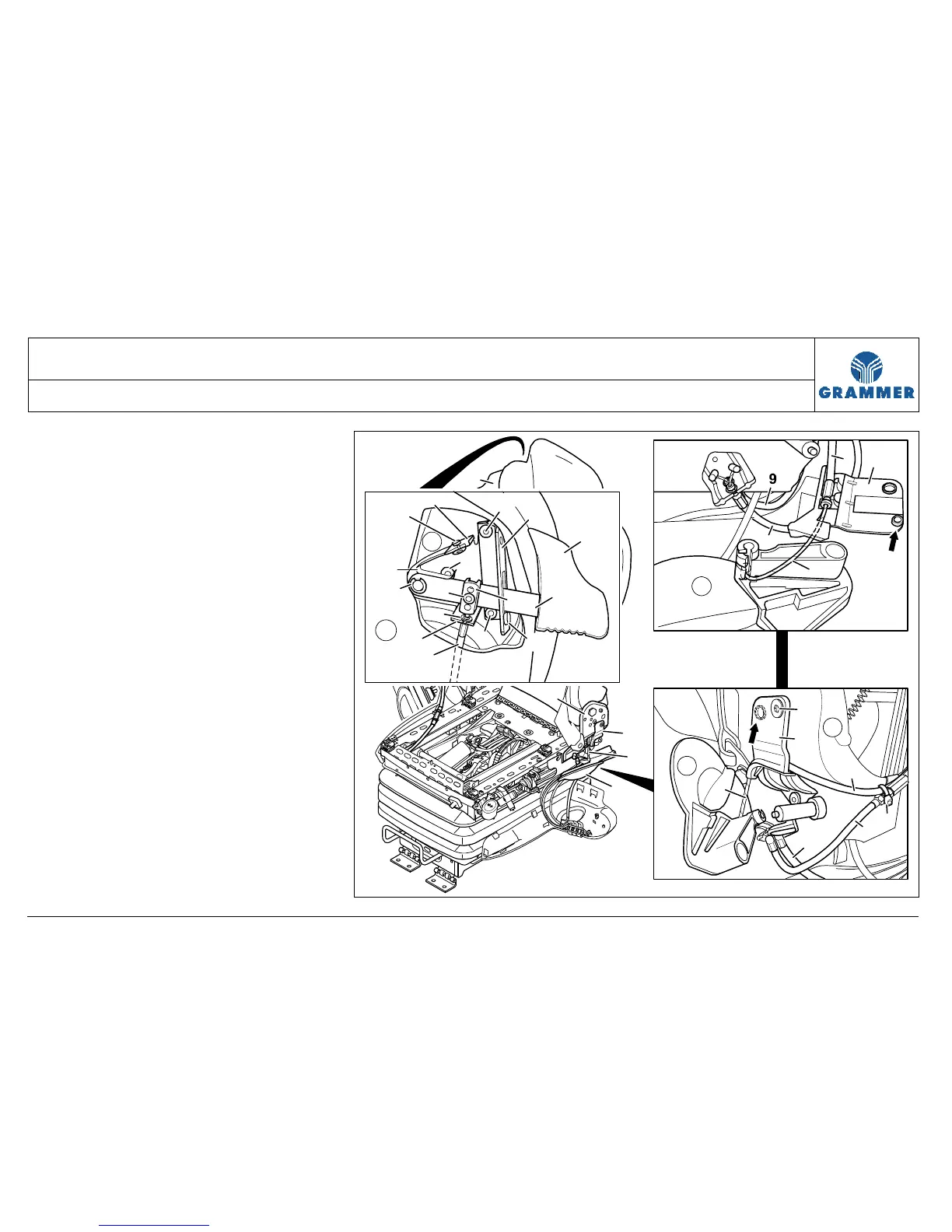

8 Unscrew the countersunk screw (6) at
the left side of the seat frame (4).
Installation note:
Countersunk screw (6); 12 Nm.
9 Detach the Bowden pull wire for
optional backrest adjustment (1) at the
baffle (2) and remove the baffle (2).
Installation note:
The nose (arrow) of the baffle (2) acts
as an anti-rotation device and must
engage into the provided drill hole on
the left side of the seat frame (4).
10 Detach the Bowden pull wire for
optional backrest adjustment (1) at
the lever for backrest adjustment (3).
