Grammer MSG 90.6PG - 3.49 Cable harness for backrest - removal and installation (seat with climate control system)

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 1 of 8

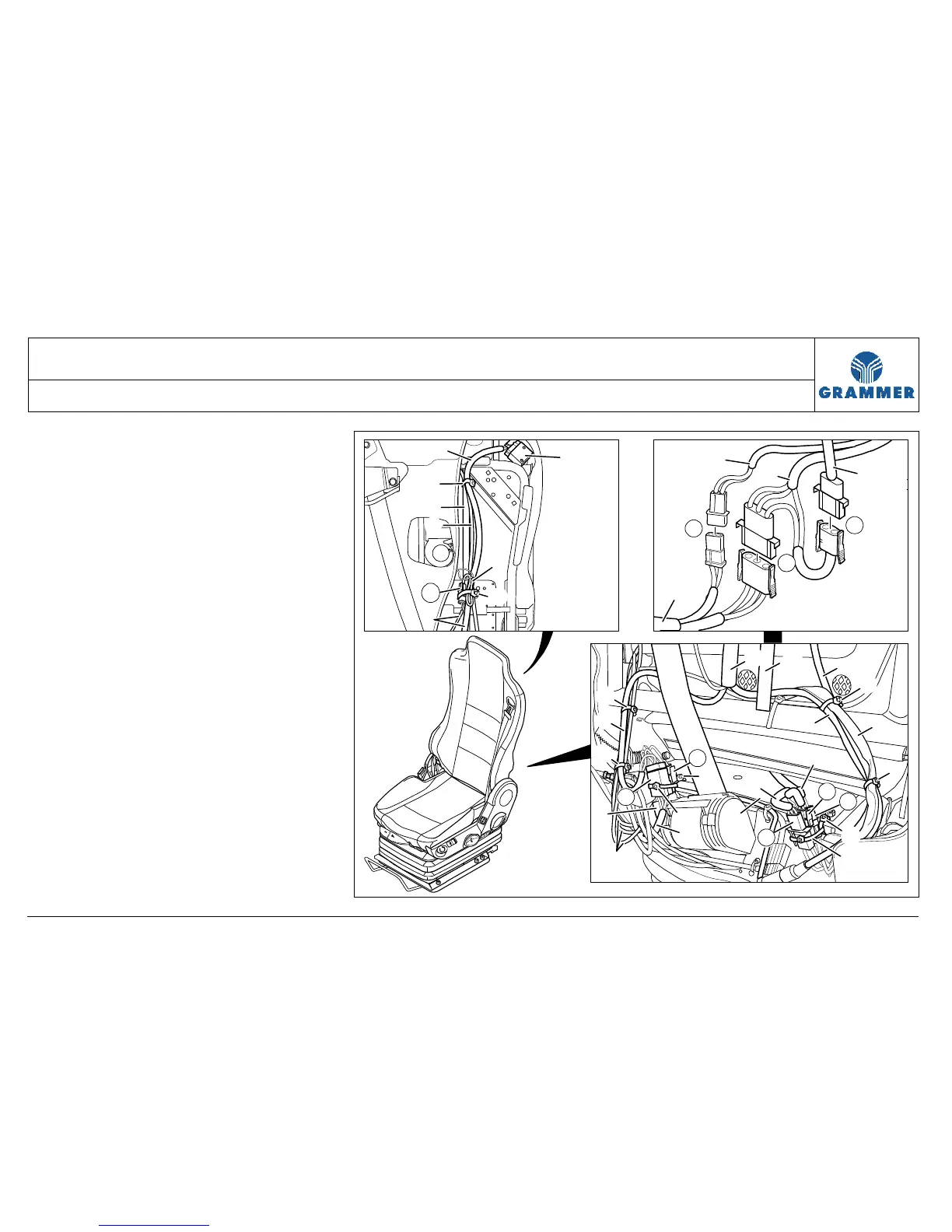

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Cable harness for backrest
(2) Cable for microphone
(3) Cable for backrest heater
(4) Cable tie
(5) Cable tie
(6) Cable tie
(7) Cable for seat fan
(8) Cable seat cushion heater
(9) Seat frame
(10) Cable tie
(11) Cable tie
(12) Cable tie
(13) Cable harness for vehicle
connection
1
12
11
1
K
H
I
J
L
14
13
10
9
8
6
7
8
7
20
1
17
19
18
M
1
4
4
5
16
2
3
16
3
1
1
15
12
J
H
I
2
2545
