Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

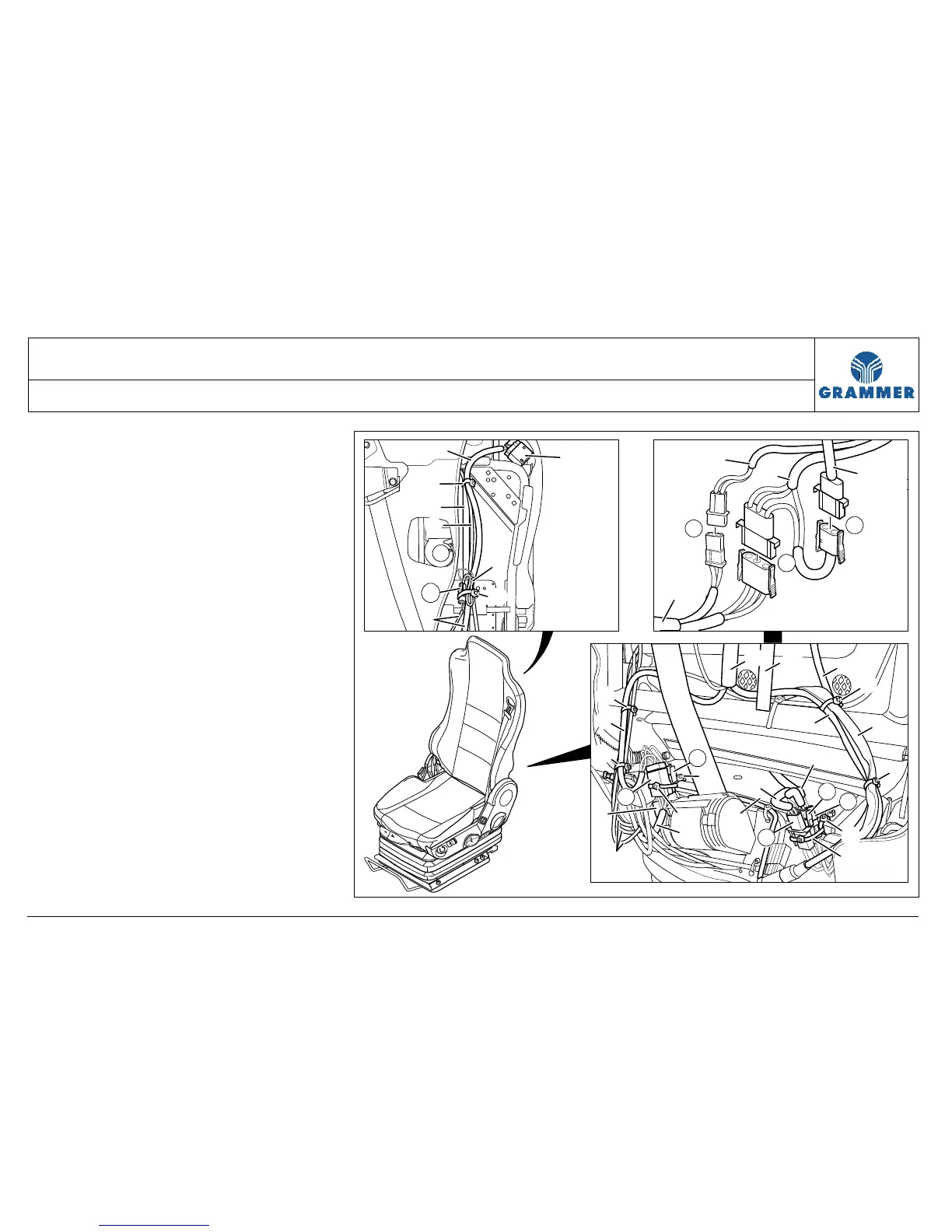

3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
Electrical plug and socket
connections:
(H) Electrical connection between cable
harness for backrest (1) and seat
cushion heater (8)
(I) Electrical connection between seat
cushion heater (8) and backrest
heater cable (3)
(J) Electrical connection between cable
harness for backrest (1) and seat
fan cable (7)
(K) Electrical connection between cable
harness for backrest (1) and cable
harness for the heater switch (15)
(L) Electrical connection between cable
harness for backrest (1) and cable
harness for the vehicle
connection (13)
(M) Electrical connection between cable
harness for backrest (1) and
backrest fan cable (19)
1
12
11
1
K
H
I
J
L
14
13
10
9
8
6
7
8
7
20
1
17
19
18
M
1
4
4
5
16
2
3
16
3
1
1
15
12
J
H
I
2
