Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

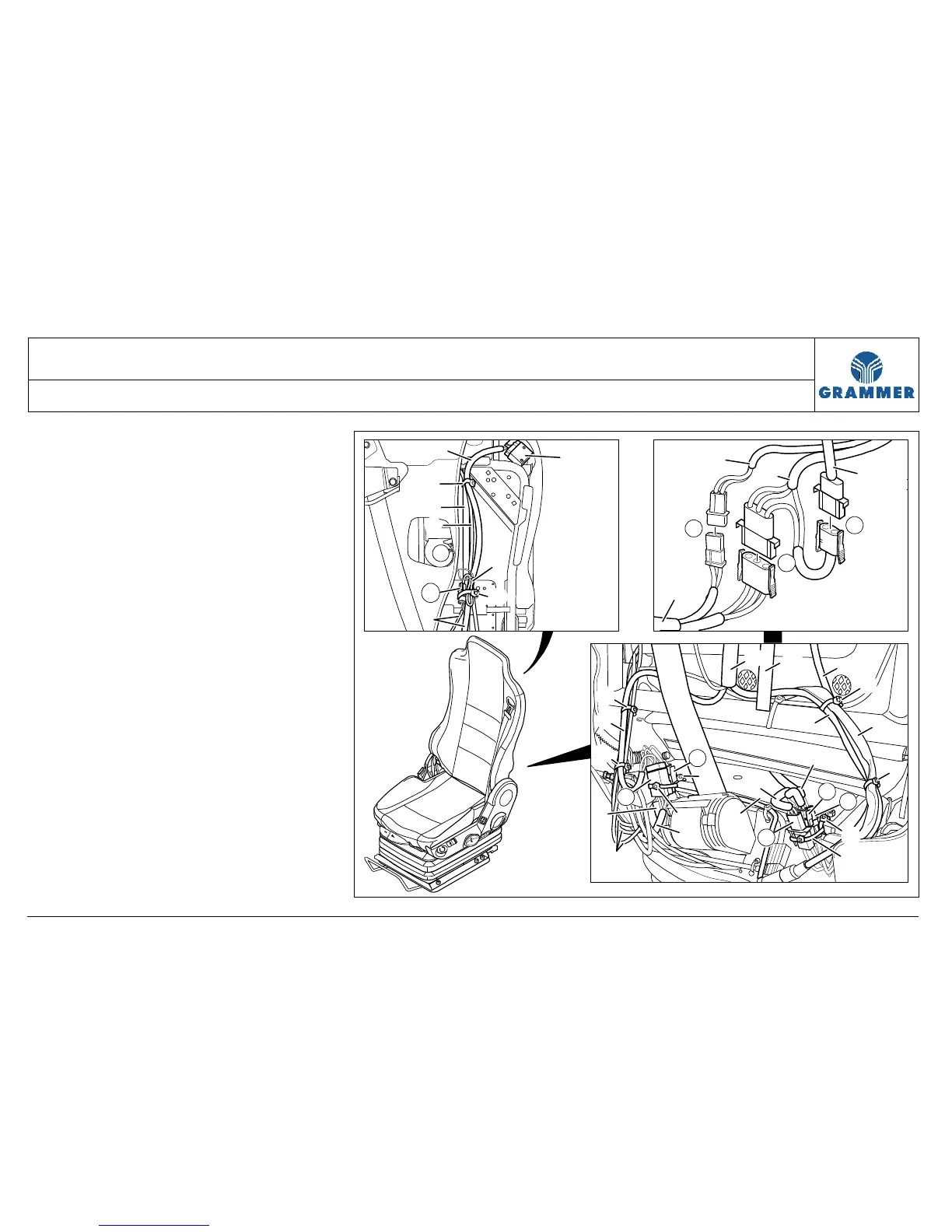

3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 4 of 8
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Remove the covering at the back (see
Chapter 3.5).
4 Remove the backrest cover (see
Chapter 3.26).
5 Remove the covering clamps and
upper insertion rods at the backrest
cover (see Chapter 3.31).
6 Open the zip fastener of the backrest
cover completely and pull the backrest
cover on the right side upwards over
the foam plastic part (see
Chapter 3.31).
1
12
11
1
K
H
I
J
L
14
13
10
9
8
6
7
8
7
20
1
17
19
18
M
1
4
4
5
16
2
3
16
3
1
1
15
12
J
H
I
2
2545
