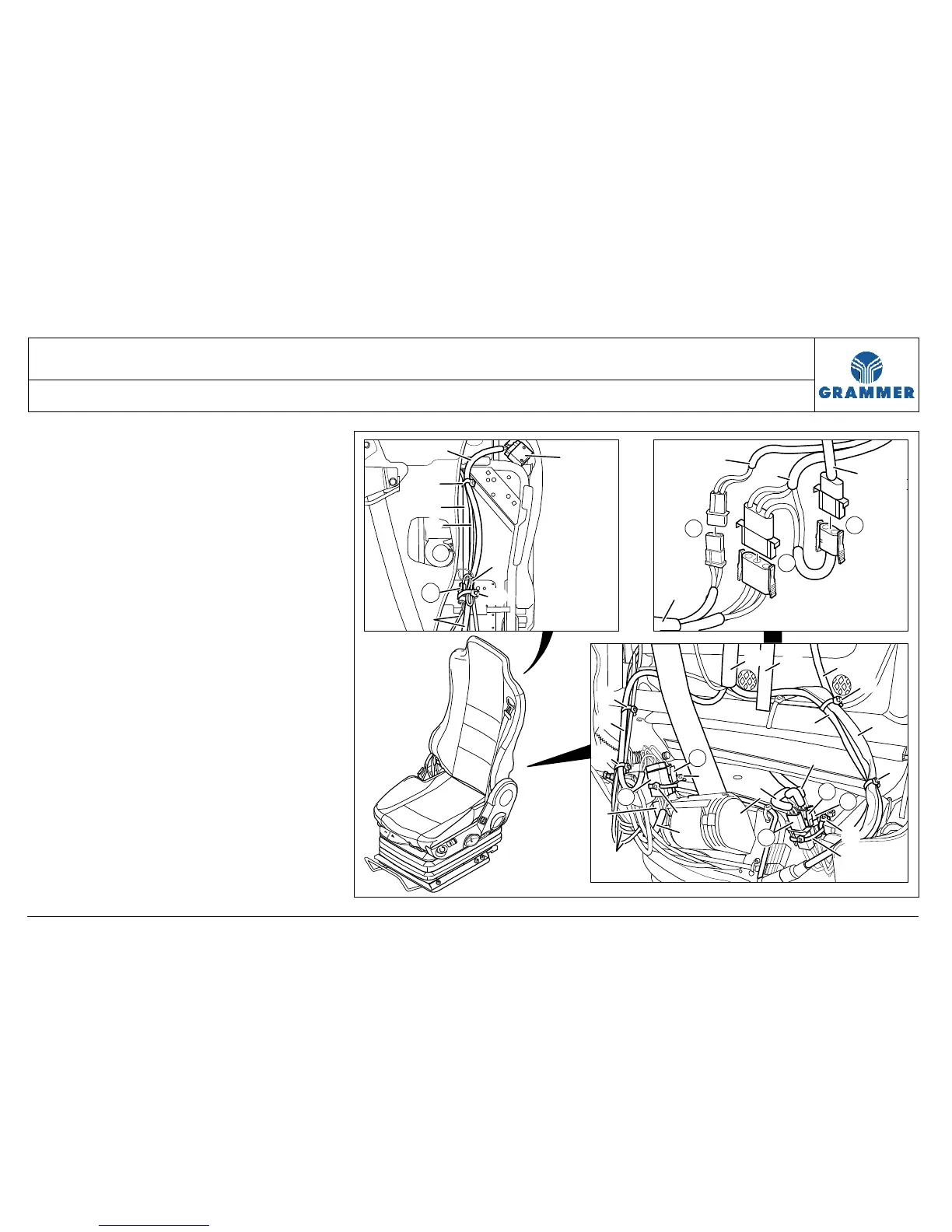

3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
15 Disconnect the electrical connection
(M) between cable harness for
backrest (1) and backrest fan
cable (19).
16 Pull the cable harness for the
backrest (1) out of the backrest
frame (16) in backward direction and
remove it.
17 Re-install the components in the
reverse order of their removal.
