Grammer MSG 90.6PG - Page 407

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 7 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

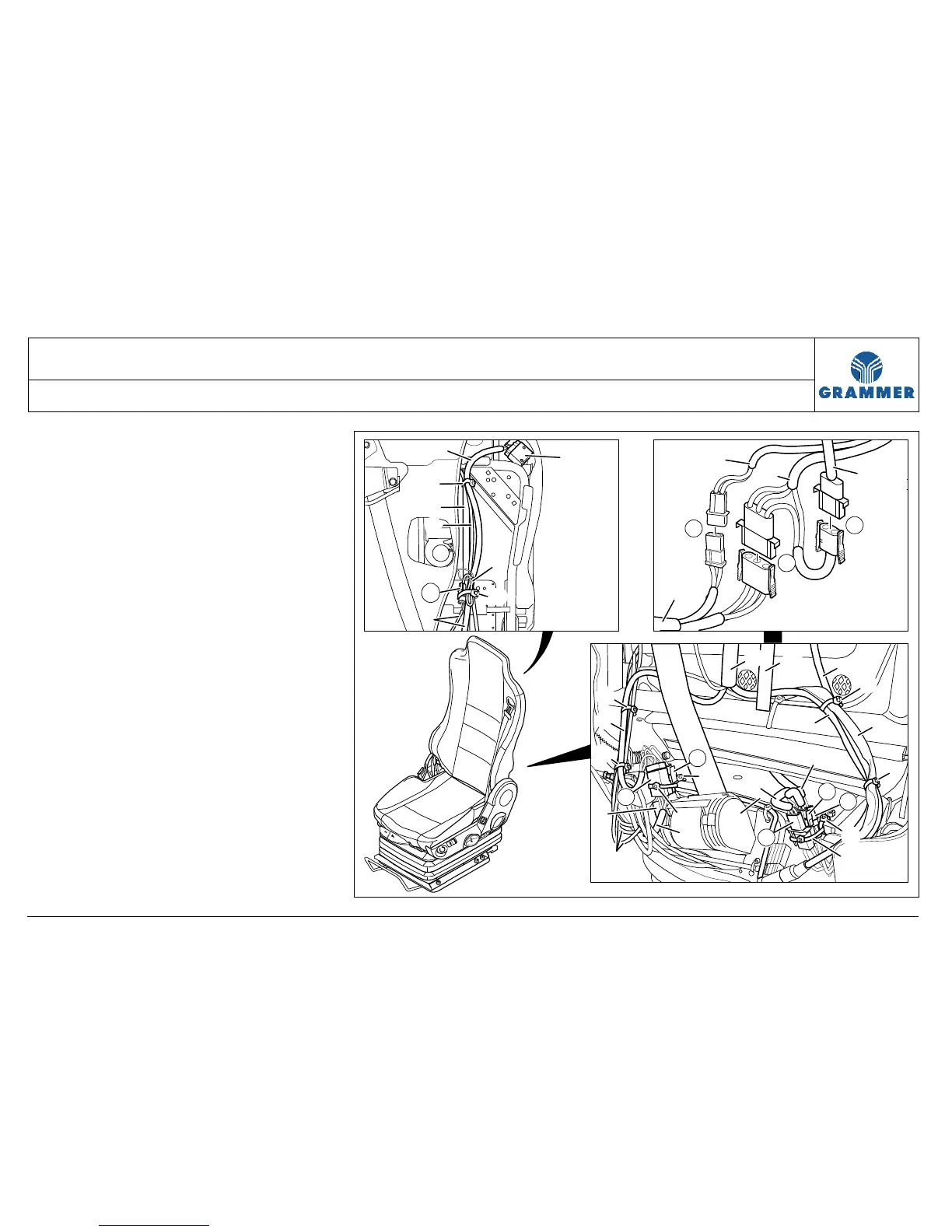

13 Mark the points where the cable
harness for the backrest (1) and the
microphone cable (2) are fastened to
the backrest frame (16) with cable
ties (17) and remove the cable
ties (17).
14 Mark the points where the cable
harness for the backrest (1), the
microphone cable (2) and the
electrical connection (M) are
fastened to the backrest frame (16)
with cable ties (18) and remove the
cable ties (18).
Installation note:
The excess length of the backrest
fan cable (19) is tied back in loops
with the cable tie (18).
1
12
11
1
K
H
I
J
L
14
13
10
9
8
6
7
8
7
20
1
17
19
18
M
1
4
4
5
16
2
3
16
3
1
1
15
12
J
H
I
2
