Grammer MSG 90.6PG - Page 406

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.49 Cable harness for backrest – removal and installation
(seat with climate control system)
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

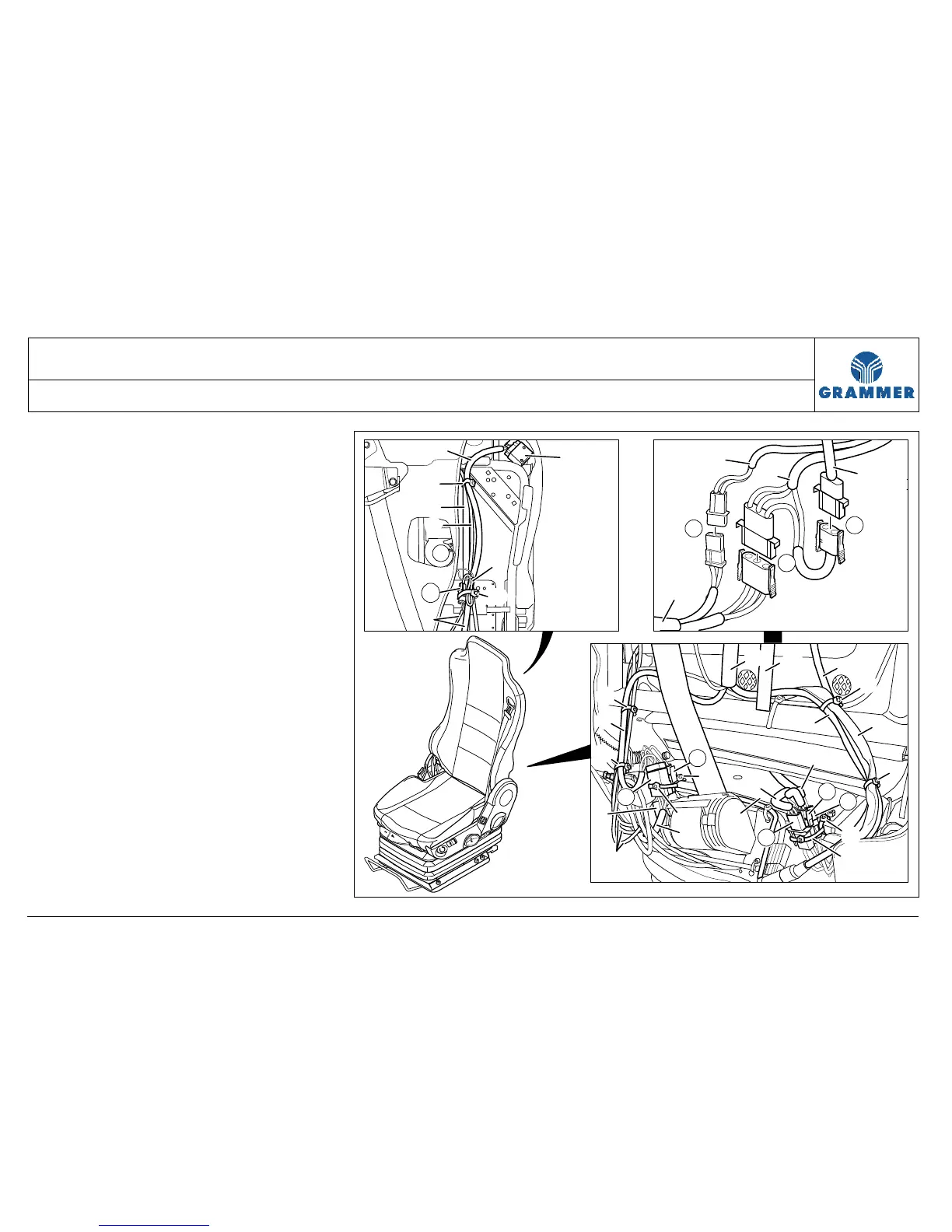

10 Mark the points where the electrical
connections (H, I, J) are bundled
with a cable tie (6) and remove the
cable tie (6).
Installation note:
The cable tie (6) must be guided
trough the cable tie (5) fastened at
the seat support (9).
11 Mark the points where the electrical
connections (K, L) are bundled with
a cable tie (10) and remove the
cable tie (10).
Installation note:
The cable tie (10) must be guided
trough the cable tie (11) fastened at
the seat support (9).
12 Disconnect electrical connections
(H, I, J, K, L).
1
12
11
1
K
H
I
J
L
14
13
10
9
8
6
7
8
7
20
1
17
19
18
M
1
4
4
5
16
2
3
16
3
1
1
15
12
J
H
I
2
