Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

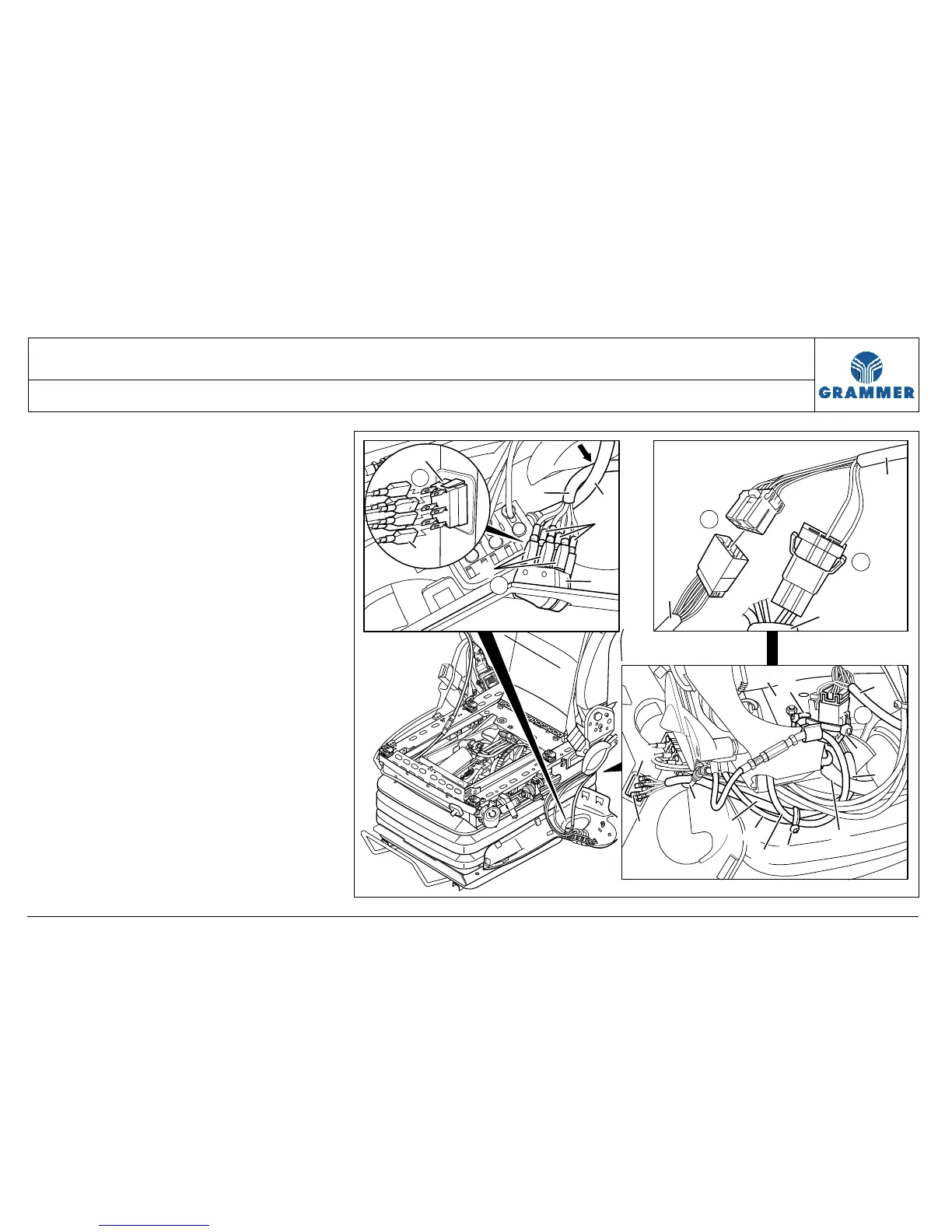

3.50 Cable harness heater switch – removal and installation
(seat with climate control system)
Page 2 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Remove the covering at the back (see
Chapter 3.5).
Removal and installation
4 Mark the installation position of the
cable harness for the heater
switch (1).
2547
3
3
1
2
4
1
2
2
3
K
N
K
1
L
9
7
3
2
1
1
7
8
6
12
10
5
9
11
4
2
3
N
