Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.50 Cable harness heater switch – removal and installation
(seat with climate control system)
Page 3 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS

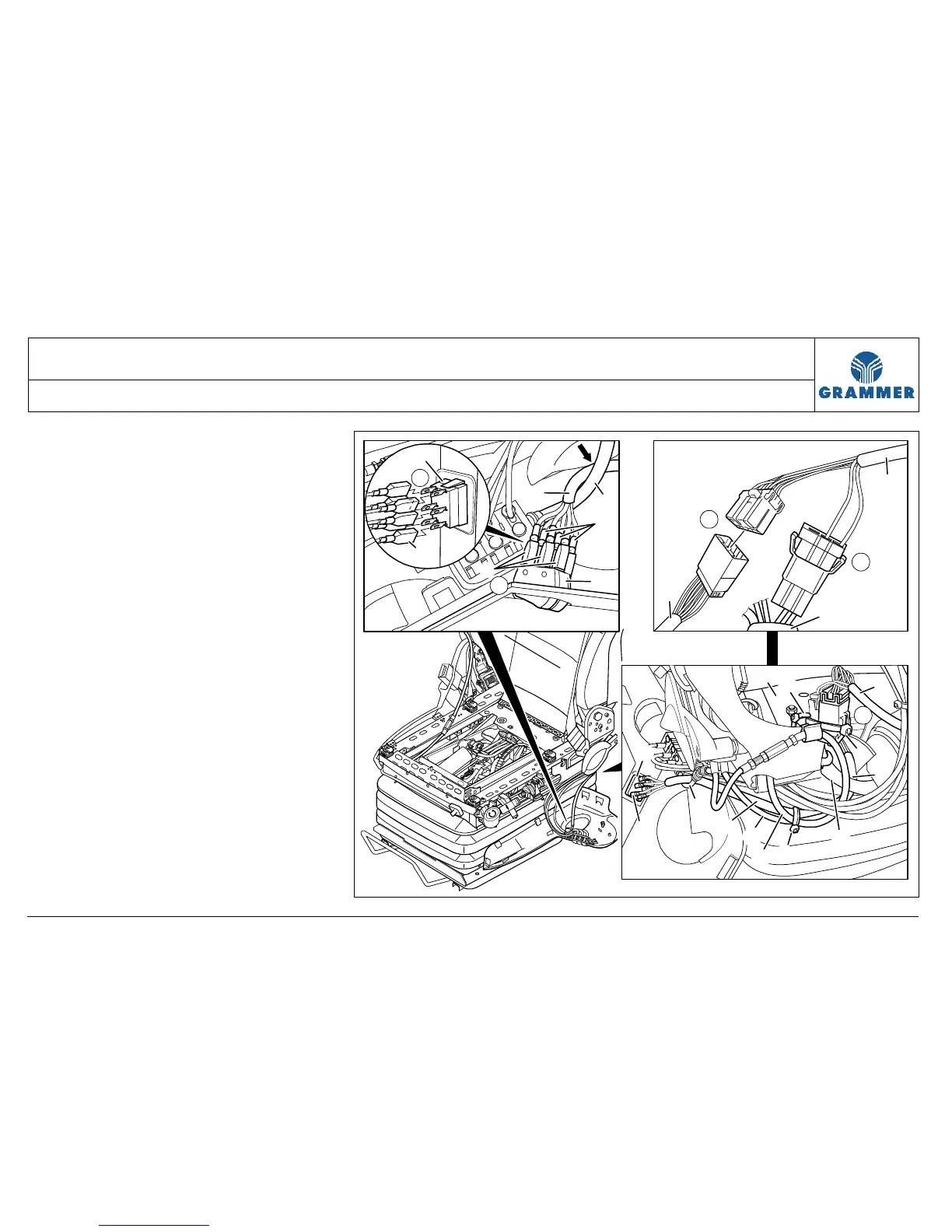

5 Mark two electrical connections (N)
(note the color of the cables) and
disconnect the electrical connections
(N) between the six connectors (2)
and the heater switch (3).
Installation notes:
• Re-establish the electrical
connections (N) according to the
markings.
• Lay the cable harness of the heater
switch (1) within (arrow) the air
hose (4).
6 Mark the point where the cable
harness of the heater switch (1) is
fastened to the Bowden pull wires for
the backrest adjustment (11, 12) with
cable tie (10), and remove the cable
tie (10).
2547
3
3
1
2
4
1
2
2
3
K
N
K
1
L
9
7
3
2
1
1
7
8
6
12
10
5
9
11
4
2
3
N
