3.51 Cable harness for vehicle connection – removal and installation
(seat with climate control system)
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

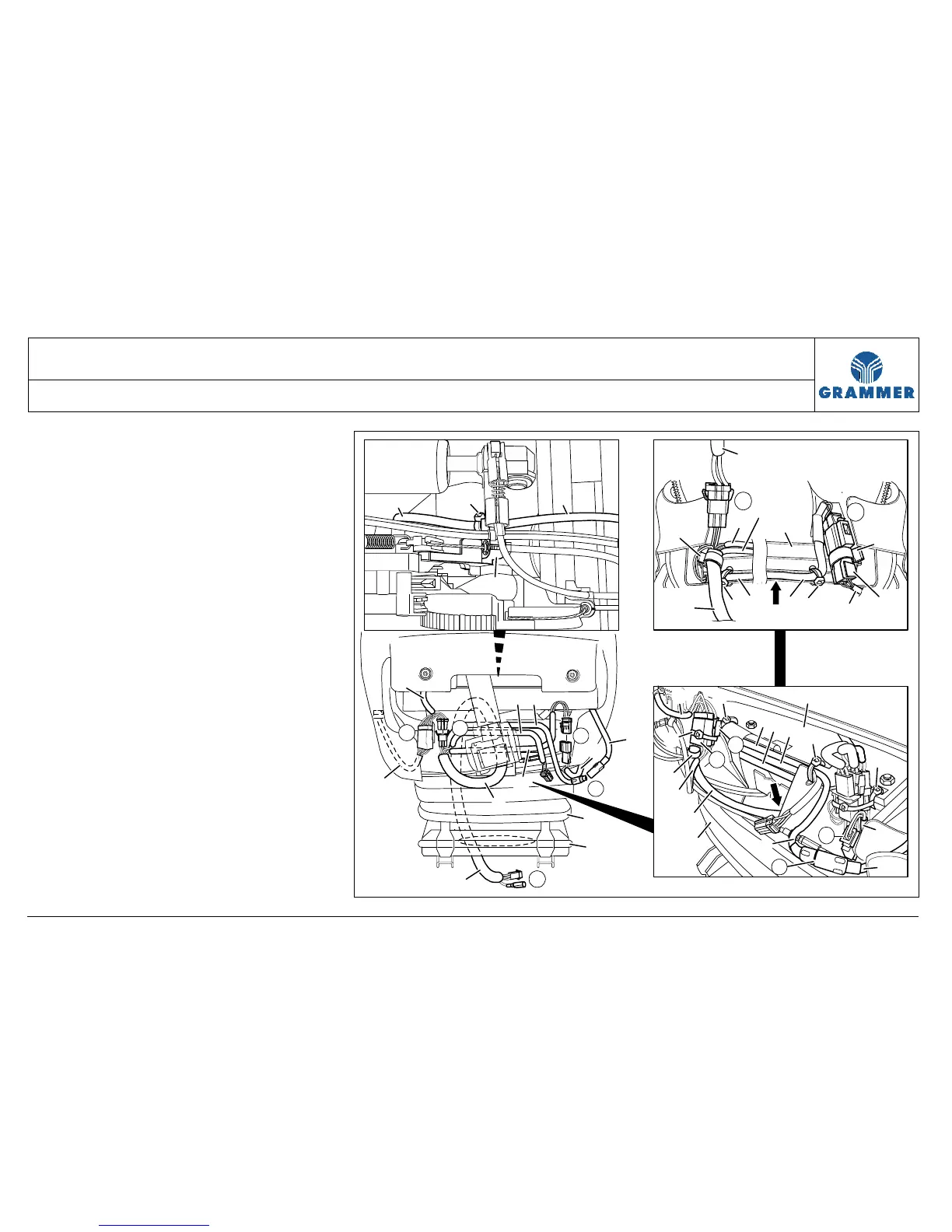

8 Mark the points where the bellows (8)
is fastened to the seat frame (13) by
means of three cable ties (12) and
remove the cable ties (12).
Installation note:
The microphone contact cable (4) and
the signal cable (17) are also fastened
with the two left cable ties (12).
9 Pull out cable clamp (10) at the seat
support (13) and hang out the cable
harness for the vehicle connection (1)
at the cable clamp (10).
10 Disconnect electrical connection (F).
11 Pull out cable clamp (14) at the seat
support (13) and hang out the plug
(16) at the cable clamp (14).
