2.1 Overview of components
Page 13 of 15
TABLE OF CONTENTS
Note:

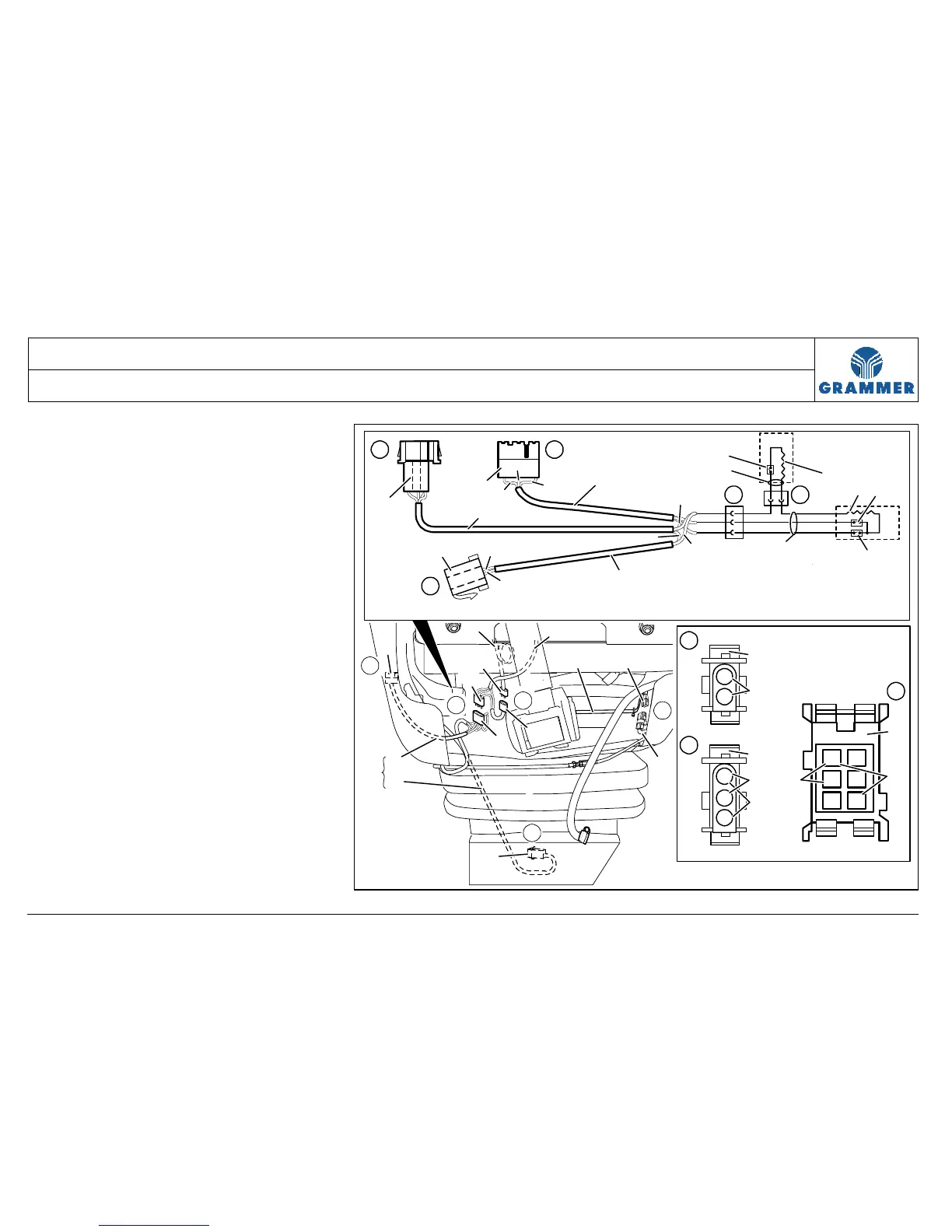

Pin assignment seen from the back
(19) Pin assignment for heater at the
plug for vehicle connection (10)
contact 3 (K3) voltage 24 V (rt)
contact 4 (K4) ground (sw)
(29) Pin assignment for belt buckle
contact at the plug for vehicle
connection (10)
contact 4 (K4) ground (sw)
contact 5 (K5) belt warning buzzer
(bl)
Electrical plug and socket connection:
(F) Electrical connection between the
cable for belt buckle contact (26)
and the belt buckle cable (28)
