Grammer MSG 90.6PG - Page 43

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
2.1 Overview of components
Page 14 of 15
TABLE OF CONTENTS

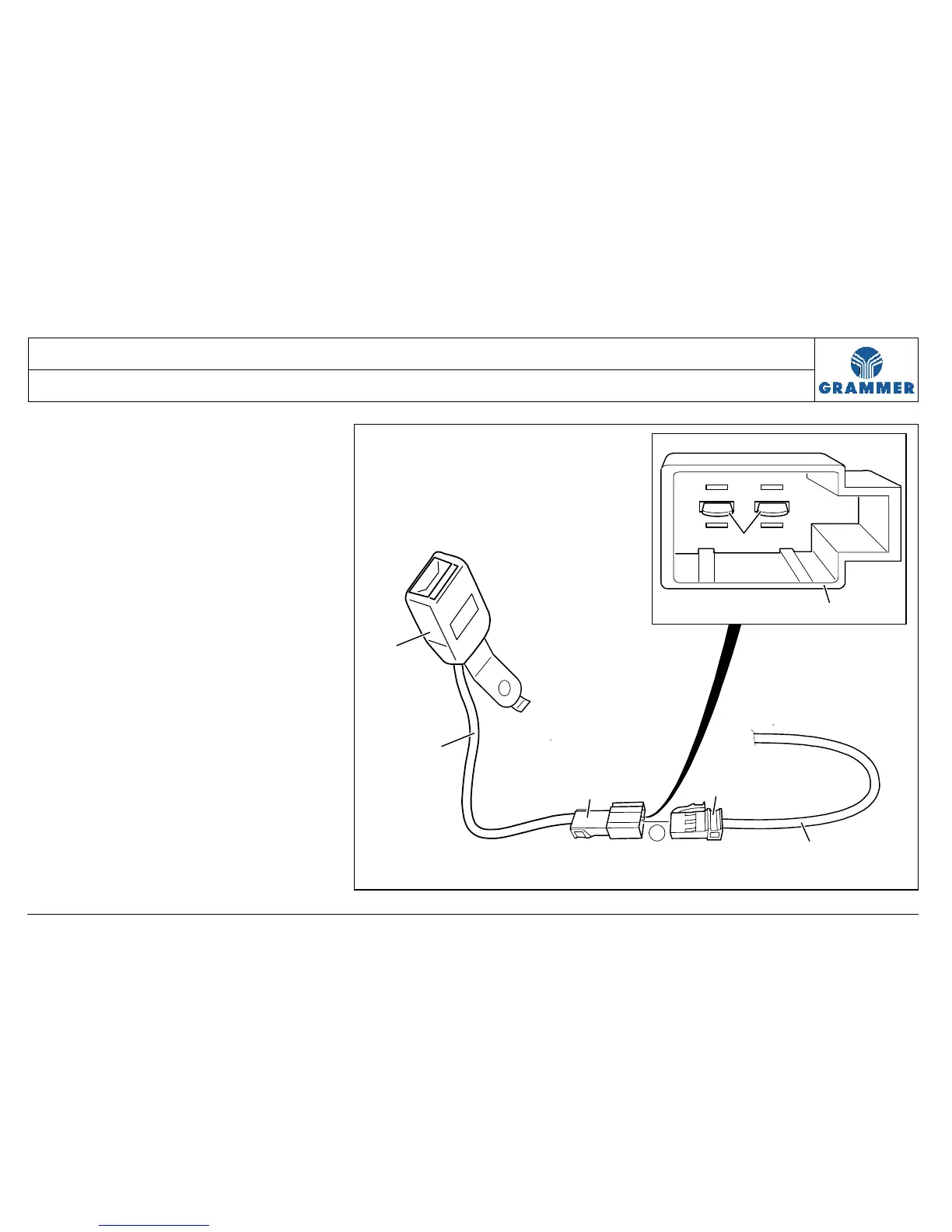

Belt buckle with belt buckle cable
(if fitted)
(1) Belt buckle
(2) Belt buckle cable
(3) Plug for belt buckle cable
(4) Socket for belt buckle cable
(5) Cable for belt buckle contact
(6) Pin assignment for belt buckle
contact at the plug of the belt buckle
cable (3)
PIN
P1 (ground) and
P2 (voltage 24V)
Electrical plug and socket connection:
(F) Electrical connection between the
belt buckle cable (2) and the cable
for belt buckle contact (5)
1
2
3
5
3
6
P1 P2
4
F
2280
