Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.51 Cable harness for vehicle connection – removal and installation
(seat with climate control system)
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

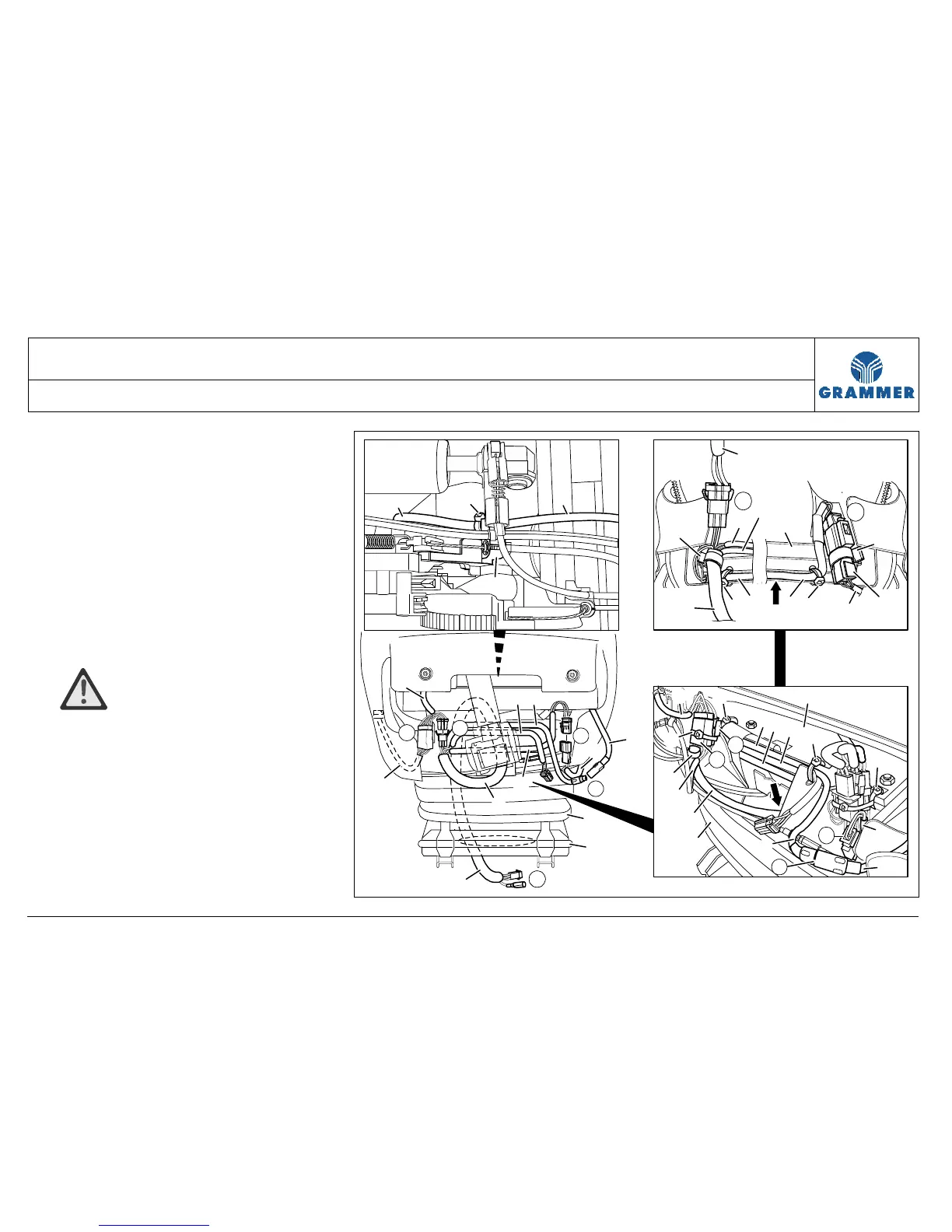

15 Mark the installation position of the
cable harness for the vehicle
connection (1) and pull out the cable
harness for the vehicle connection
(1) from the large opening of the
swivel (9) and the seat suspension
towards the top.
16 Pull out the cable har
ness for vehicle
connection (1) from the opening
(arrow) in the bellows (8) towards
the back and remove.
Installation note:
WARNING Malfunction! Lay
the cable harness for the vehicle
connection (1) according to the mark
so that it cannot be squeezed when
the seat is moved vertically.
17 Re-install the components in the
reverse order of their removal.
9
8
7
A
O
K
5
1
1
2
3
F
417
L
6
19
18
1
1
11
10
15
5
5
15
13
4
2
17
6
16
14
F
L
2548
F
5
12
L
K
1
8
3
10
13
12
17
12
4
5
7
4
O
11
2
