Grammer MSG 90.6PG - Page 423

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

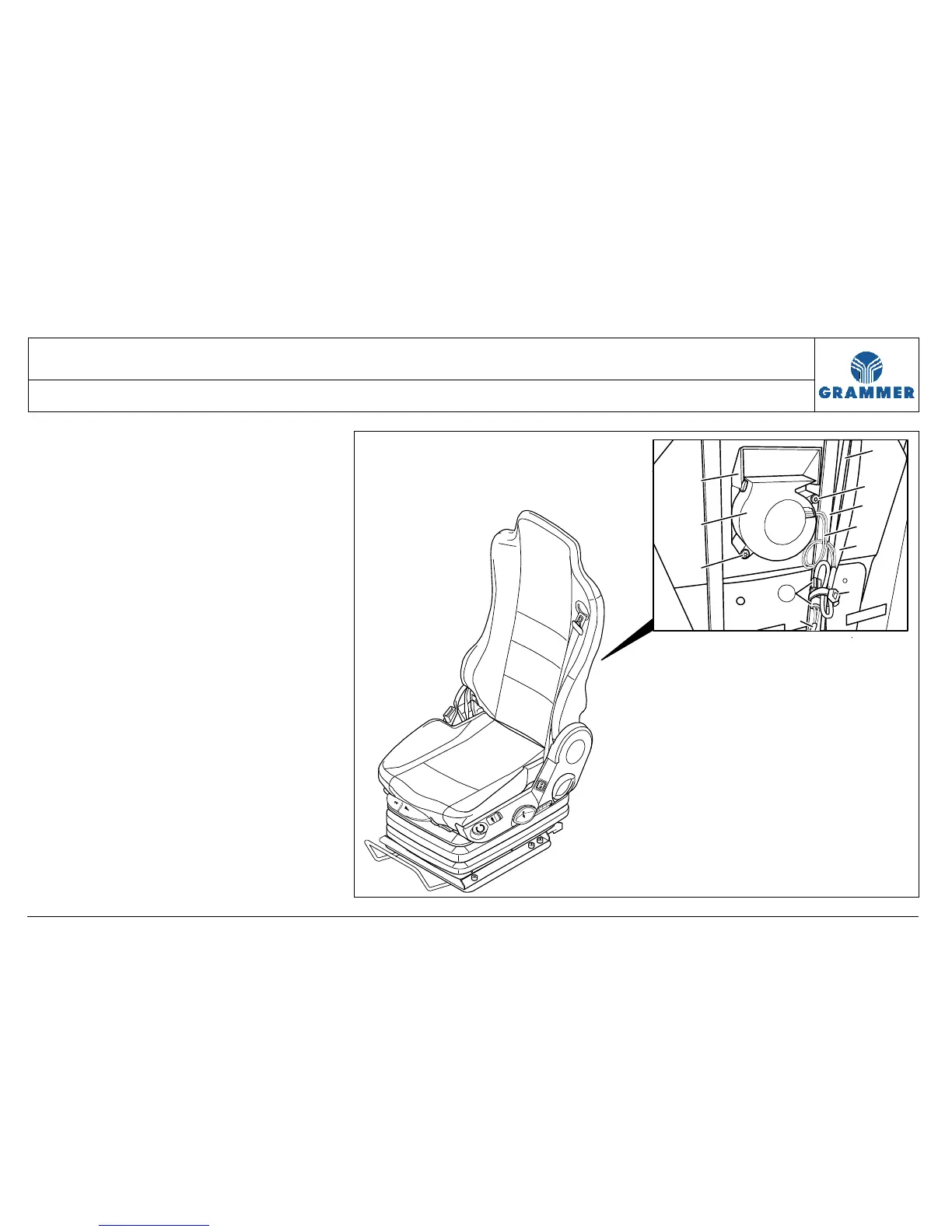

3.52 Radial fan for backrest – removal and installation
(seat with climate control system)
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
4 Disconnect the electrical connection
(M) between cable harness for
backrest (7) and backrest fan
cable (6).
5 Unscrew the two flat head screws (4)
at the support (2) and remove radial
fan (1).
Installation note:
Flat head screw (3), 6 Nm.
6 Re-install the components in the
reverse order of their removal.
4
1
2
M
7
8
7
6
5
3
4
