Grammer MSG 90.6PG - Page 427

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

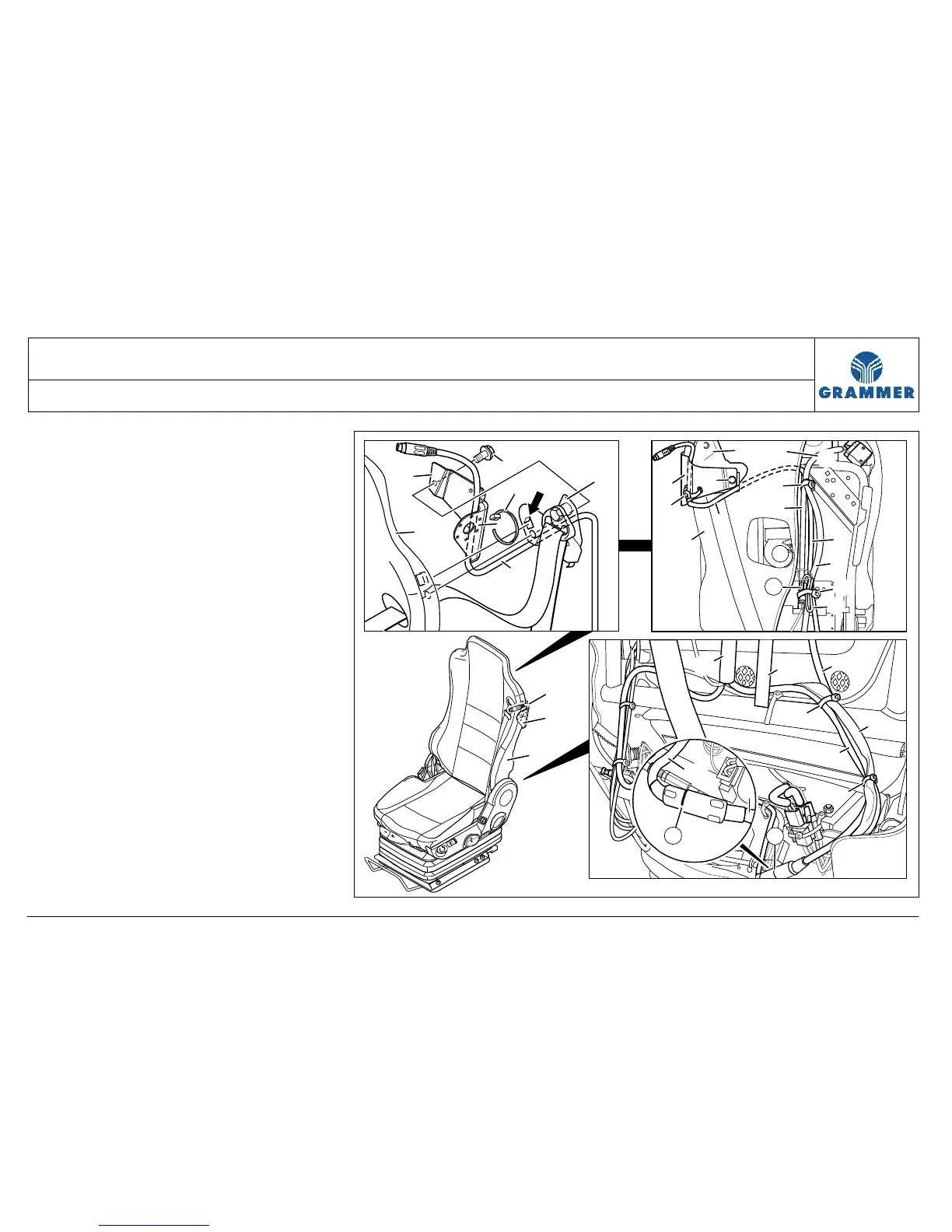

3.54 Cable harness for microphone – removal and installation
(seat with climate control system)
Page 1 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Cable for microphone
(2) Microphone support
(3) Backrest
(4) Serrated washer head screw
........................... to replace, 25 Nm
(5) Cable tie
(6) Belt bracket
(7) Backrest cover
(8) Cable tie
(9) Backrest frame
(10) Cable harness for backrest
(11) Cable tie
(12) Cable of backrest fan
(13) Cable tie
(14) Cable for backrest heater
(15) Cable for microphone contact
