Grammer MSG 90.6PG - Page 426

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.53 Control module for climate control system – removal and installation
(seat with climate control system)
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation

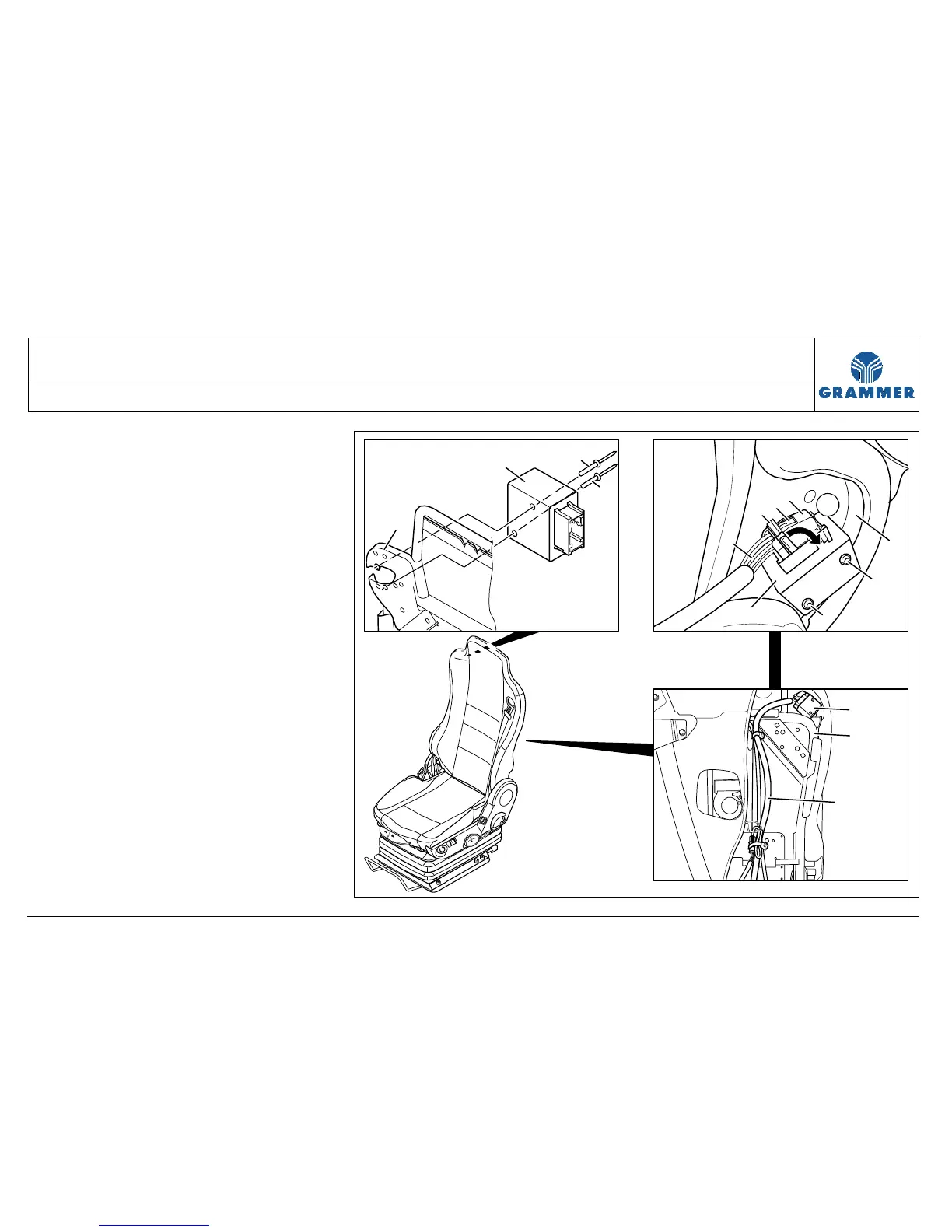

4 Unlock the bracket (5) at the catcher
(6) of the connector (7) and
disconnect the electrical connection
(P) between the cable harness for the
backrest (4) and the control module
for the climate control system (1).
Note:
To unlock, press down the catcher (6)
at the connector (7) and turn the
bracket (5) as far as possible (arrow)
via the catcher (6).
5 Bore off two rivet heads and drive out
the blind rivets (3) at the backrest
frame (2).
6 Remove the control module for the
climate control system (1).
7 Re-install the components in the
reverse order of their removal.
1
1
3
2
4
3
3
2
7
6
5
4
1
2
3
P
2550
