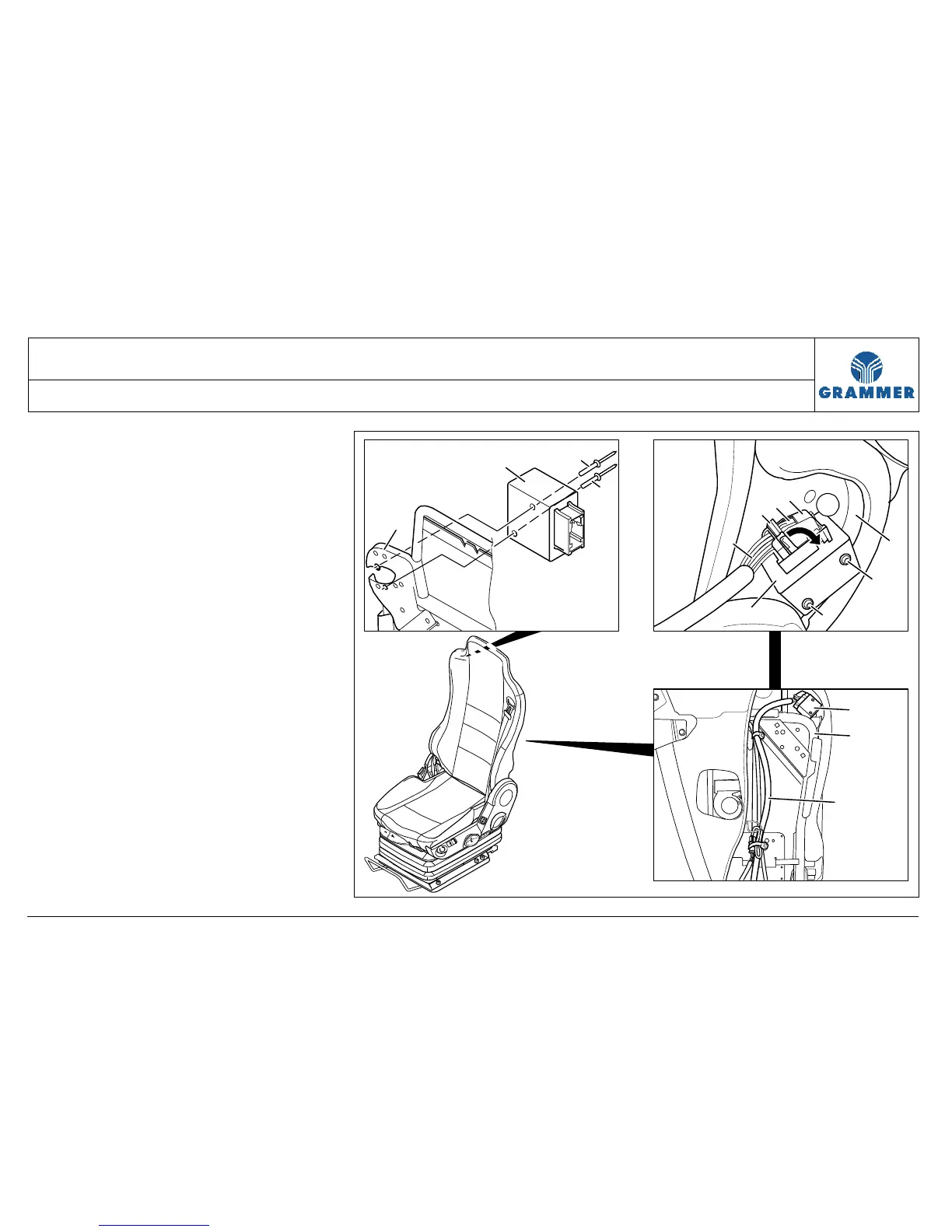

3.53 Control module for climate control system – removal and installation
(seat with climate control system)
Page 2 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Remove the backrest cover (see
Chapter 3.26).
2 Remove the covering clamp and
upper insertion rods at the backrest
cover (see Chapter 3.31).
3 Open the zip fastener of the backrest
cover completely and pull the backrest
cover on the right side upwards over
the foam plastic part (see
Chapter 3.31).
