Grammer MSG 90.6PG - 3.56 Play in the backrest locking mechanism - inspection and adjustment

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.56 Play in the backrest locking mechanism – inspection and adjustment
Page 1 of 3

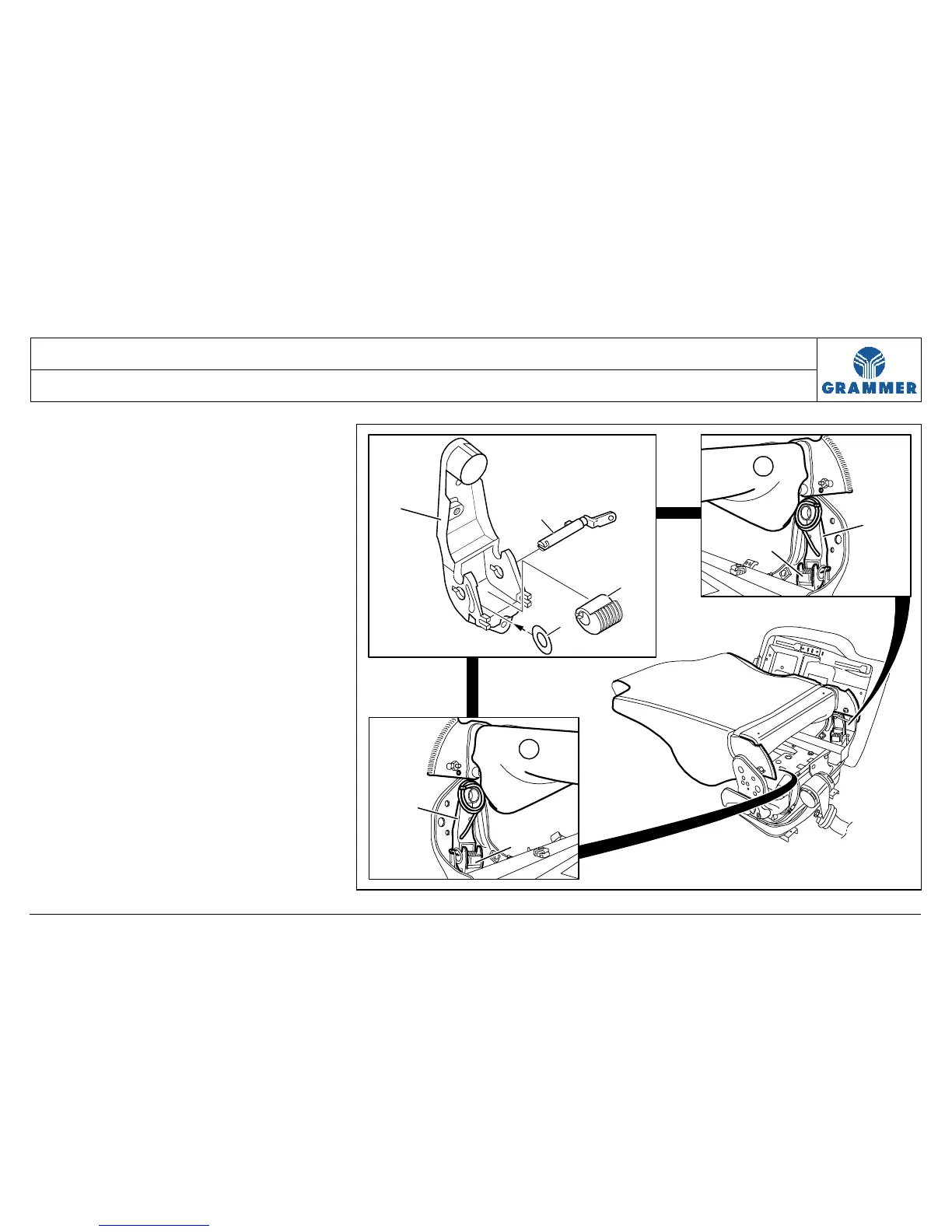

INSPECTION TABLE OF CONTENTS
(1) Backrest
(2) Bearing support, right-hand
(3) Catch element
(4) Lock
(5) Washer
(6) Spacer at the bearing support
opposite the lever (white) *
(7) Spacer at the bearing support
lever-side (black) *
(8) Bearing support, left-hand
1 Lift off the seat cushion in position for
repair (Chap. 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
* Delivery option
3365
7
8
1
2
6
1
2
5
4
3
