Grammer MSG 90.6PG - Page 88

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.1 Seat cushion in position for repair – lifting off and attachment
Page 5 of 5
RAISE/ATTACH TABLE OF CONTENTS
9 Seat with climate control system:
Disconnect the electrical connection
between the cable harness for
backrest and seat fan cable (see
Chapter 2.12.).

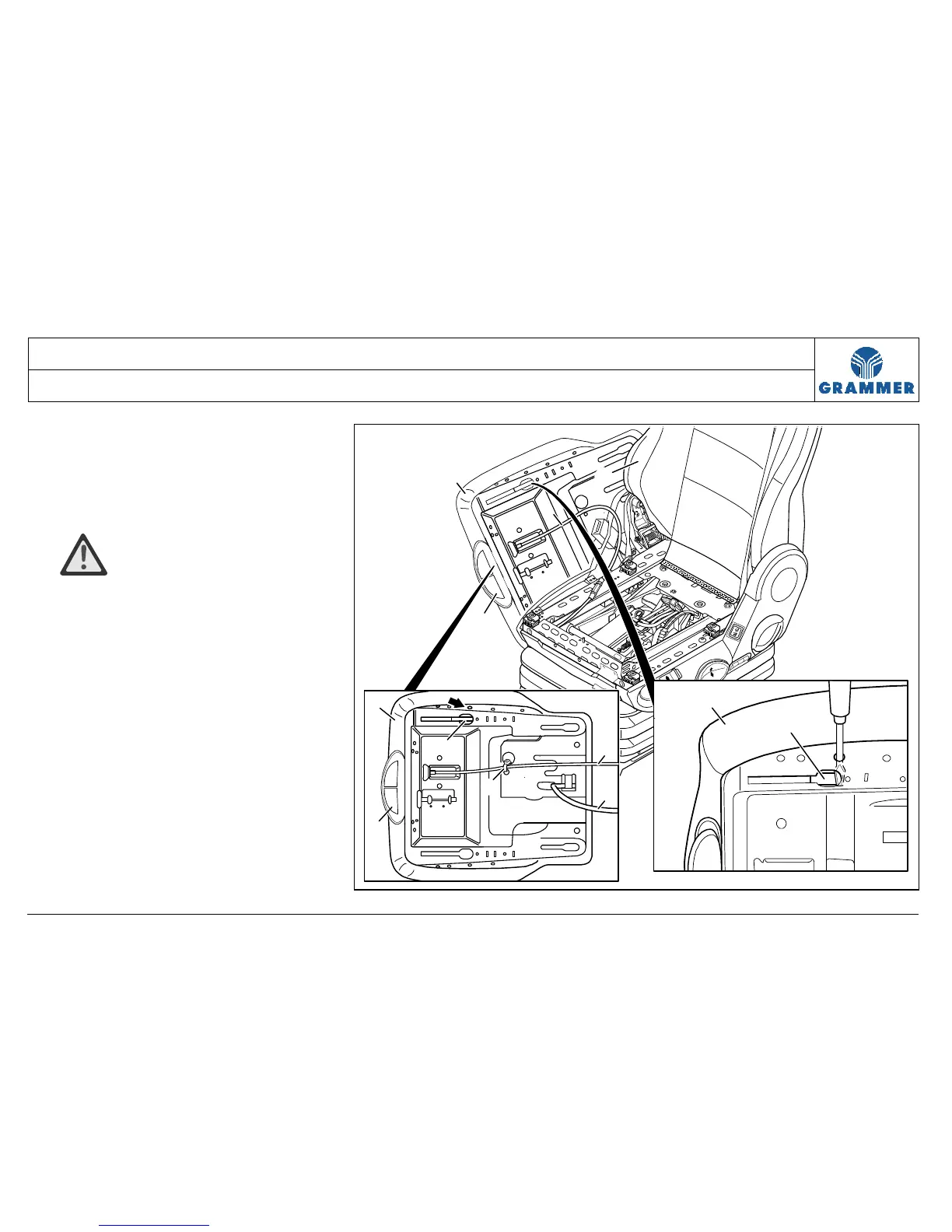

10 ATTENTION Damage!
Place the seat cushion (1) on the
right side of the seat without
distorting or kinking the Bowden pull
wire for seat angle adjustment (3).
11 Mount the components in reverse
order of their removal.
