Grammer MSG 90.6PG - 3.2 Seat cushion and lever for seat angle and seat depth adjustment - removal and installation

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.2 Seat cushion and lever for seat angle and seat depth adjustment –
removal and installation
Page 1 of 4

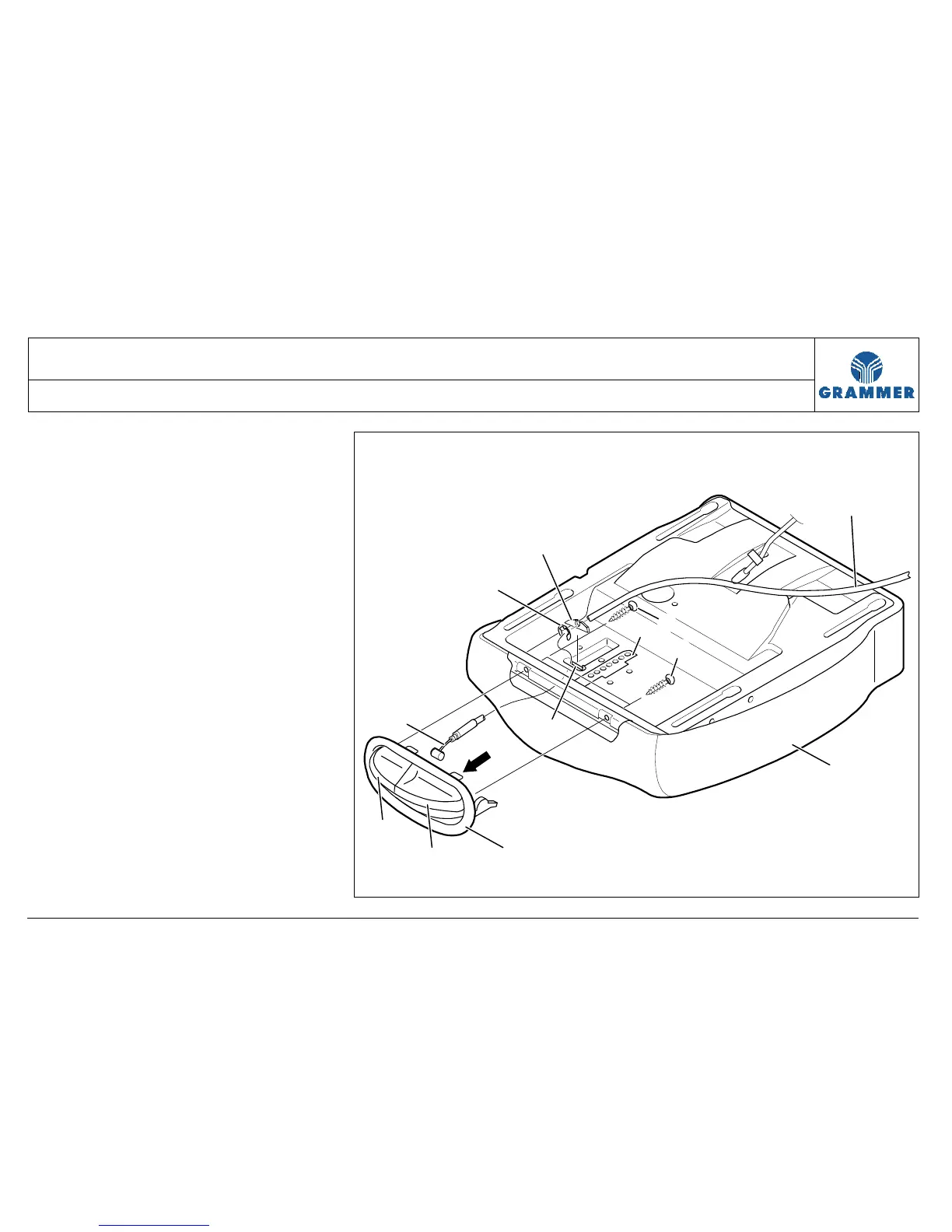

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Round head screw ............... 2.5 Nm
(2) Locking plate
(3) Seat cushion
(4) Seat plate
(5) Housing
(6) Lever for seat depth adjustment
(7) Lever for seat angle adjustment
(8) Hauling rope
(9) Lock washer
(10) Holding plate
(11) Bowden pull wire for seat angle
adjustment
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
3
1
4
5
6
7
8
9
11
1
2
10
2191
