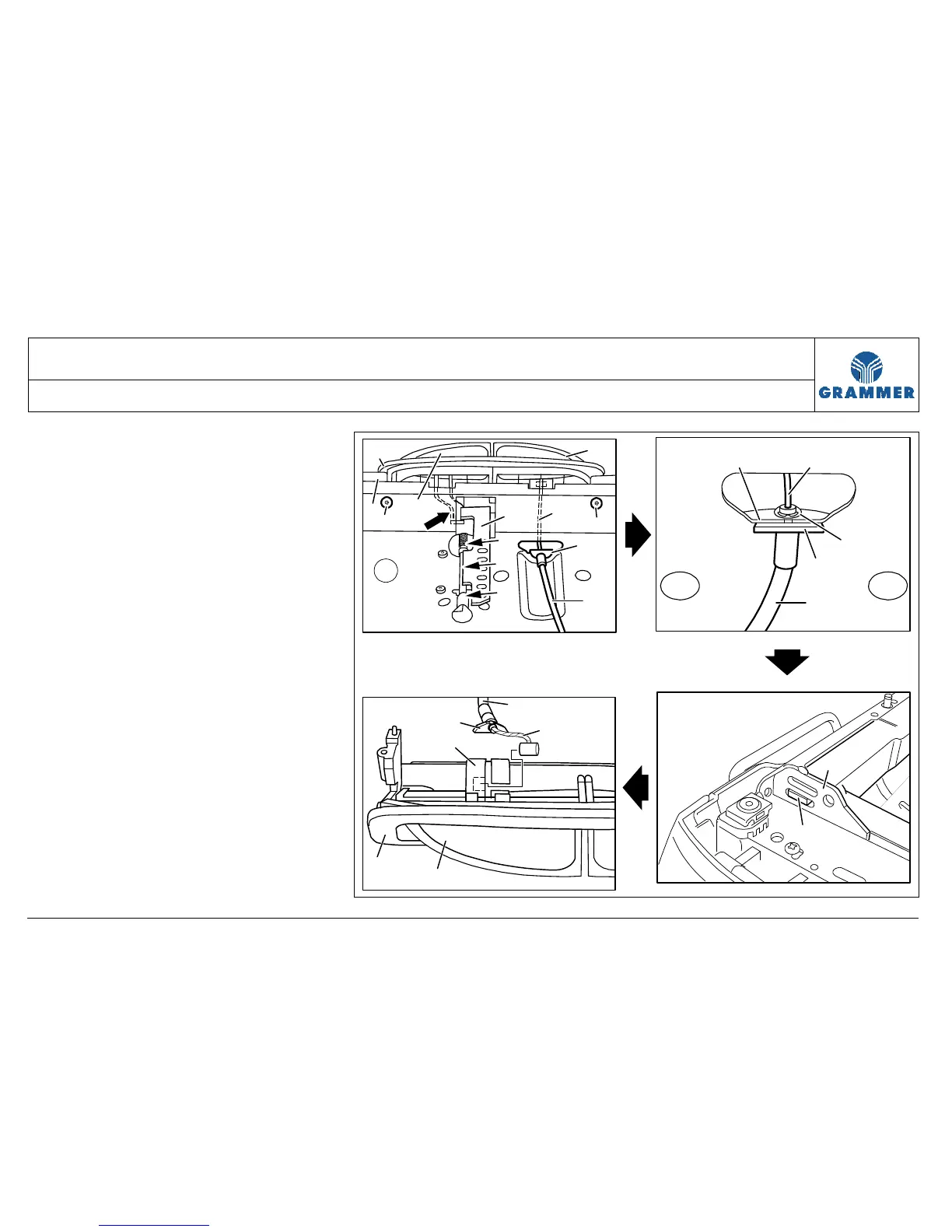

3.2 Seat cushion and lever for seat angle and seat depth adjustment –
removal and installation
Page 2 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
2 Operate the lever for seat angle
adjustment (7) and position the
latches (13) between two cutouts in
the seat frame (12).
3 Unscrew two round head screws (1).
Installation note:
Round head screw (1), 2.5 Nm.
4 Loosen the lock washer (9) at the
Bowden pull wire for seat angle
adjustment (11).
5 Remove the Bowden pull wire for seat
angle adjustment (11) at the seat plate
(4) and remove the holding plate (10).
