Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.2 Seat cushion and lever for seat angle and seat depth adjustment –
removal and installation
Page 3 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS

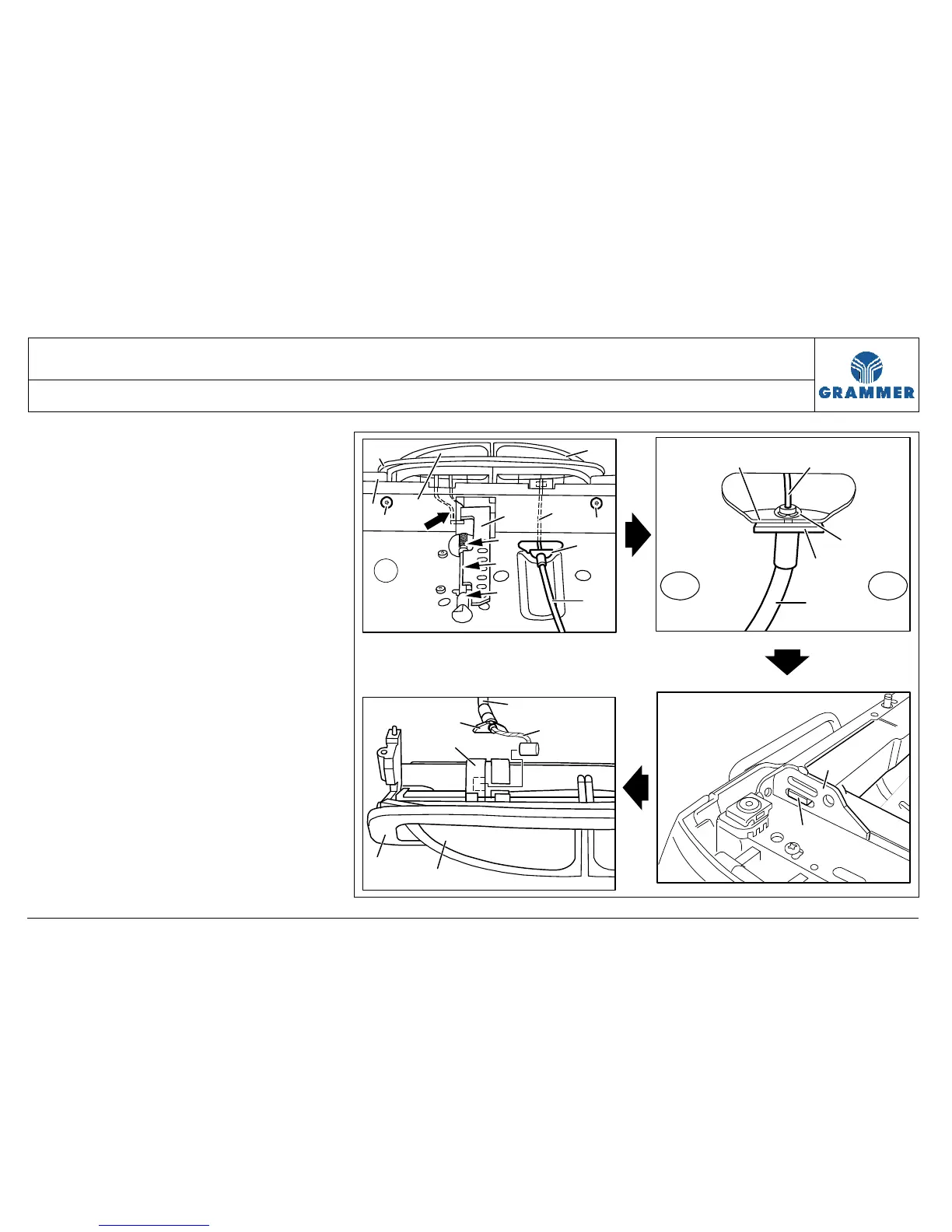

6 Pull out the housing (5) at the seat
cushion (3) until the hauling rope (8) is
accessible.
Installation notes:
• When inserting the housing (5),
press the locking plate (2) towards the
seat plate(4) so that the hook (arrow)
at the lever for seat depth adjustment
(6) can be pushed under the locking
plate (2).
• Apply acid-free multi-purpose
lubricant to the bearing area (F) of the
locking plate (2).
7 Remove the hauling rope (8) at the
lever for seat angle adjustment (7).
2192
F
F
F
4
1
3
2
8
7
10
11
1
5
6
4
10
11
13
12
8
9
8
7
7
10
1
5
