Grammer MSG 90.6PG - Page 92

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.2 Seat cushion and lever for seat angle and seat depth adjustment –
removal and installation
Page 4 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS

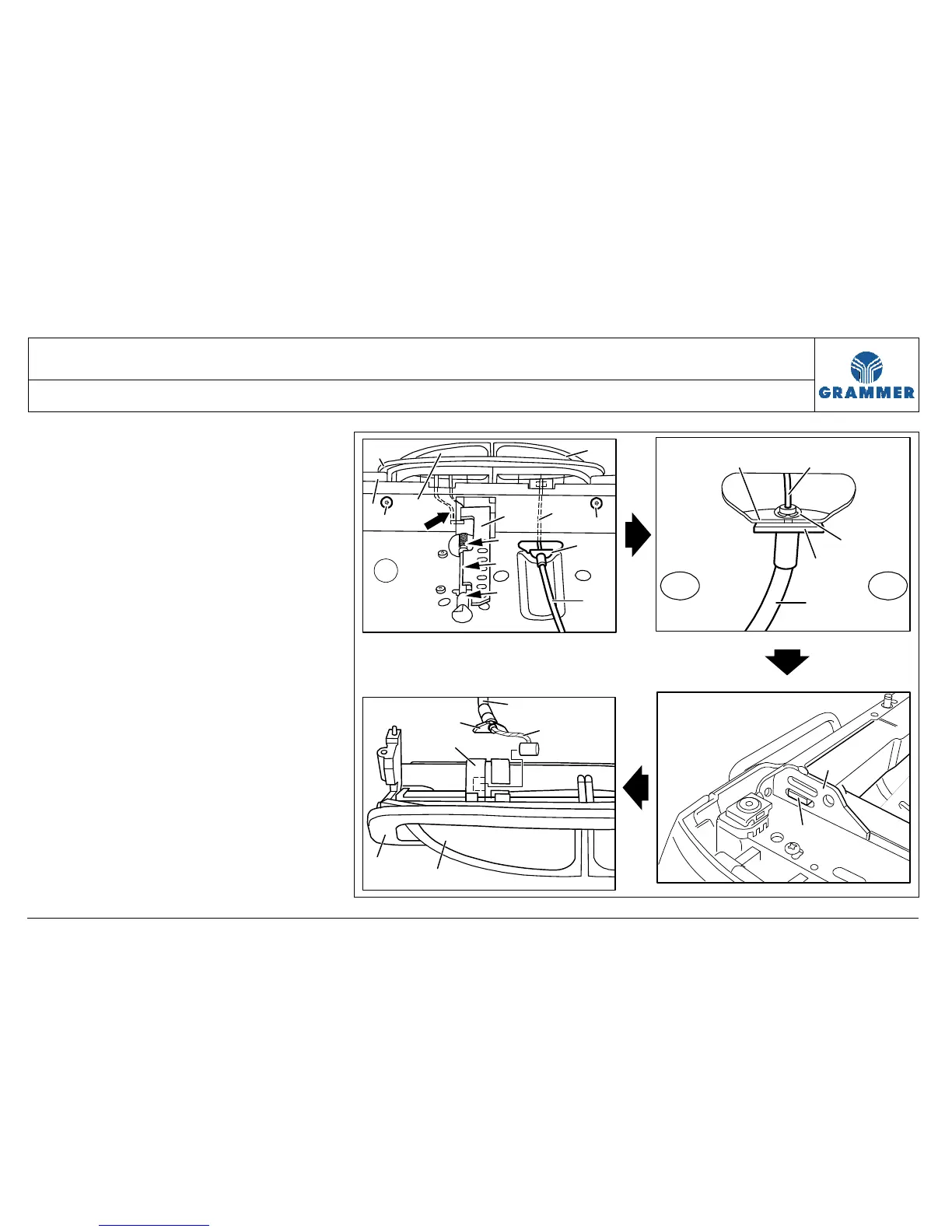

8 Pull out the housing (5) with the lever
for seat angle adjustment (7) and seat
depth adjustment (6) out of the seat
cushion (3).
9 Remove the seat cushion (3).
10 Re-install the components in the
reverse order of their removal.
