3.3.1 Seat cushion cover – removal and installation
Page 1 of 3
REMOVAL INSTALLATION TABLE OF CONTENTS

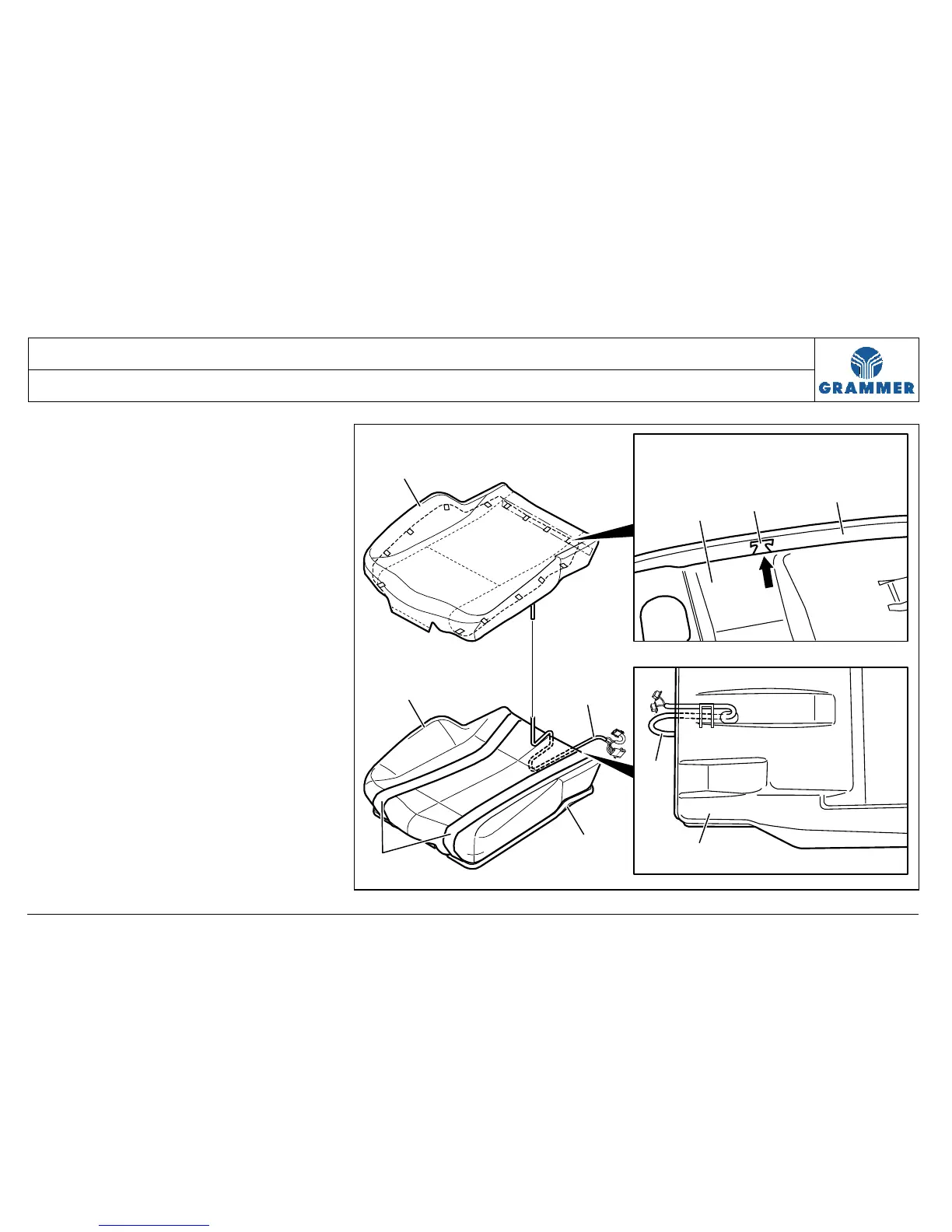

(1) Seat cushion cover
(2) Foam plastic part
(3) Cable seat cushion heater
(4) Velcro
(5) Seat plate
(6) Clamp ...................
16 each, replace
Note:
No claims for warranty can be accepted
if you install the seat cushion covers
of other manufacturers than
GRAMMER AG.
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the seat cushion and lever
for seat angle and seat depth
adjustment (Chapter 3.2).
1
2
5
3
6
5
3
1
5
4
512
