3.3.1 Seat cushion cover – removal and installation
Page 2 of 3
Removal

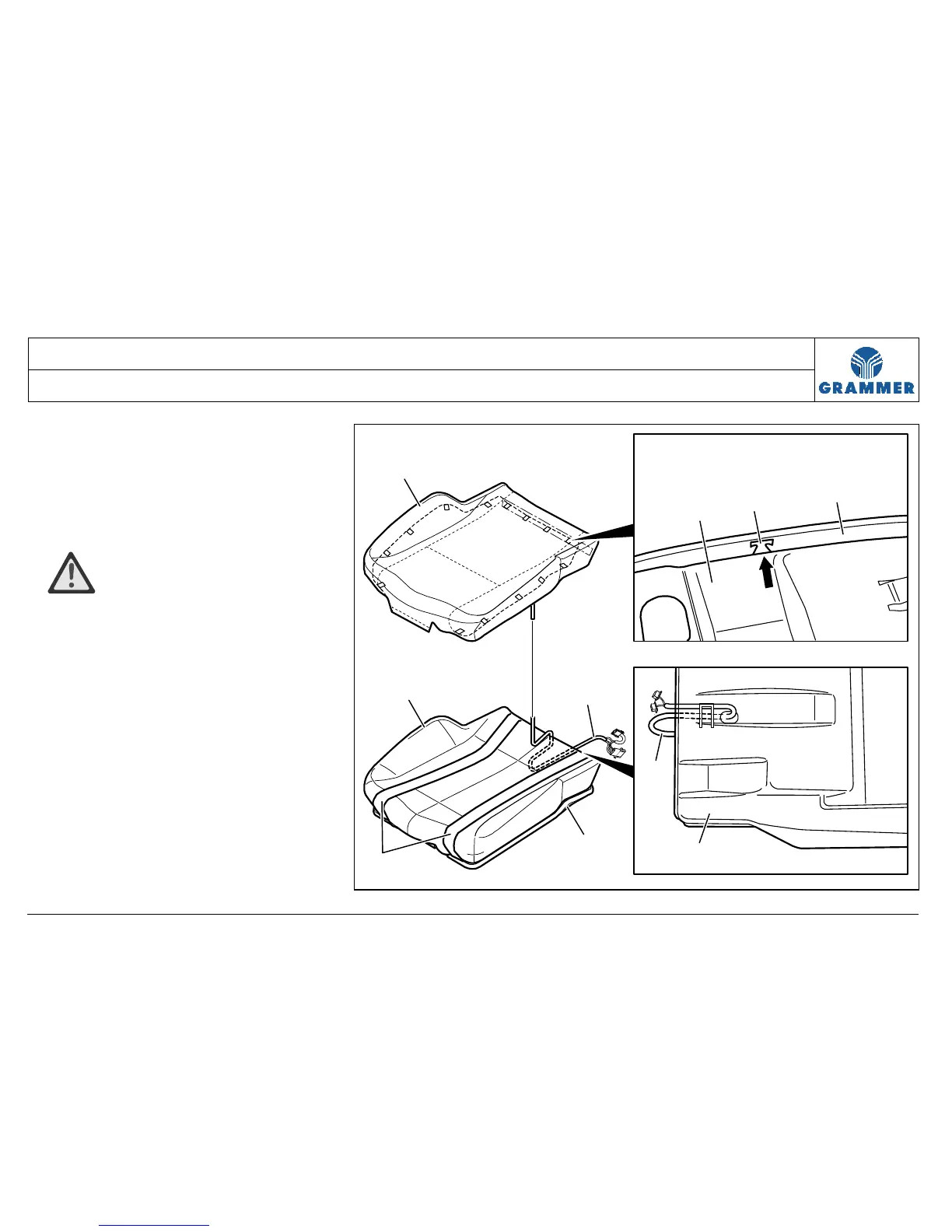

3 Mark the location of clamps (6) – 16
pcs. – and remove the seat cushion
cover (1) from the clamps (6) using a
stopping knife.
4 ATTENTION Damage!
The seat cushion cover (1) is secured
in the seat pan area with two Velcro
fasteners (4). When separating the
Velcro fasteners, make sure the
Velcros (4) are not torn out of the
foam plastic part (2).
Pull off the seat cushion cover (1)
from the foam part (2) and remove the
seat cushion heater cable (3) by
guiding it through the seat plate (5).
1
2
5
3
6
5
3
1
5
4
512
