Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

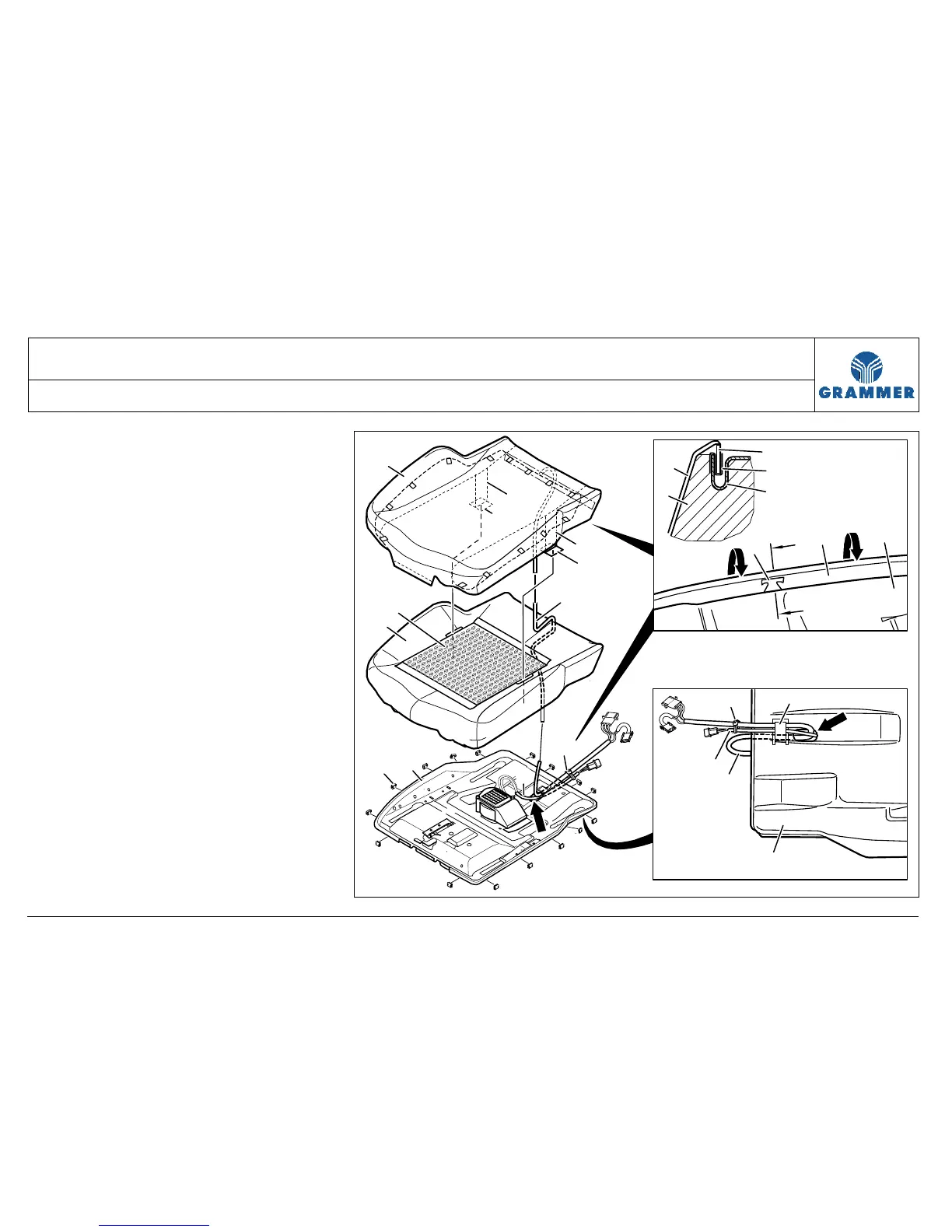

3.3.2 Seat cushion cover – removal and installation
(seat with climate control system)
Page 1 of 6
REMOVAL INSTALLATION TABLE OF CONTENTS
(1) Seat cushion cover
(2) Foam plastic part
(3) Ventilation cushion (fabric inlay)
(4) Seat plate
(5) Clamp ................... 16 each, replace
(6) Tie strap
(7) Lug
(8) Cable seat cushion heater
(9) Cable for seat fan
(10) Cable tie
(11) Slinging strap
(12) Clamping plate (at seat plate)
Note:
No claims for warranty can be accepted
if you install the seat cushion covers
of other manufacturers than
GRAMMER
AG.
A-A
A
11
4
10
10
5
4
2
7
7
6
6
3
1
8
12
8
9
4
5
5
4
11
1
2
A
2540
9
