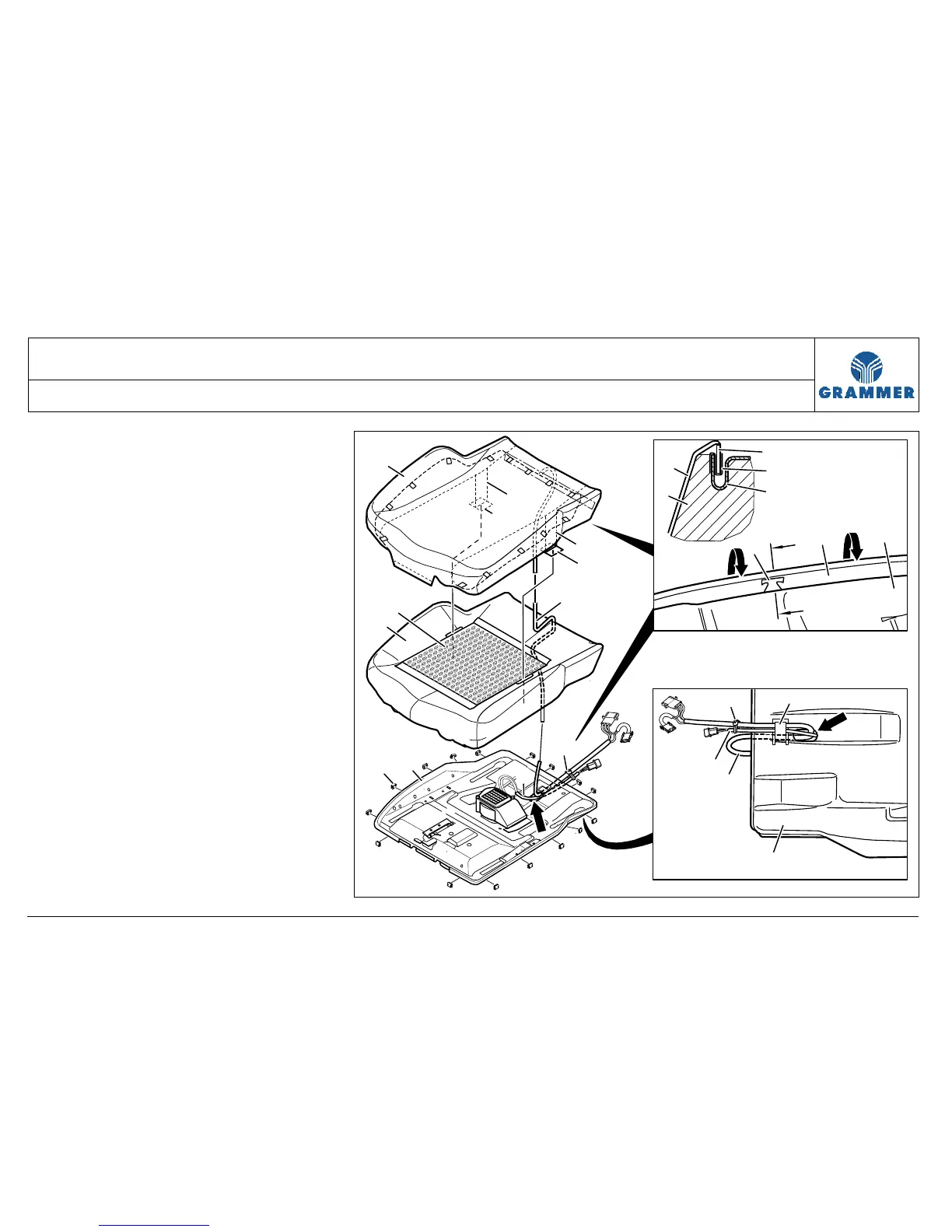

3.3.2 Seat cushion cover – removal and installation
(seat with climate control system)
Page 2 of 6
REMOVAL INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the seat cushion and lever
for seat angle and seat depth
adjustment (Chapter 3.2).
Removal
3 Mark the installation position of the 16
clamps (5) at the seat plate (4) and
seat cushion cover (1).
4 Lever out the first clamp (5) at the
front with suitable means, such as
screw driver for example, from the
revolving groove of the seat plate (4).
5 Remove all further clamps (5) one by
one at the seat plate(4).
