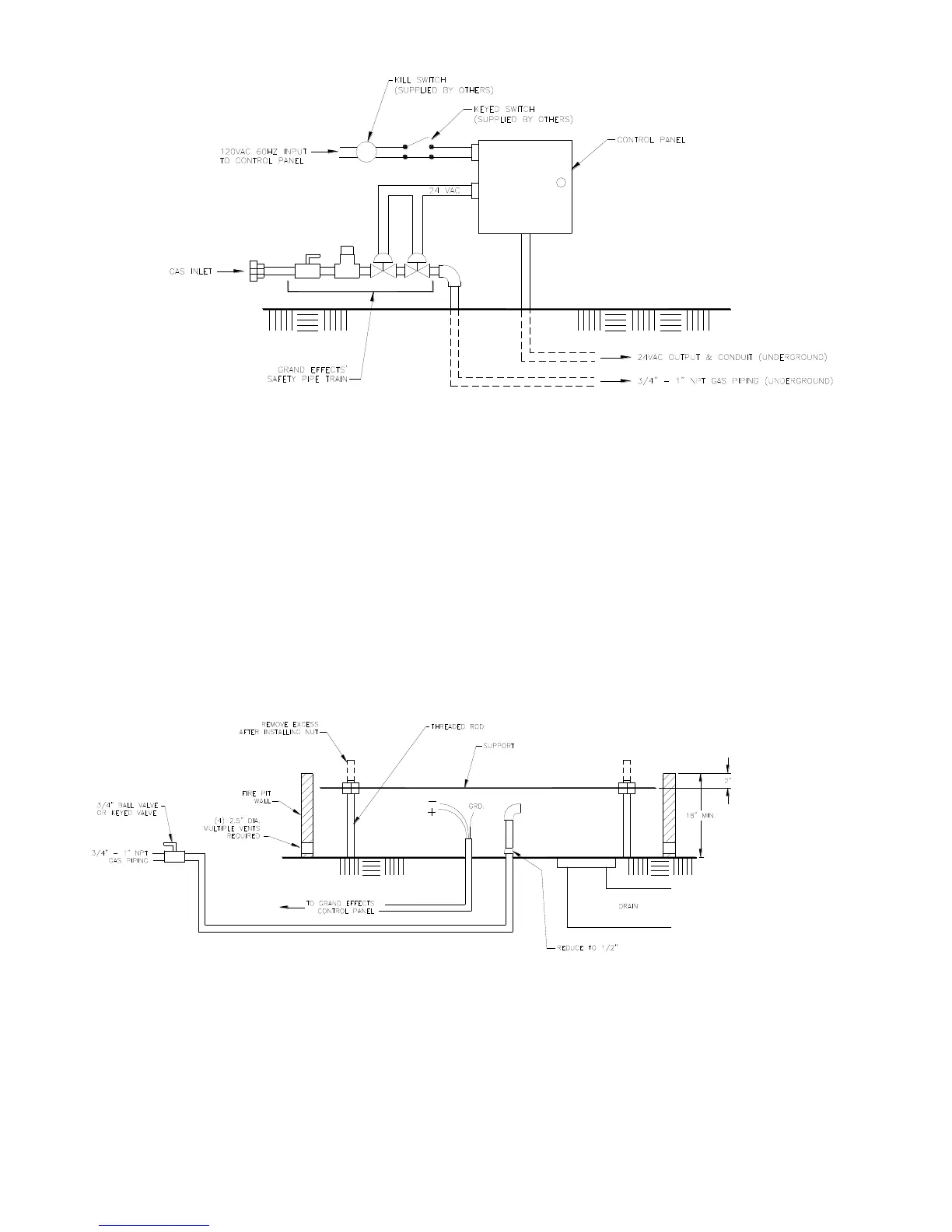

Fig. 3 (Commercial Installation)
Important: Do not kink or make sharp radius on metal gas hose. Do not come
straight up with gas hose. As shown below, a 90 gas pipe elbow must be installed on
gas line for proper installation of gas hose. If not installed with elbow as shown
below, product warranty will be void.
Fig. 4 (Natural Gas- Residential Installation)
