Grandstream Networks GDS371 Series - Page 3

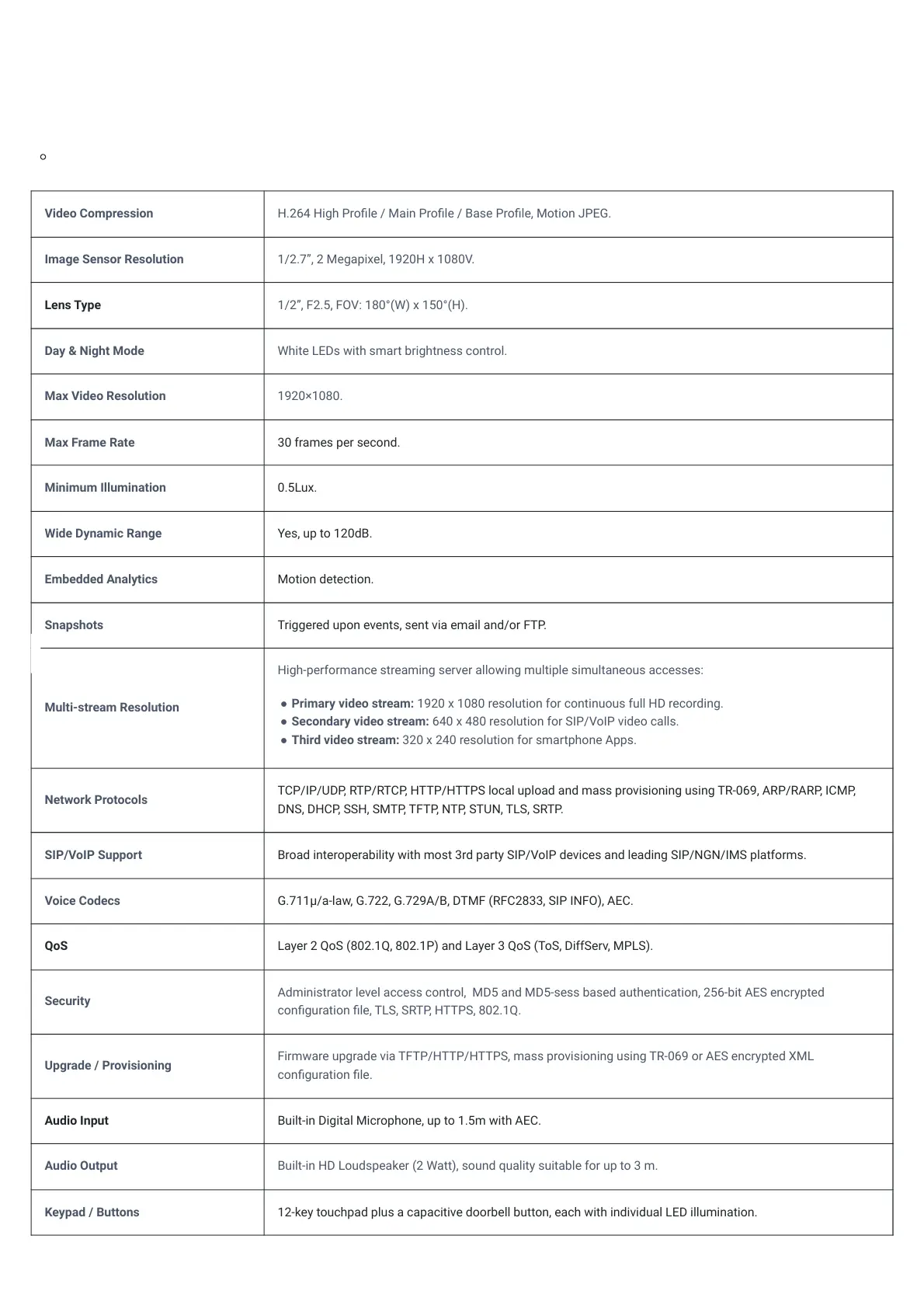

Technical Specifications
The following table resumes all the technical specifications including the protocols/standards supported, voice codecs, telephony features, and
upgrade/provisioning settings for GDS371x.
GDS3710
Video Compression H.264 High Prole / Main Prole / Base Prole, Motion JPEG.
Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V.
Lens Type 1/2”, F2.5, FOV: 180°(W) x 150°(H).
Day & Night Mode White LEDs with smart brightness control.
Max Video Resolution 1920×1080.
Max Frame Rate 30 frames per second.
Minimum Illumination 0.5Lux.
Wide Dynamic Range Yes, up to 120dB.
Embedded Analytics Motion detection.
Snapshots Triggered upon events, sent via email and/or FTP.
Multi-stream Resolution
High-performance streaming server allowing multiple simultaneous accesses:
● Primary video stream: 1920 x 1080 resolution for continuous full HD recording.
● Secondary video stream: 640 x 480 resolution for SIP/VoIP video calls.
● Third video stream: 320 x 240 resolution for smartphone Apps.
Network Protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069, ARP/RARP, ICMP,
DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP.
SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms.
Voice Codecs G.711µ/a-law, G.722, G.729A/B, DTMF (RFC2833, SIP INFO), AEC.
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS).
Security
Administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted
conguration le, TLS, SRTP, HTTPS, 802.1Q.
Upgrade / Provisioning
Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML
conguration le.
Audio Input Built-in Digital Microphone, up to 1.5m with AEC.
Audio Output Built-in HD Loudspeaker (2 Watt), sound quality suitable for up to 3 m.
Keypad / Buttons 12-key touchpad plus a capacitive doorbell button, each with individual LED illumination.
