Grandstream Networks GDS371 Series User Manual

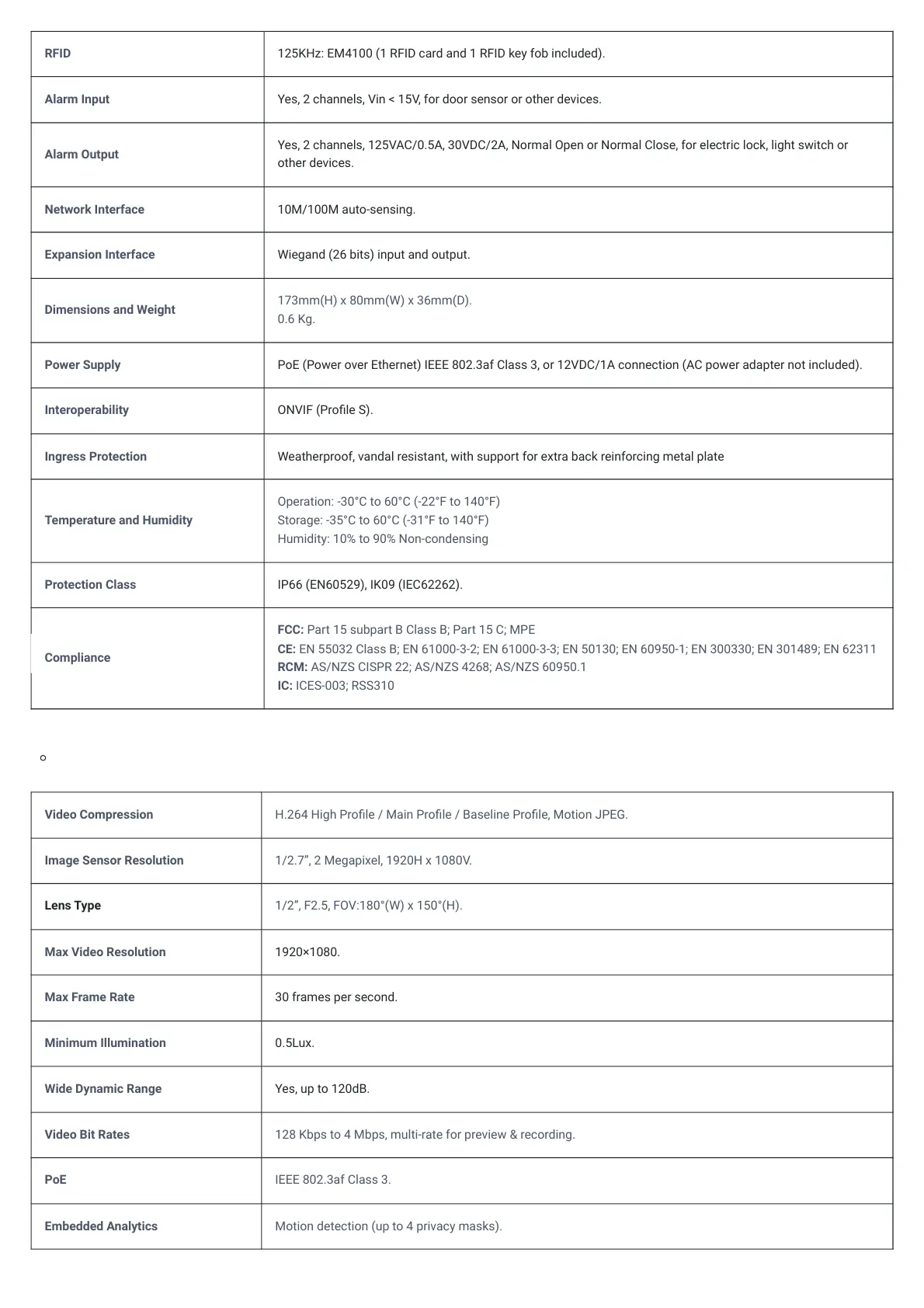

GDS3710 Technical Specifications
GDS3712
RFID 125KHz: EM4100 (1 RFID card and 1 RFID key fob included).
Alarm Input Yes, 2 channels, Vin < 15V, for door sensor or other devices.
Alarm Output
Yes, 2 channels, 125VAC/0.5A, 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or
other devices.
Network Interface 10M/100M auto-sensing.
Expansion Interface Wiegand (26 bits) input and output.
Dimensions and Weight
173mm(H) x 80mm(W) x 36mm(D).
0.6 Kg.
Power Supply PoE (Power over Ethernet) IEEE 802.3af Class 3, or 12VDC/1A connection (AC power adapter not included).
Interoperability ONVIF (Prole S).
Ingress Protection Weatherproof, vandal resistant, with support for extra back reinforcing metal plate
Temperature and Humidity
Operation: -30°C to 60°C (-22°F to 140°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity: 10% to 90% Non-condensing
Protection Class IP66 (EN60529), IK09 (IEC62262).
Compliance
FCC:Part 15 subpart B Class B; Part 15 C; MPE
CE:EN 55032 Class B; EN 61000-3-2; EN 61000-3-3; EN 50130; EN 60950-1; EN 300330; EN 301489; EN 62311
RCM:AS/NZS CISPR 22; AS/NZS 4268; AS/NZS 60950.1
IC:ICES-003; RSS310
Video Compression H.264 High Prole / Main Prole / Baseline Prole, Motion JPEG.
Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V.
Lens Type 1/2”, F2.5, FOV:180°(W) x 150°(H).
Max Video Resolution 1920×1080.
Max Frame Rate 30 frames per second.
Minimum Illumination 0.5Lux.
Wide Dynamic Range Yes, up to 120dB.
Video Bit Rates 128 Kbps to 4 Mbps, multi-rate for preview & recording.
PoE IEEE 802.3af Class 3.
Embedded Analytics Motion detection (up to 4 privacy masks).
