Grandstream Networks GDS3710 Connection & Wiring Diagrams

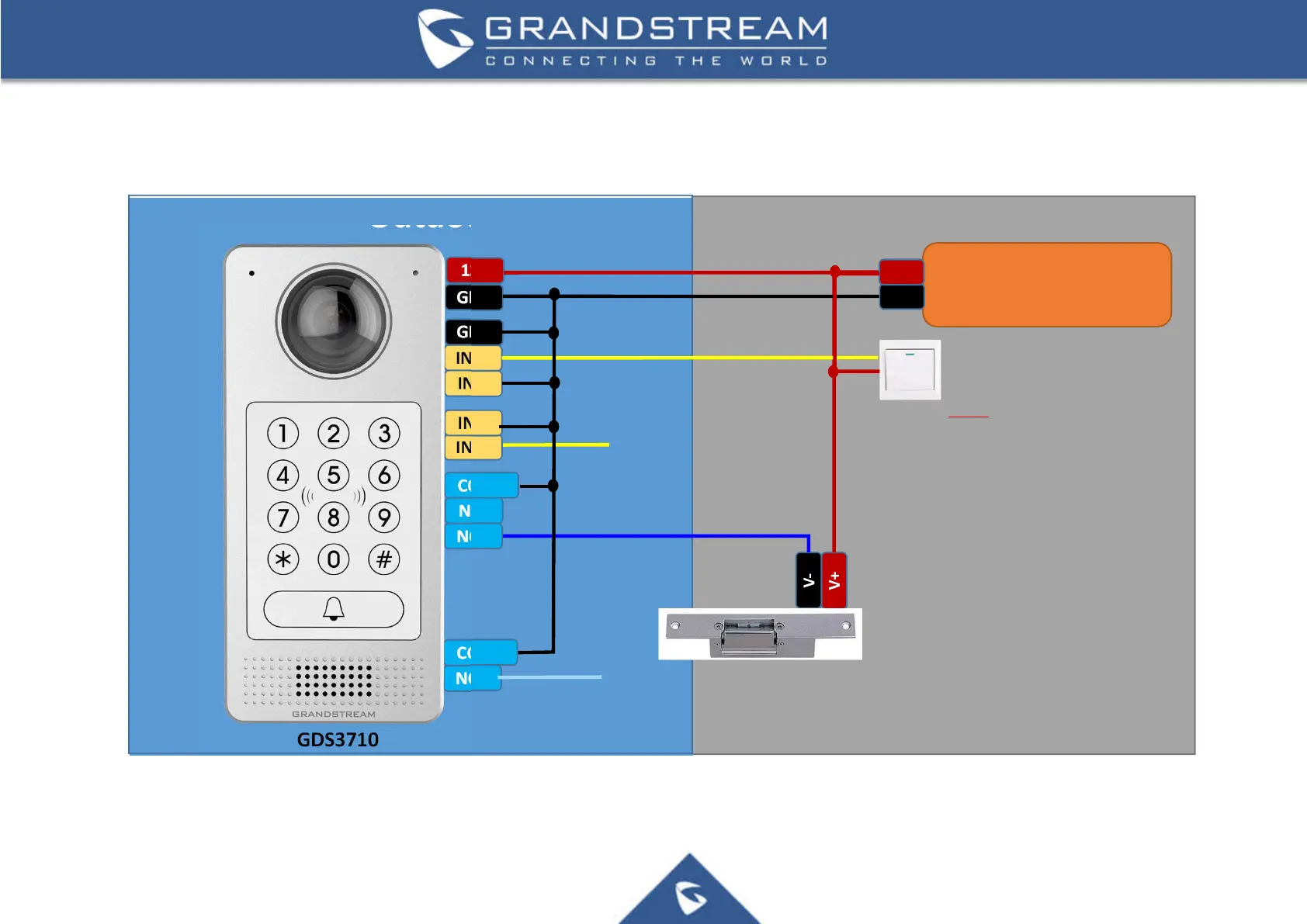

GDS3710 Connection & Wiring Diagrams ---- “Fail Secure” Electric Strike, 3
rd
Party Power Supply
12V
GND
Power Supply for Both
GDS3710 and Electric Strike:
DC 12V 2A
Note
minimum.
GDS3710
V-
V+
IN1+
IN1-
Door Lock Switch
COM2
NO2
NC2
IN2+
IN2-
“Fail Secure” Model
Electric Strike
COM1
NO1
GND
12V 1A at least for GDS3710
NOTE:
• The input voltage of Electric
Strike must be DC 12V in this
case.
• The total current of power
must refer to the max.
current of electric strike to
sum up.
• e.g.: striker need 500mA, the
total should be 1 + 0.5 =1.5A
minimum for the 3
rd
party DC
Power Supply.
Outdoors
Indoors
to protect property:
The lock remains closed if power cuts off
Oponal
Oponal
