Grandstream Networks GDS3712 Quick Installation Guide

~
5
~ ~
6
~
GDS3712GDS3712
Option A
Plug an RJ45 Ethernet cable into the (Class 3) Power
over Ethernet(PoE) switch.
Option B
Step 1:
Select an external DC12V, minimum 1A power source (not
provided). Wire correctly the “+,-” cable of the power into
the “12V, GND“ connector of the GDS3712 socket (refer to
the previous mounting page for instruction). Connect the
power source.
Step 2:
Plug an RJ45 Ethernet cable into a network switch/hub
or router.
Note:
Please refer to “Step 2” of “MOUNTING GDS3712” and
“GDS3712 WIRING TABLE“ at the end of QIG for all the wiring
and connection illustration and instructions.
GDS3712 CONFIGURATION
The GDS3712 is by default congured to obtain the IP
address from DHCP server where the unit is located.
In order to know which IP address is assigned to your GDS3712,
please use GS_Search tool as illustrated in following steps.
Note:
If no DHCP server is available, the GDS3712 default IP ad-
dress (after 5 minutes DHCP timeout) is 192.168.1.168.
Step 1: Download and install GS_Search tool:
http://www.grandstream.com/support/tools

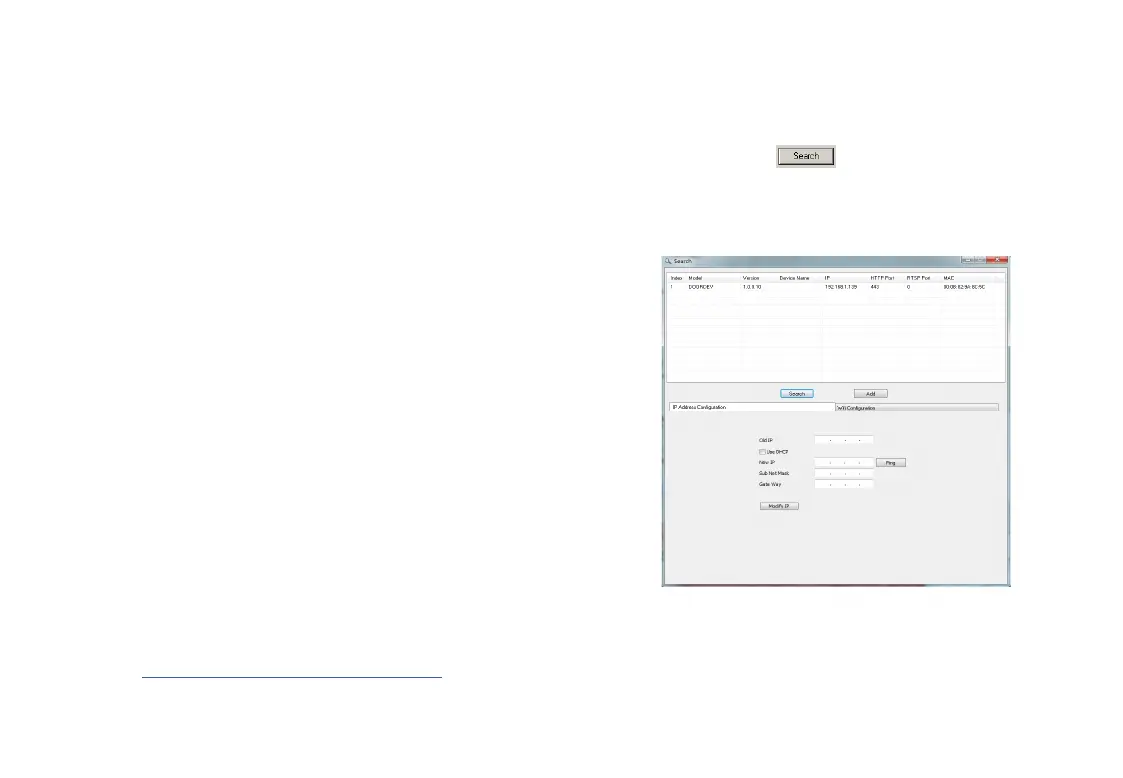

Step 2: Run the Grandstream GS_Search tool on
a computer connected to same network/
DHCP server.
Step 3: Click on button to start device
detection.
Step 4: The detected devices will appear in the
output eld as below.
Step 5: Open the web browser and type the displayed IP
address of GDS3712 with leading https:// to access the
web GUI. (For security reasons, the default web access of
GDS3712 is using HTTPS and port 443.)
