PHONE SETUP:
Installing the phone (Wall Mount *sold separately):
1. Attach the wall mount spacers to the slot for wall mount spacers on the back
of the phone.
2. Attach the phone to the wall via the wall mount hole.
3. Pull out the tab from the handset cradle (See gure below).
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall (See gure below).
Tab with
extension up
Handset Rest
Tab with
extension down
Slot for the wall
mount spacers
and phone
stand
To setup the GRP2602/GRP2602P, follow the steps below:
1. Connect the handset and main phone case with the phone cord.
2. Connect the 5V DC output plug to the power jack on the phone; plug the pow-
er adapter into an electrical outlet. If PoE switch is used in step 3 (GRP2602P
only), this step could be skipped.
3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable.
4. The LCD will display Grandstream logo. Before continuing, please wait for the
date/time display to show up.
5. Using the phone embedded web server or keypad conguration menu, you
can further congure the phone using either a static IP or DHCP.
For installing the phone on the table with the phone stand, attach the phone stand
to the bottom of the phone where there is a slot for the phone stand. (Upper half,
bottom part).
Installing the phone (Phone Stand):
PC Port
Headset Port
LAN Port
Handset Port
CONNECTING THE PHONE:
Wall mount
Wall mount
Phone Stand

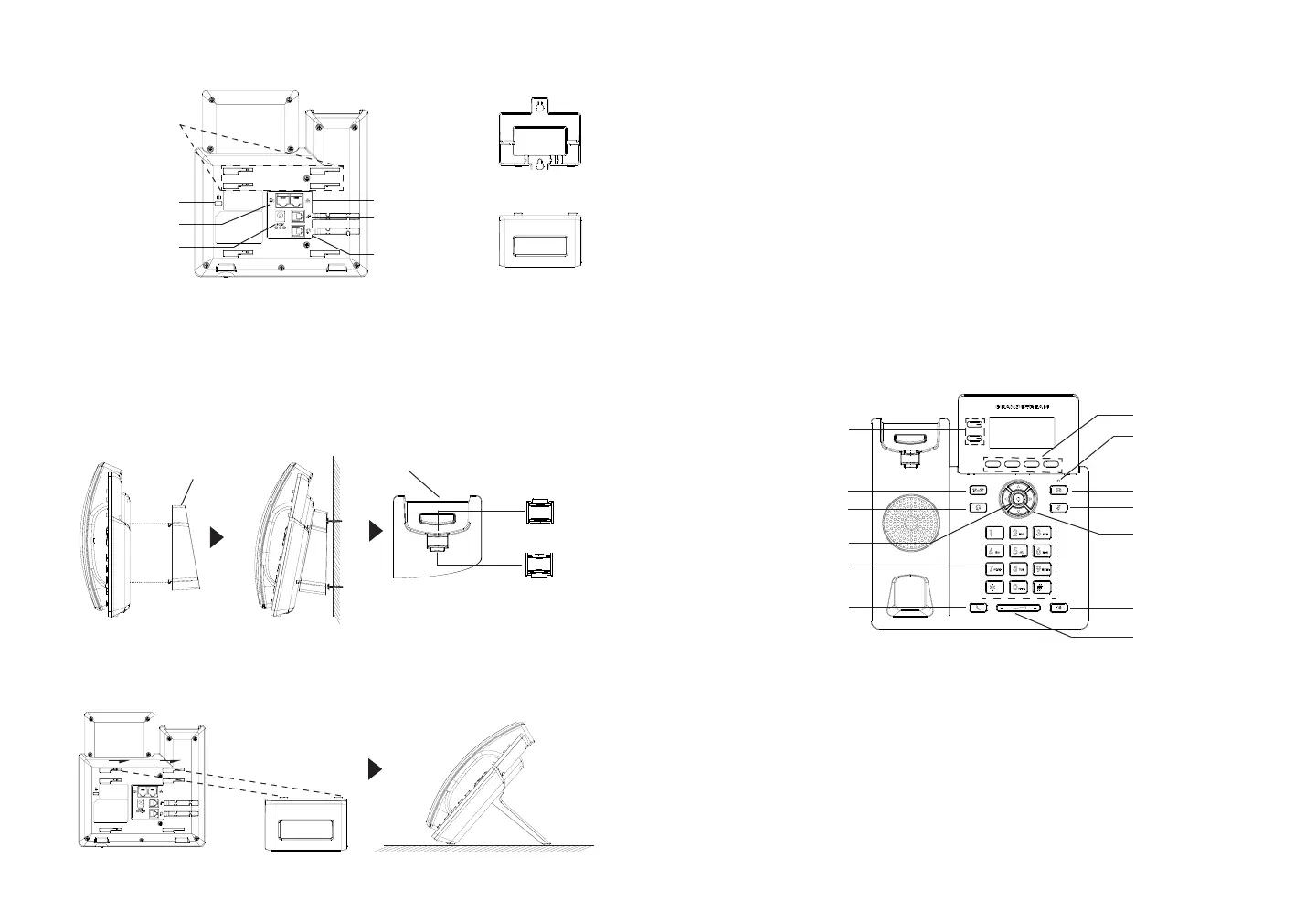

PHONE DESCRIPTION:
Kensington Lock
Power
1. Ensure your phone is powered up and connected to the Internet.
2. Press the “UP” button to display the IP address.
3. Type the phone’s IP address in your PC browser.
4. Enter admin’s username and password to access the conguration menu.
(The factory default username is “admin” while the default random password
can be found on the sticker at the back of the unit).
Congure the GRP2602/GRP2602P using a Web Browser:
PHONE CONFIGURATION:
S o f t k e y s
Mute
Send/Redial
Standard keypad
H e a d s e t
MENU/OK key
T r a n s f e r
Message
Navigation keys
Speaker
Volume
Line Keys
Message Waiting
Indicator
