Grandstream Networks GWN7000 Quick Installation Guide

OVERVIEW
The GWN7000 is a powerful enterprise-grade multi-WAN Gigabit VPN router. Ideal for the
enterprise, small-to-medium business, retail, education, hospitality and medical markets,
the GWN7000 supports comprehensive WiFi and VPN solutions that can be shared
across one or many different physical locations. It features high-performance routing and
switching power and a hardware-accelerated VPN client/server for secure inter-ofce
connectivity. To maximize network reliability, the GWN7000 supports trafc load balancing
and failover. The GWN7000 features an embedded controller and automated provisioning
master that can setup and manage up to 300+ in-network GWN series WiFi Access Points.
This can be easily operated through the product’s intuitive web browser user interface,
which also offers a central panel to monitor and control the entire network. The GWN7000
also includes an advanced 7-layer network/application monitoring capability based on DPI
(Deep Packet Inspection) technology to securely monitor allnetwork activity.
PRECAUTIONS
• Do not attempt to open, disassemble, or modify the device.
• Do not use a third party power adapter.
• Do not expose this device to temperatures out the range of 0 °C to 50 °C for operating
and -10°C to 60°C for storage.
• Do not expose this device to environments outside following humidity range: 10-90% RH
(non-condensing).
• Do not power cycle your GWN7000 during system boot up or rmware upgrade.
You may corrupt rmware images and cause the unit to malfunction.

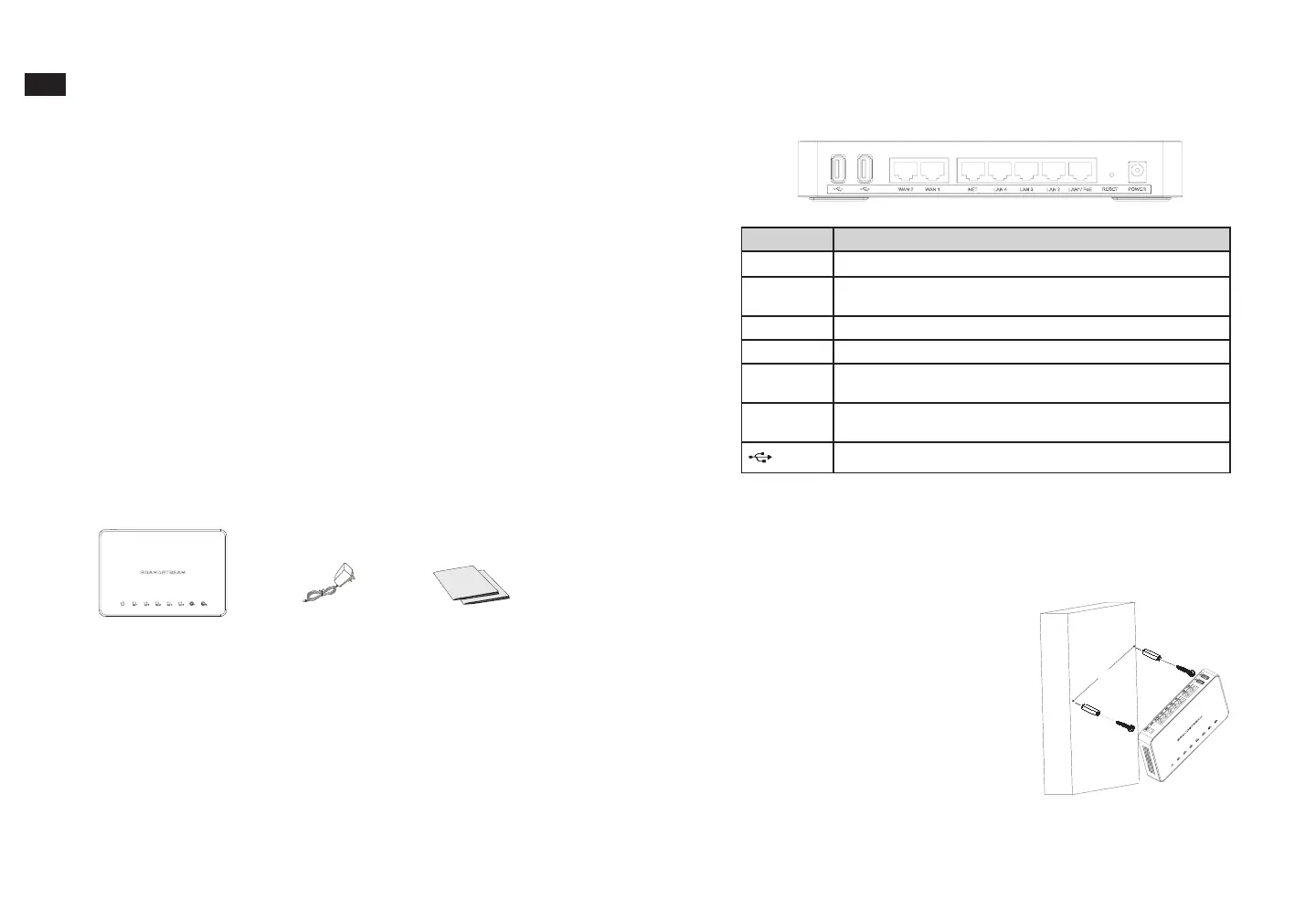

GWN7000 PORTS
GWN7000 VPN Router
1 x Quick Installation Guide
1 x GPL Statement
1 x 12V Power Adapter
Port Description
POWER Power adapter connector (DC12V, 2A)
RESET Factory reset button. Press for 7 seconds to reset factory default
settings.
LAN1/POE Ethernet RJ45 port (10/100/1000Mbps) supporting PoE+.
LAN (2,3,4) Ethernet RJ45 ports (10/100/1000Mbps).
NET Ethernet RJ45 port (10/100/1000Mbps); can be congured as
WAN, LAN or VoIP port.
WAN (1,2) Ethernet RJ45 ports (10/100/1000Mbps), to connect to a modem’s
LAN port.
2x USB 3.0 (for printer/le sharing)
HARDWARE INSTALLATION
GWN7000 can be mounted on the wall. Please refer to the following steps for the ap-
propriate installation.
15 CM
Wall
1. Use a 6 mm drill bit to drill two holes 15 cm
apart.
2. Insert the anchors into the holes. Use a screw-
driver to secure the screws to each anchor. Leave
a clearance of approximately 5 mm between each
screw head and its anchor.
3. Position the GWN router with the Ethernet
ports facing up. Place the wall-mount slots of
the GWN7000 over the screw heads on the
wall. Then slide it down to lock it into place.
Note: GWN7000 can be also mounted in a vertical
orientation.
4. Connect power and Ethernet cables (RJ45) to
the correct ports of your GWN7000.
Wall Mount
EN
PACKAGE CONTENTS
1
2
