Grandstream Networks GWN7660 User Manual

~3~
~4~

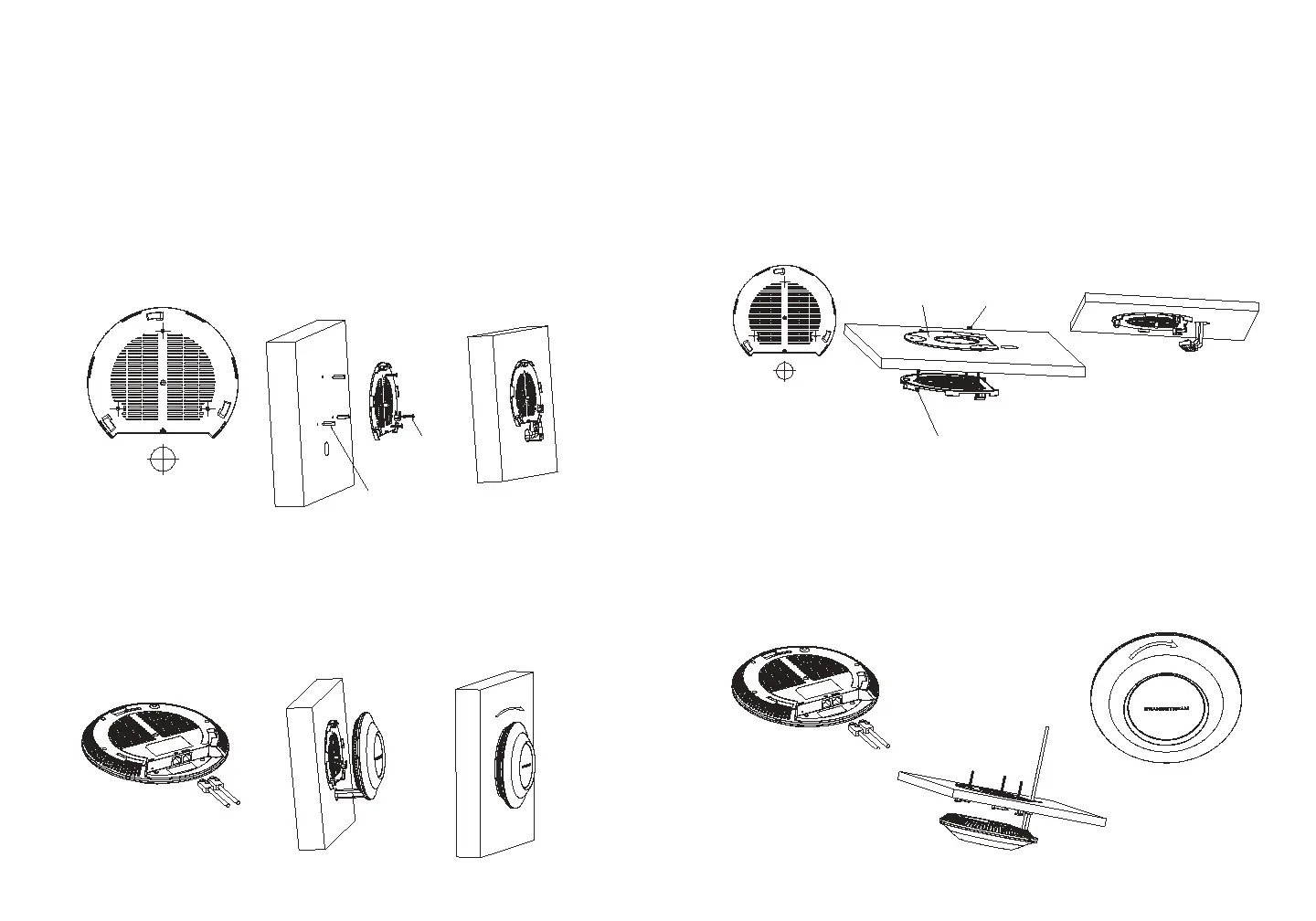

Ceiling Mount
1. Position the mounting bracket at the desired location on the wall with
the arrow pointing up.
2. Use a pencil to mark the four mounting holes (screw holes DIA
5.5mm, reticle hole DIA 25mm).
3. If your Ethernet cable feeds through the wall, then cut or drill a circle
approximately 18mm in diameter.
4. Insert screw anchors into the 5.5mm holes. Attach the mounting
bracket to the wall by inserting the screws into the anchors.
1. Remove the ceiling tile.
2. Place the ceiling backing plate in the center of the ceiling tile and
mark the mounting screw holes (screw holes DIA 5.5mm, reticle
hole DIA 25mm).
3. Insert the screws through the mounting bracket.
1
2
3
4
5
1
2
3
6
M3.0x50 screw
M3 nut
Ceiling
Mounting
Note: Ceiling mounting is recommended for optimal coverage perfor-
mance.
Wall
PA3.5x20
Screw
Plastic Expan-
sion Bolt
Wall Mount
4
5
6
5. Connect the ethernet cable (RJ45) to the correct ports of your
GWN7660.
6. Align the arrow on the GWN7660 AP with the arrow on the locking tab
of the mounting bracket and ensure that your GWN is rmly seated
on the mounting bracket.
7. Turn the GWN clockwise until it locks into place and ts the locking
tab.
4. Connect th Ethernet cable (RJ45) to the correct ports of your
GWN7660.
5. Align the arrow on the GWN7660 with the arrow on the locking tab of
the mounting bracket and ensure that your GWN is rmly seated on
the mounting bracket and connect the network and power cables.
6. Turn the GWN clockwise until it locks into place and ts the locking
tab.

Grandstream Networks GWN7660 Specifications

General

Brand	Grandstream Networks
Model	GWN7660
Category	Wireless Access Point
Language	English
