6.2 Control panel menu
Detailed below is a basic explanation of the top menu structure. For more information on
the whole menu structure please refer to the Help->Help Content->Loggers within
SquirrelView.

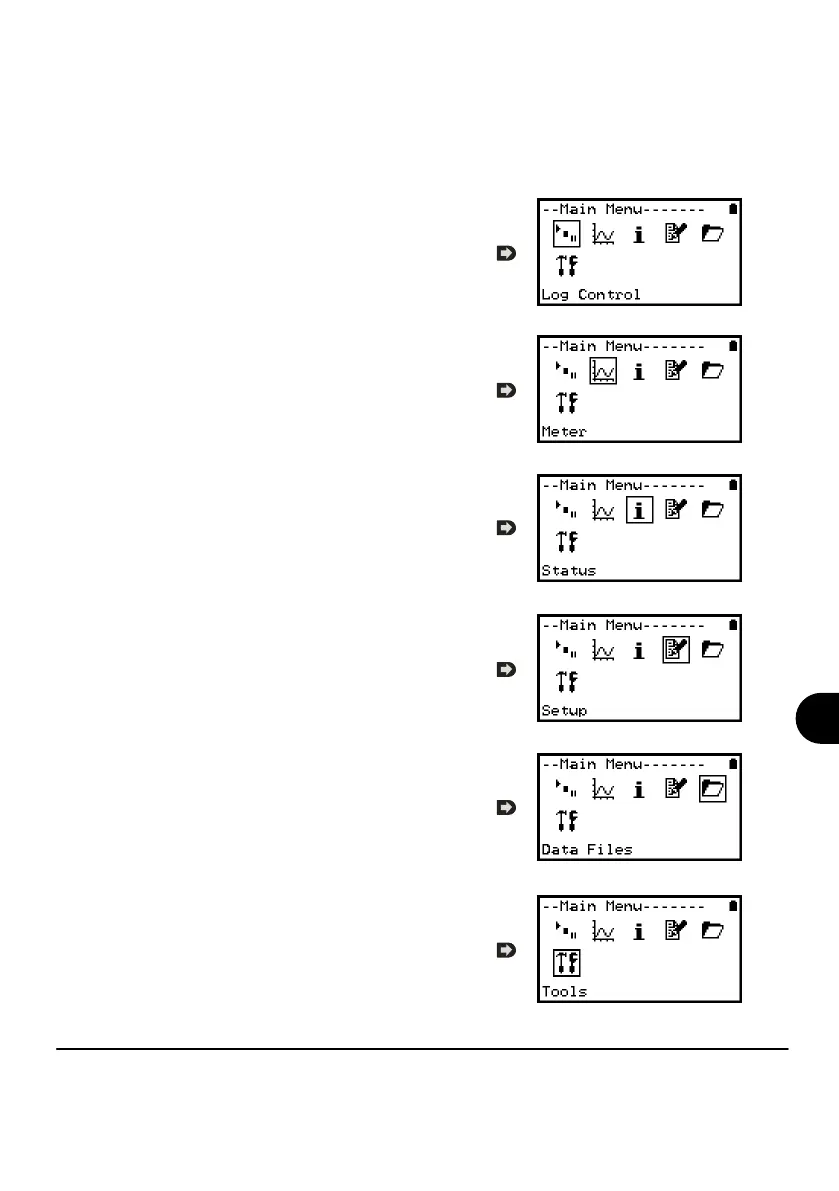

6.2.1 Log Control
In this menu you can Arm (activate), Pause
and Continue or Disarm (deactivate) the
logger.
6.2.2 Meter
Here you can view each channel in Real
Time (at 1-2Hz). Use the Enter key for a
graphical view of a channel.
6.2.3 Status
The Status menu gives you access to
information relating to the logger such as
available memory and power supply
voltage. You can also override the alarm
outputs from here.
6.2.4 Setup
This contains menus for setting up
Language, Time & Date, basic Channel
Setup, storing and recalling setups and
delayed starts.
See 6.3 for more details on basic setup
6.2.5 Data Files
This menu allows you to copy data files to
an external memory card (if fitted) and
delete the data files held within the
logger’s memory.
6.2.6 Tools
The Tools menu contains maintenance
type functions such as querying the
software version or IP address of the
logger, performing a self test and resetting
the logger.
