STEP 2
A
B

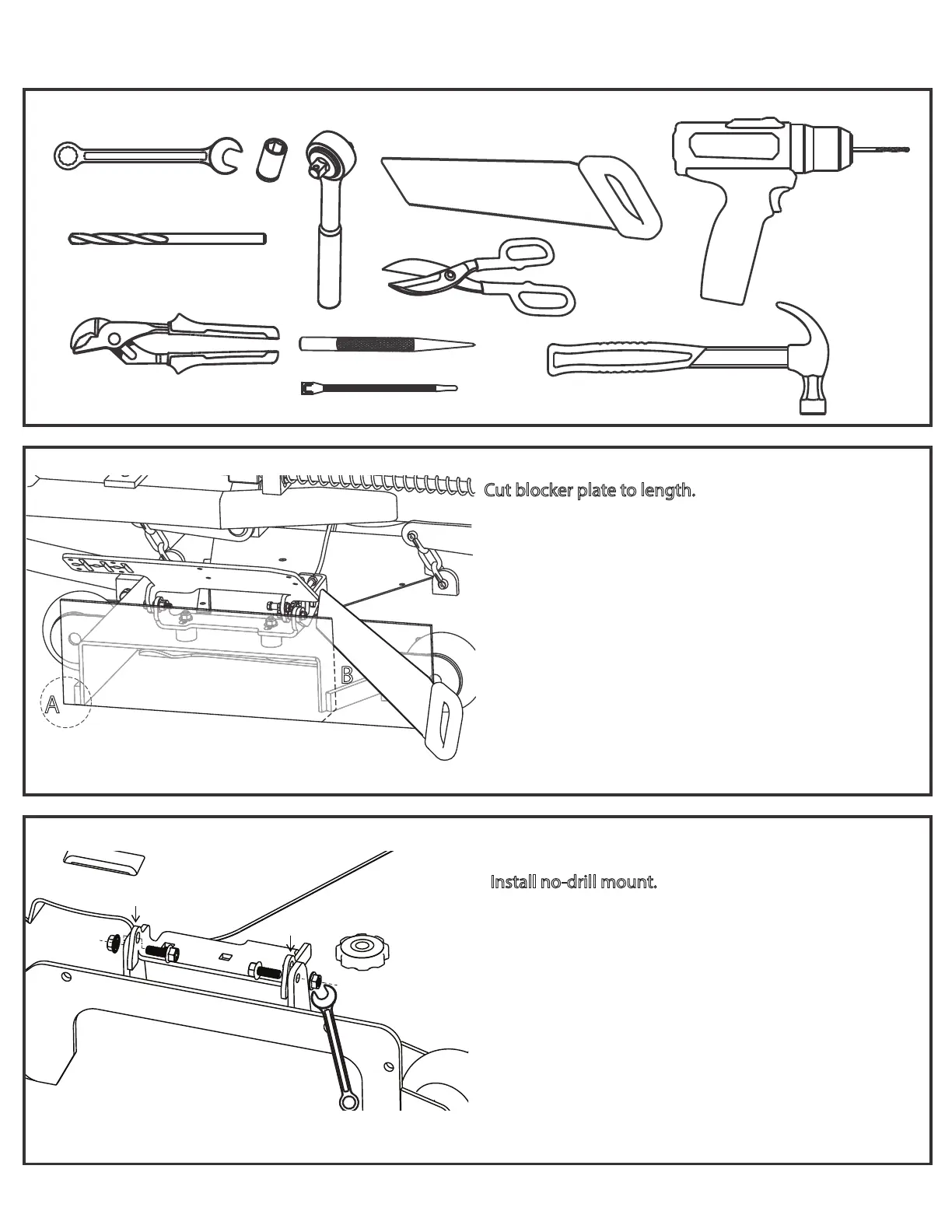

Cut blocker plate to length.
A) Position blocker plate front to back on discharge with
minimum ½ inch overhang at rear. Blocker plate
should be even with bottom of deck at rear of
discharge. Level top edge to be parallel to top of deck.
B) Mark and cut the blocker plate length leaving a
minimum of 1/2” overhang front and back. Trim and
round corners for clean look.
GrassFlap 412T Assembly Instructions
GrassFlap.com Phone: (502)594-3546 3
STEP 3
Install no-drill mount.
Install no-drill mount using 3/8-16 x 1” hex bolts
and nuts as shown.
Tools List
Wrench & Socket - 7/16”, 1/2”, 9/16”
Drill Bit - 1/4”, 11/32”, 13/32”
Pliers
Center Punch
Zip Ties
Saw
Snips
Hammer
Drill
