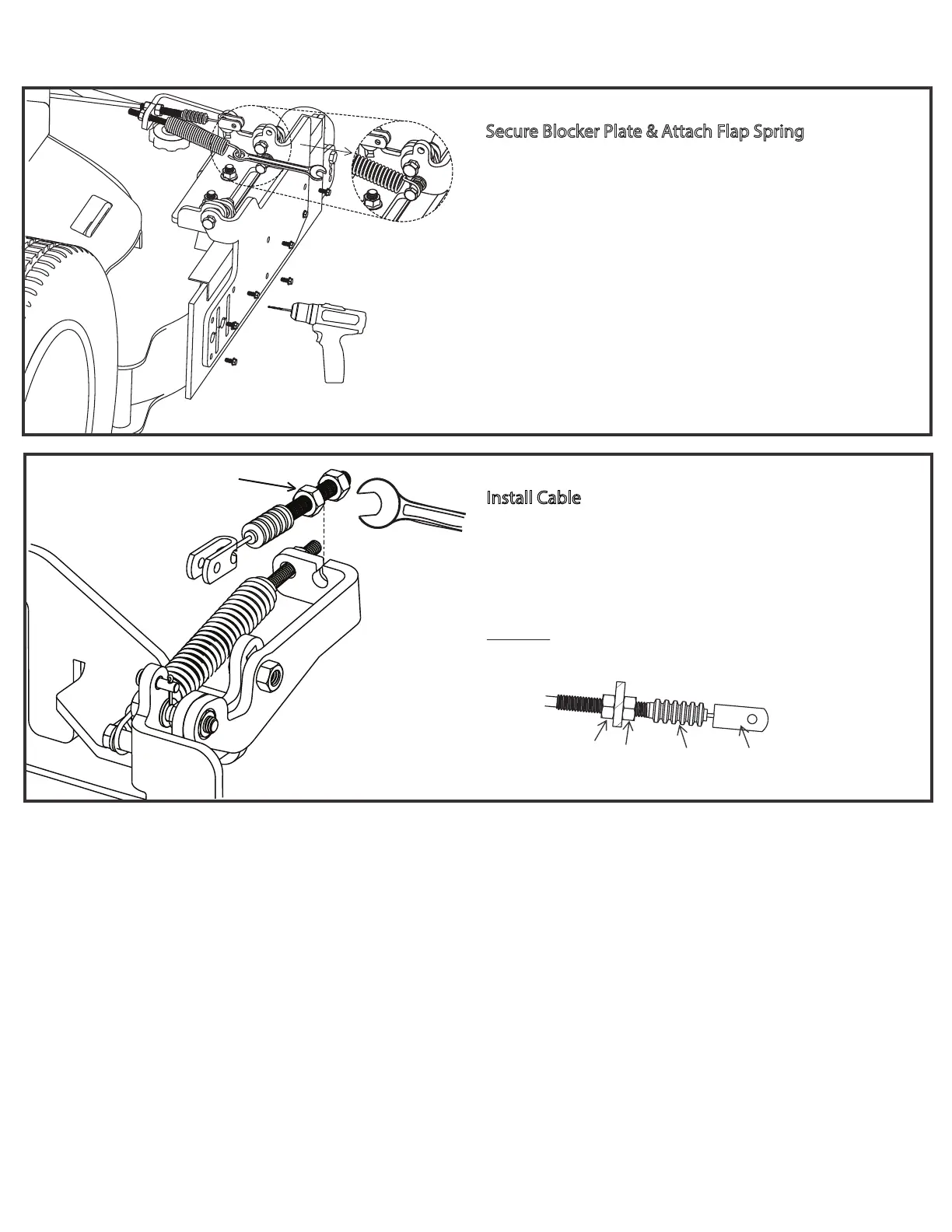

STEP 7
Secure Blocker Plate & Attach Flap Spring
A) Drill and install six remaining tee nuts and bolts to
secure blocker plate.
B) Use a small box end wrench to hook spring over
post on hinge assembly.
C) If needed, reposition ap to make good seal. Tighten
ap mounting bolts
GrassFlap 412T Assembly Instructions
GrassFlap.com Phone: (502)594-3546 5
STEP 8
Install Cable
A) Slip rubber boot o tting by pulling at base of boot.
Remove Nut 1 and slip cable wire into slot.
B) Put cable tting into hole and snug jam nuts leaving
minimum thread showing between Nut 1 and
rubber boot.
DO NOT connect clevis to ap at this time.
DO NOT OVERTIGHTEN NUTS.
Nut 1
BootNut 1 Fixed Clevis
Nut 2
To Next Page
