GrassFlap Cable Installation

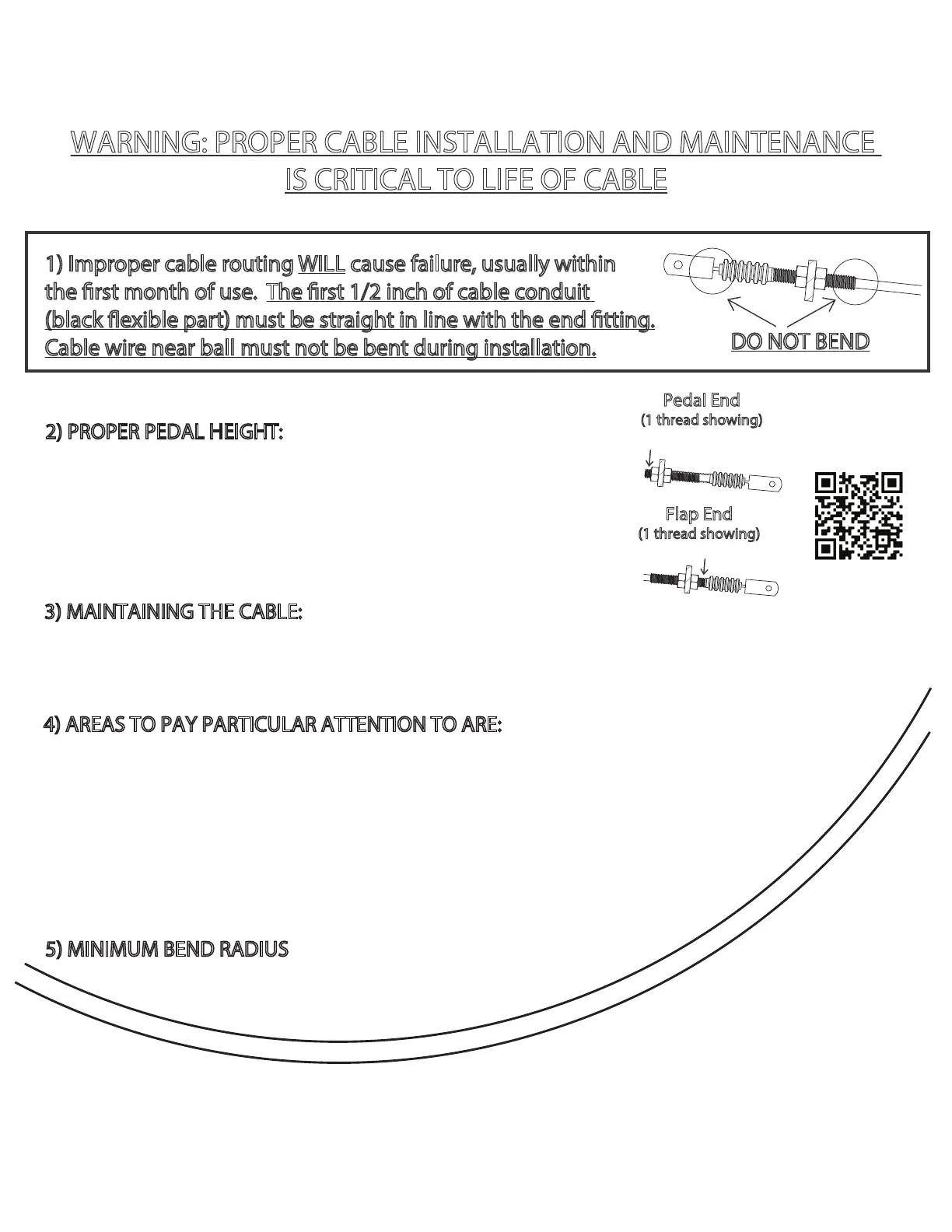

WARNING: PROPER CABLE INSTALLATION AND MAINTENANCE
IS CRITICAL TO LIFE OF CABLE
4) AREAS TO PAY PARTICULAR ATTENTION TO ARE:
1. Do not bend cable wire.
2. Make certain the cable is not in a bind when the deck is raised either manually
or when mowing.
3. Leave enough slack where the cable is tied to mower to keep out of the belts
for the deck to raise and lower without straining the cable.
4. Avoid direct heat on cable, do not route near muer
5. Maintain recommended bend radius of 6 inches for all bends.
3) MAINTAINING THE CABLE:
1. Be sure the rubber boot is in place to keep dirt and water out of cable.
2) PROPER PEDAL HEIGHT:
1. Adjust pedal height so pedal bottoms out with full pressure to
prevent cable from carrying full weight of operator. Start with
cable tting as shown - adjust pedal end to raise pedal, adjust
ap end to lower pedal. Verify pedal height with ap in
balance (half open) position.
DO NOT BEND
1) Improper cable routing WILL cause failure, usually within
the rst month of use. The rst 1/2 inch of cable conduit
(black exible part) must be straight in line with the end tting.
Cable wire near ball must not be bent during installation.
R
e
f
e
r
e
n
c
e
6
”
r
a
d
i
u
s
f
o
r
c
a
b
l
e
r
o
u
t
i
n
g
.
5) MINIMUM BEND RADIUS
GrassFlap.com Phone: (502)594-3546 7
How to set
pedal height:
Pedal End
(1 thread showing)
Flap End
(1 thread showing)
this side
this side
