GrassFlap.com Phone: (502)594-3546 8
SE Pedal
SEL Pedal
Step 4
Step 5
Step 2
Position removable clevis onto cable ball.
Step 1
Pull rubber boot o of cable tting and spin nut 1
o of cable tting. Spin nut 2 onto tting so one
thread is showing.

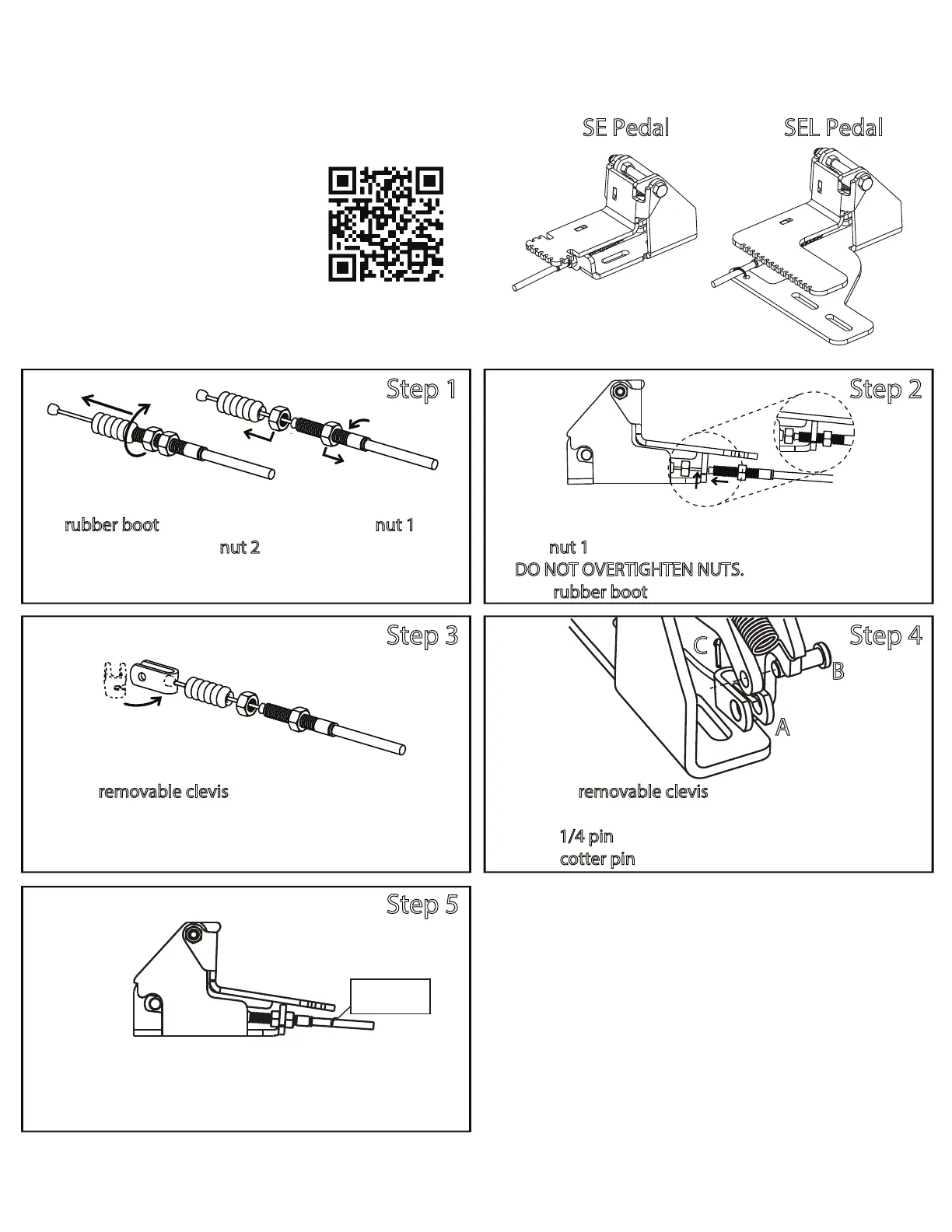

SE & SEL Pedal Cable Installation
1 thread
Nut 1
Nut 2
For video showing
how to install cable
on pedal scan using
phone camera.
Secure with
cable tie
A) Once pedal is installed on mower attach cable clamp
or zip tie to secure cable.
B) Verify everything is in place and secure.
A) Position removable clevis
on pedal with clevis slot
on cut out side of pedal.
B) Insert 1/4 pin
with head on same side as clevis slot.
C) Insert cotter pin
and wrap around pin to secure.
C
A
B
A) Slip cable wire into slot.
B) Spin nut 1
onto tting to secure cable to pedal.
DO NOT OVERTIGHTEN NUTS.
C) Push rubber boot back onto tting.
Step 3
