of the transmitter. Please push gently and carefully!
Bundle the cables of the Kingpad with the existing switch cables
in the transmitter.
Both Kinkpads are plugged to the ZH/XH connectors. This can be
fixed centrally by means of an adhesive pad. The adapter is plug-
ged into the ZH input.
The installation of the hardware is complete.

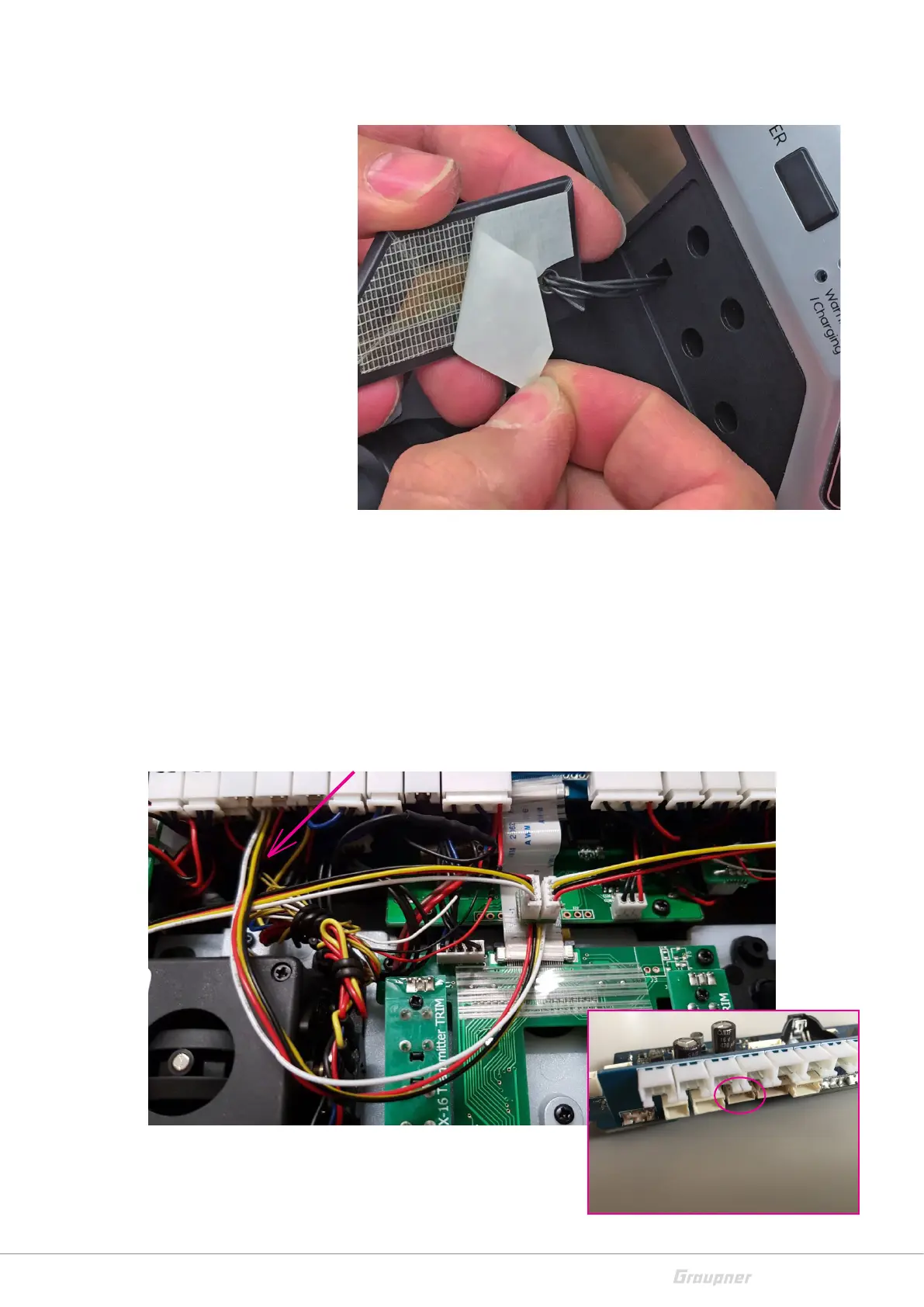

The ZH slot for the adapter is located on the lower right side of
the channel-port board.
