GRAUPNER Kingpad mc-edition mc-26

12 / 16
3974.2_MP_V1

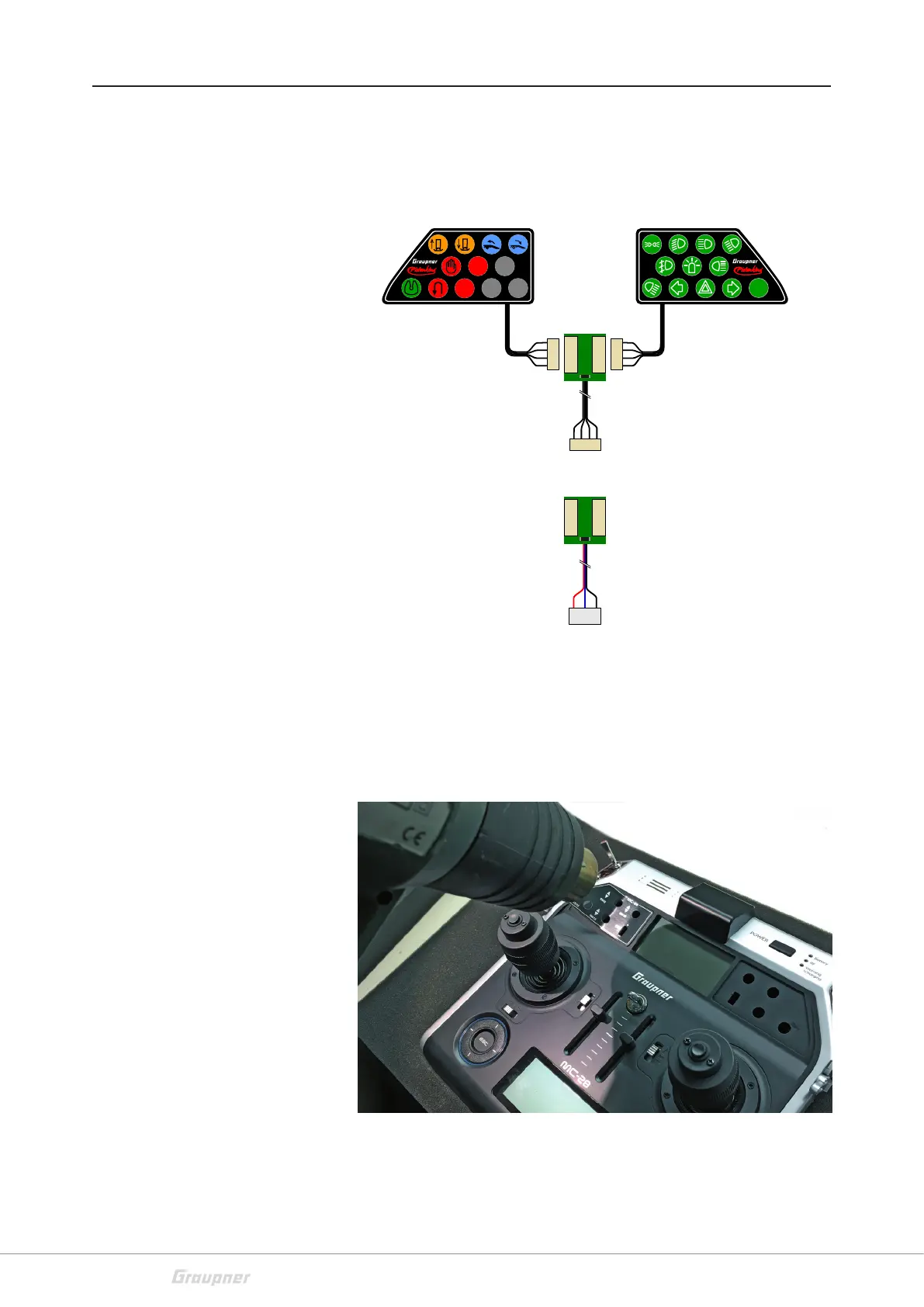

Installation / Connection
Procedure: For the use the Adapter No.3974.3 or No.3974.4 must
be switched between the pads.
S
1
1
1
1
+
F
1
-
F
2
F
3
ZH
UVR/XH
S
+
-
S
F
21
UVR/XH
Kingpad Licht und Funktion
Adapter MC-26/28
Adapter MC-16/20
Kingpad MC-32
3974.1
3974.2
3974.3
3974.4
3974.32
 First, remove the built-in switches and the aluminium trim board.
 In this case proceed carefully and cautiously with a heat gun.
 With the mc-28 4d, the two blind plugs on the front sides can be
replaced with switches of your choice. There are enough free
slots available in the transmitter.
 Now the cables and plugs are led through the hole of the former
Ctl 6 switch.
 Now remove the protective foil and place the pad in the recess
